Wide Input 12V/24V to 5V 40A 200W DC to DC Converter

The WEHO WH-C12240540 is a robust DC-DC buck converter engineered to deliver 200W of power at 40A from a wide 9V-32VDC input. Converting to a precise 5VDC output, it features an efficient 94% conversion rate, significantly reducing thermal levels during operation. This module is housed in a $100\times80\times38mm$ aluminum chassis that is fully sealed and waterproof, ensuring reliability in industrial or automotive environments. Safety is prioritized with an auto-recovering over-current protection system and dedicated short-circuit safeguards. With a precision 1% voltage tolerance and a long-term reliability of over 100,000 hours, it is a premier choice for high-power 5V needs across diverse voltage infrastructures.
Email: [email protected]
Our professionals will respond to you as soon as possible.

Request A Quote

Description

Summary
Rated output: power 200W
Input voltage: 12/24VDC
Wire Length: 160mm±10mm

General specification

Model	WH-C12240540
Rated Output Power (W)	200W
Rated input voltage(V)	12-24VDC
Rated output voltage(V)	5VDC
Input voltage range(V)	9V-32VDC
No-load power consumption(W)	< 0.3W
Efficiency	94%
Output voltage(V)	5VDC
Output current (A)	40A
Voltage tolerance	1%
Load regulation	3%
Wave (MVP-p)	100mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ
Over current protection	In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears.
Short circuit protection	Equivalent to a maximum current of 18A and an output voltage of 0V
Input-output	Non-isolated
Waterproof	Fully sealed and waterproof

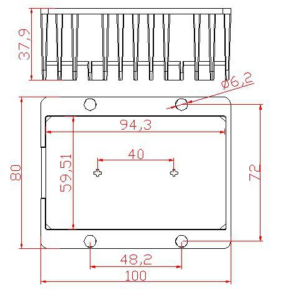

Dimension	100×80×38mm
N.W.	500g
Cooling method	Natural Method
Rated temperature rise (℃)	45℃
Reliability	>100000h
Wire indicator	Input positive (red), input output negative (black), output positive (yellow), lead length=160mm ± 10mm
