| Model | XLG-400-24 | XLG-400-36 | XLG-400-48 |
| DC output voltage | 24V | 36V | 48V |
| Rated output current | 16.5A | 11A | 8.3A |
| Current range | 0~16.5A | 0~11A | 0~8.3A |
| Output power | 396W | 396W | 398.4W |
| Wave and noise | 180mVp-p | 200mVp-p | 220mVp-p |
| Voltage accuracy | ± 3% | ± 2% | ± 2% |
| Line regulation | ± 0.5% | ± 0.5% | ± 0.5% |
| Load regulation | ± 2% | ± 0.5% | ± 0.5% |
| Start, rise, hold time | 200ms，30ms，20ms/230VAC (at full load) | ||
| Input voltage range | 180 ~264VAC，235 ~373VDC | ||
| Frequency range | 47 ~ 63Hz | ||
| AC input current | 4.0A/230VAC | ||
| Efficiency | 92.3% | 93.0% | 94.0% |
| Impulse current | Cold start current 45A/230VAC | ||
| Leakage current | <2mA/240VAC | ||
| Overcurrent protection | 95%~108% of the rated output current starts overcurrent limit， recover automatically after abnormal conditions are removed |
||
| Short circuit protection | Protection mode: Hiccup mode: recover automatically normal output after abnormal conditions are removed | ||
| Overvoltage protection | 115%~ 135% of rated output voltage startup overvoltage protection | ||
| Protection mode: Hiccup mode: recover automatically normal output after abnormal conditions are removed | |||
| Over temperature protection | 95℃ ±10℃ (JK1 is next to the transformer/MOS tube surface detection) | ||
| Protection mode: Turn Off the output voltage, and the normal output can be automatically restored after the temperature drops |
|||
| Working temperature | -20℃~ +60℃ | ||
| Working humidity | 20% ～90% RH, non condensing | ||
| Storage temperature and humidity | -40℃~ +85℃；10% ～95% RH，non condensing | ||
| Seismic resistance | 10~500Hz,，3G 12min/ 1 cycle，X, Y, Z axes，duration 60 minutes | ||
| Pressure resistance | I/P~O/P：1.5KVAC I/P~FG：1.5KVAC O/P~FG：0.5KVAC | ||
| Isolation resistance | I/P~O/P，I/P~FG，O/P~FG: 100M Ohms/500VDC/25℃/70%RH | ||
| Safety standard | Compliance to UL60950-1，TUV EN60950-1 | ||
| Electromagnetic compatibility emission | Compliance to EN55022 Class A | ||
| Electromagnetic compatibility immunity | Compliance to EN55024 | ||

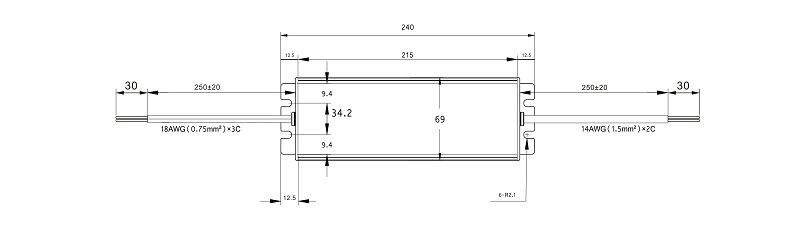

| Dimension | 240*69*43mm (L*W*H) | ||
| Packing | 1.26kg/16pcs/21.5kg/0.026 cubic meters | ||

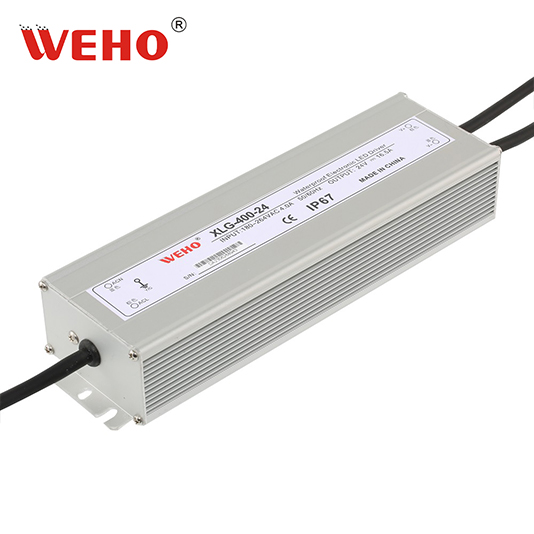

400W LED Driver AC 110V 220V To DC 24V 36V 48V Constant Voltage Waterproof IP67 Switching Power Supply
XLG-400W series is a waterproof AC DC LED drive power supply. It adopts fanless design and can work in the cabinet temperature range of -20℃ to + 60℃ under natural air cooling and heat dissipation, with 105℃ long-life aluminum electrolytic capacitor built in.
The XLG-400W has complete protection functions (short circuit/overload/overvoltage/overtemperature protection) and anti -5G vibration capabilities. It complies with safety regulations such as UL1012 and EN60950-1, and can meet the energy-saving needs of the new generation of LED lighting. LED lighting provides a cost-effective solution.
If you have any questions, please do not hesitate to contact us at Email: [email protected]
