AC to DC DIN Rail Power Supply 60W 5V 12V 24V 48V Ultra Slim Step Shape DIN Rail HDR-60
The WEHO HDR-60 is a DIN-rail AC/DC power supply series. Input voltage: 85–264VAC or 120–370VDC; AC frequency: 47–63Hz. DC output options are 5V, 12V, 24V and 48V. Operating temperature: -20°C to +70°C. Output capability depends on the selected model and operating conditions; refer to the applicable derating information. If you have any questions, please do not hesitate to contact us at Email: [email protected]
- Description
| Model | HDR-60-5 | HDR-60-12 | HDR-60-24 | HDR-60-48 |
| DC Output Voltage | 5V 0~6.5A | 12V 0~4.5A | 24V 0~2.5A | 48V 0~1.25A |
| Wave And Noise | 80mVp-p | 120mVp-p | 150mVp-p | 240mVp-p |
| Inlet Wire Stability | ±1% | ±1% | ±1% | ±1% |
| Load Stability | ±1% | ±1% | ±1% | ±1% |
| Efficiency | 82% | 85% | 88% | 88% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Input Voltage Range | 85~264VAC, 120~370VDC, 47~63Hz | |||
| Impact Current | Cold-start inrush current: 30A at 115VAC; 60A at 230VAC. | |||
| Overload Protection | 105%–150%; output cutoff; automatic recovery. | |||
| Other Protection | Overcurrent protection; Short-circuit protection | |||
| Setup, Rise, Hold Up Time | 1500ms, 80ms/230VAC; 1500ms, 80ms/115VAC (at full load). | |||
| Withstand Voltage | I/P–O/P: 1.5kV; I/P–FG: 1.5kV; O/P–FG: 0.5kV; duration: 1 minute. | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ | |||
| Working Temperature | -20°C to +70°C; refer to the applicable derating information. | |||

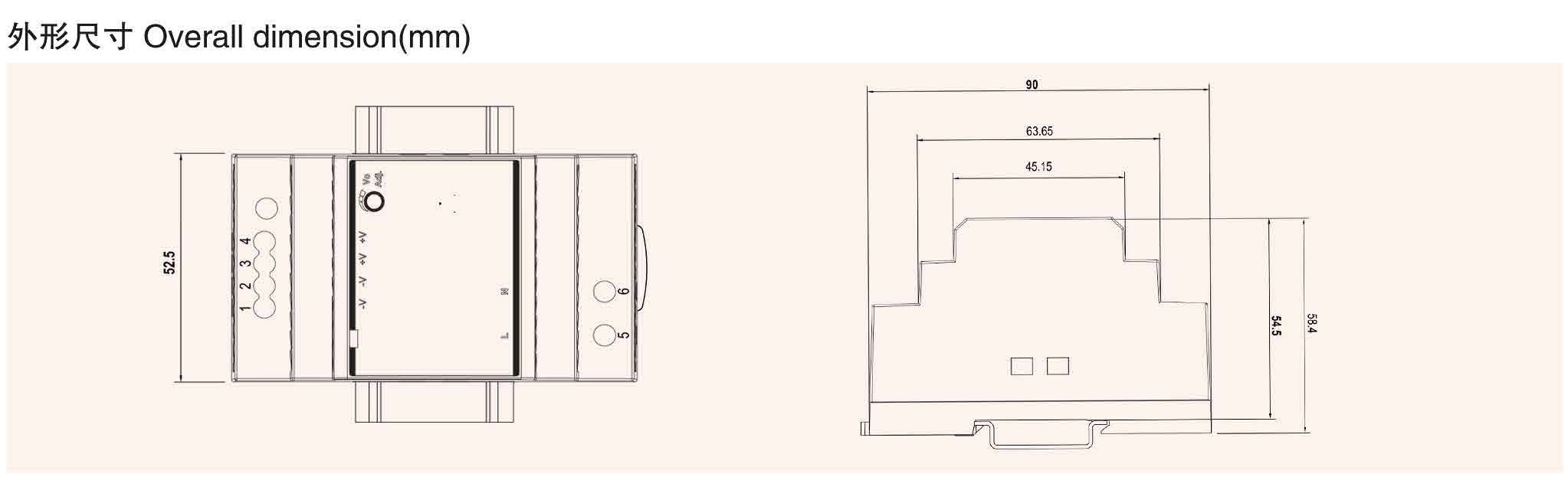

| Dimension | 52.5x90x54.5mm | |||
| Weight | 0.19kg | |||
Feature Of 60W Ultra Slim Step Shape DIN Rail Power Supply
The 60W Ultra Slim Step Shape DIN Rail Power Supply HDR-60 is a type of power supply that is designed to be mounted on a DIN rail, which is a standard type of mounting rail used in industrial control and automation applications. HDR-60 is a 60W-class series. Available output ratings vary by model: 5V 0–6.5A, 12V 0–4.5A, 24V 0–2.5A or 48V 0–1.25A. Confirm the selected model and operating conditions.
One notable feature of the HDR-60 power supply is its ultra-slim design, which allows it to be installed in tight spaces where space is limited, such as in compact control panels or cabinets. This slim form factor helps to optimize space utilization and can be beneficial in applications where available space is a concern.
The “Step Shape” design of the HDR-60 power supply refers to its unique shape, which is wider at the top and narrower at the bottom. This design helps to enhance the cooling efficiency of the power supply by allowing for better airflow and heat dissipation, which can result in improved reliability and longer lifespan.
As a DIN rail power supply, the HDR-60 is designed to operate within the standard DIN rail mounting dimensions, which are widely used in industrial control and automation applications. This makes it easy to integrate the HDR-60 power supply into existing DIN rail systems or design new systems around it.
