High-Efficiency 30W Industrial DIN Rail Single Output Power Supply

WeHo’s HDR-30 series is a single output 15W Ultra Slim Step Shape DIN Rail Power Supply.

Adopting the full range 86-264VAC input, the entire series provides an output voltage line of 5V, 12V, 24V, and 48V.

HDR-30 is a reliable switching power supply with high-quality material, durable, and safe to use.

Other standard features include its low no-load power consumption, saving energy, short circuit, overload, and over-voltage protections.

If you have any questions, please do not hesitate to contact us at Email: [email protected].


Model HDR-30-5 HDR-30-12 HDR-30-24 HDR-30-48
DC output voltage 5V 0~3A 12V 0~2A 24V 0~1.5A 48V 0~0.75A
Wave and noise 80mVp-p 120mVp-p 150mVp-p 240mVp-p
Inlet wire Stability ±1% ±0.5% ±0.5% ±0.5%
Load Stability ±1% ±0.5% ±0.5% ±0.5%
Efficiency 78% 84% 86% 86%
Adjustable Range Ror DC Voltage ±10% ±10% ±10% ±10%
Input Voltage Range 85~264VAC; 120~370VDC; 47~63Hz
Impact Current Cold start Current:
15A/115VAC; 30A/230VAC
Overload Protection 105% -160% cut off the output, automatic recovery
Other Protection Overcurrent protection; Short-circuit protection
Setup, Rise, Hold Up Time 800ms, 60ms, 50ms/230VAC at full load
Withstand Voltage I/P-O/P: 1.5kV
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ
Working Temperature -10℃ ~ +50℃
Dimension 35x90x54.5mm
Weight 0.12kg

Feature of 30W Industrial DIN Rail Single Output Power Supply

This highly efficient 30W industrial DIN rail single output power supply is ideal for powering small electronic devices

This product is suitable for communication and networking equipment, as well as industrial control systems. It features a universal AC input (85-264VAC) and a wide temperature operating range (-10°C to +50°C).

This not only has protection functions such as power short circuits, overload, overvoltage and overheat protection. It also has a high MTBF (mean time between failures) of up to 500,000 hours.

In addition to its compact design and high efficiency (up to 89%), the power supply complies with various industrial safety standards to ensure reliable operation.

This industrial DIN rail power supply is ideal for powering a wide variety of industrial equipment in harsh environments where reliability, efficiency, and safety are critical.

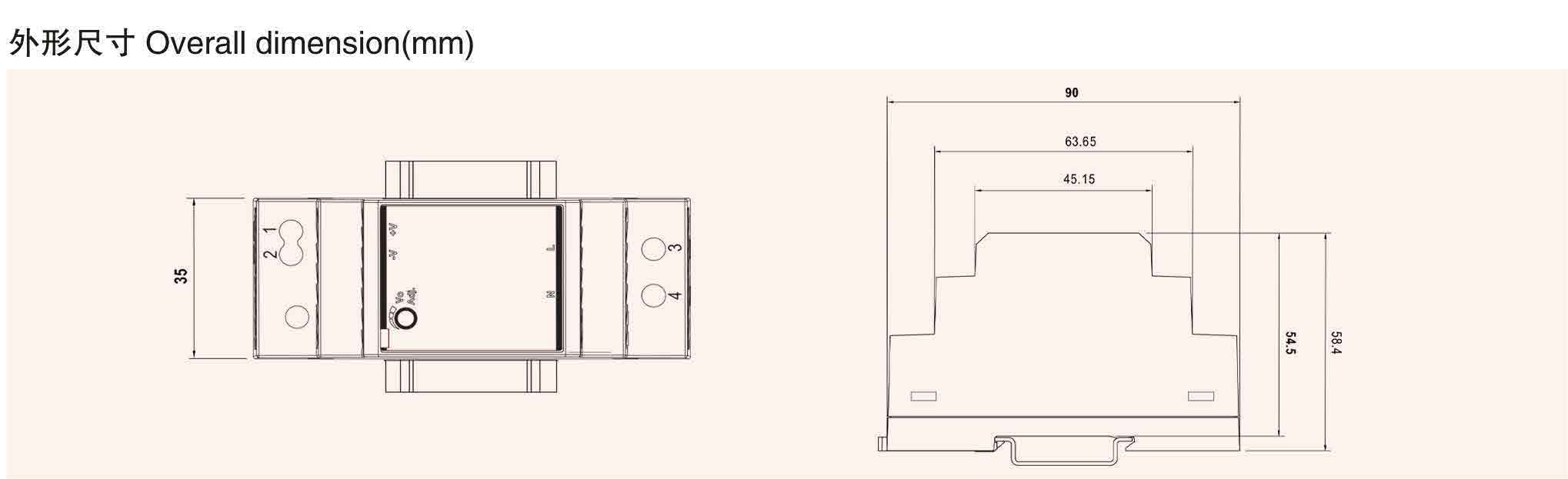

HDR-30 size
