AC 95-264V DC 12V 24V 36V 48V Waterproof IP67 Switching Power Supply LED driver 50W

XLG-50W with High efficiency,Natural air cooling,Fully protected aluminum housing,Full filling glue, in line with IP65 / IP67 protection grade features. Due to its conversion efficiency of up to 88%, it adopts fanless design and can work in the cabinet temperature range of -20℃ to + 60℃ under natural air cooling and heat dissipation. The metal housing and the high IP65 / IP67 design make the XLG-50W series suitable for indoor or outdoor applications.

XLG-50W built-in long-life aluminum electrolytic capacitor provides ultra-low no-load power consumption (less than 0.75W), which can make the terminal system easily meet international energy requirements XLG-25W has complete protection function and anti -3G vibration capability. It conforms to safety regulations such as IEC/EN61347 and EN60950-1, and can meet the energy-saving requirements of the new generation of LED lighting, providing a cost-effective solution for various LED lighting.

If you have any questions, please do not hesitate to contact us at Email: [email protected]

Model XLG-50-12 XLG-50-24 XLG-50-36 XLG-50-48
DC output voltage 12V 24V 36V 48V
Rated output current 4.2A 2.1A 1.4A 1.05A
Constant current range 6~12V 12~24V 18~36V 24~48V
Output power 50W 50W 50W 50W
Wave and noise 180mVp-p 180mVp-p 200mVp-p 200mVp-p
Voltage accuracy ± 3% ± 2% ± 1% ± 1%
Line regulation ± 0.5% ± 0.5% ± 0.5% ± 0.5%
Load regulation ± 2% ± 1% ± 0.5% ± 0.5%
Start, rise, hold time 500ms,80ms,16ms/230VAC  (at full load)
Input voltage range 95 ~264VAC,135 ~373VDC
Frequency range 47 ~ 63Hz
AC input current 0.7A/230VAC
Efficiency 86.5% 87.5% 87.5% 88.5%
Impulse current Cold start current   25A/230VAC
Leakage current <1mA/240VAC
Overcurrent protection 95%~108% of the rated output current starts overcurrent limit,
recover automatically after abnormal conditions are removed
Short circuit protection Hiccup mode: recover automatically normal output after abnormal conditions are removed
Working temperature -20℃~ +60℃
Working humidity 20% ~90% RH, non condensing
Storage temperature and humidity -40℃~ +85℃;10% ~95% RH,non condensing
Seismic resistance 10~500Hz,,3G 10min/ 1 cycle,X, Y, Z axes,duration 60 minutes
Pressure resistance I/P~O/P:1.5KVAC    I/P~FG:1.5KVAC    O/P~FG:0.5KVAC
Isolation resistance I/P~O/P,I/P~FG,O/P~FG: 100M Ohms/500VDC/25℃/70%RH
Safety standard Compliance to UL60950-1,TUV EN60950-1,IP67
Electromagnetic compatibility
Compliance to EN55022 Class A
Electromagnetic compatibility immunity Compliance to EN55024

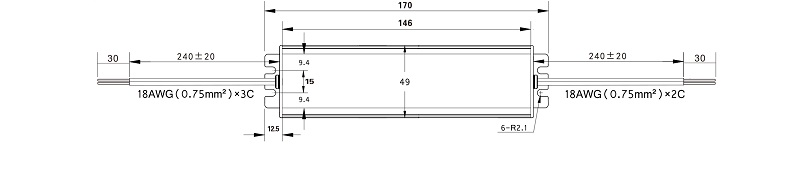

Dimension 170*49*34mm (L*W*H)
Packing 0.40kg/30pcs/13kg/0.025 cubic meters
