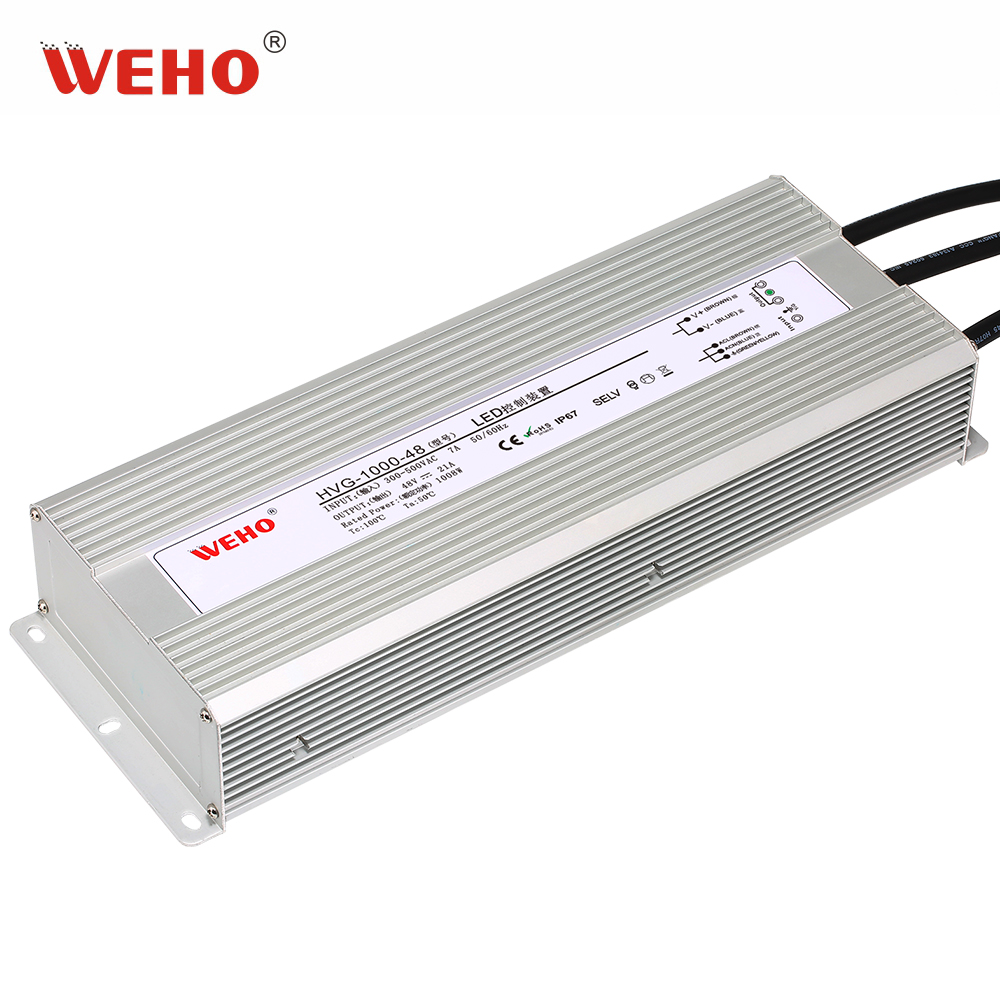

HVG 1000W 300~500VAC AC to DC Waterproof Power Supply
HVG-1000 series is a 1000W single-output waterproof power supply with a 26512056mm design. Adopting the wide range 300-500VAC input, the entire series provides an output voltage line of 24V, 36V, 45V, and 48V. In addition to the high efficiency of up to 94.5%, it supports automated recovery for overvoltage, and the whole series operates from -30°C through 60°C.
If you have any questions, please do not hesitate to contact us at Email: [email protected]
- Description
General Specification
| Model | HVG-1000-24 | HVG-1000-36 | HVG-1000-45 | HVG-1000-48 |
| DC output voltage & current | 24V 0~42A | 36V 0~28A | 45V 0~22.5A | 48V 0~21A |
| Ripple & noise | 300mVp-p | 300mVp-p | 400mVp-p | 450mVp-p |
| Voltage accuracy | ±2% | ±2% | ±2% | ±2% |
| Line regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Start-up,rise,hold-up time | 200ms,50ms,24ms/380VAC At full load | |||
| Input voltage range | 300~500VAC | |||
| Frequency range | 47~63Hz | |||
| AC input current | 7A/380VAC | |||
| Power factor | 0.5~0.78 | |||
| Efficiency | 92.5% | 93.5% | 94% | 94.5% |
| Inrush current | Cold Start Inrush Current 45A/380VAC | |||
| Leakage current | <1mA/380VAC | |||
| Overcurrent protection | Current triggers overcurrent limitation,which can automatically recover after abnormal conditions are removed | |||
| Short circuit protection | Protection method:Current limiting mode,automatically restores normal output after abnormal conditions are removed | |||
| Overvoltage protection | Over-voltage protection activates at 115%~135%of the rated output voltage. | |||
| Protection mode:voltage limiting mode;automatic recovery after the abnormal condition is removed. | ||||
| Over-temperature protection | 105℃±5℃ Protecion mode:current-limiting and voltage-reducing mode;automatic recovery of normal outputafter the temperature drops | |||
| Operating temperature& humidity | -30℃~+60℃ 20%~90%RHno condensation | |||
| Storage temperature & humidity | -40℃~+85℃;10%~95%RHNo condensation | |||
| Insulation resistance | Input/output (I/P~O/P),input to ground(I/P~FG),output to ground(O/P~FG):100M Ohms/500VDC/25℃/70%RH | |||
| Dimensions | 265×120×56mm (L*W*H) | |||
| Packaging | 2.0kg/9pcs/19.5kg/0.033m³ | |||
