UPS 35w AC to DC single output power supply for battery charge

WeHo’s SC-35 series Power supply is Premium quality material ensure long term service.

Which regulated Switching Power Supply is 100% brand new and high quality material, which is wear resistance to ensure a long term service

EASY TO INSTALL-This Regulated Switching Power Supply is simple to wire for easy installation and use.

Indicator for power on/ charge/normal (LED)

Small volume, low weight , high efficiency

Universal AC input / Full range

Battery protection at low votage

100% full load burn-in test

Size: 111*78*36mm (L * W * H)

Model SC-35-12 SC-35-24
DC voltage CH1:13.8V CH1:13.4V CH1:27.6V CH2:26.5V
Voltage tolerance ±2% —– ±1% —–
Rated current 2.0A 0.5A 1.0A 0.3A
Current range 0~2.0A —– 0~1.0A —–
Rated power 34.3W 35.6W
Ripple & noise 120mvp-p —– 120mvp-p —–
DC voltage ADJ.range CH1:12.5~15.0V CH1:24.0~30.0V
Efficiency 81% 83%
Input voltage range 90~264VAC,127~370VDC
Frequency 47~63HZ
Input AC current 0.9A/115VAC,0.45A/230VAC
Inrush current Cold-start current 25A/115VAC,45A/230VAC
Leakage current < 2.5mA/240VAC
Over load protection Rated output power 110%~150% start over load protection
Protection type:AC charging mode,hiccup mode,auto-revovery after fault condition is removed
Battery protection at low votlage 9.5~11V 20~22V
Protection mode:cutoff output,
UPS introduction Long-term online floating charge to battery ,high charging efficiency,battery can saturate to more then 90%;
Auto-stop charging when its full , precent over charging .Effectively extend battery life;
AC/battery auto switch ,no switch time, no need human guard;
Cold-start , when there is no AC input, can use battery start UPS, Meet the user’s emergency needs。
Working temp,humidity -10℃~+60℃,20%~90%RH
Storage temp,humidity -20℃~+85℃,10%~95%RH无冷凝
Withstand voltage I/P-O/P:1.5KVAC; I/P-FG:1.5KVAC; O/P-FG:0.5KVAC
Isolation resistance I/P-O/P:I/P-FG:O/P-FG:100M ohms/500VDC

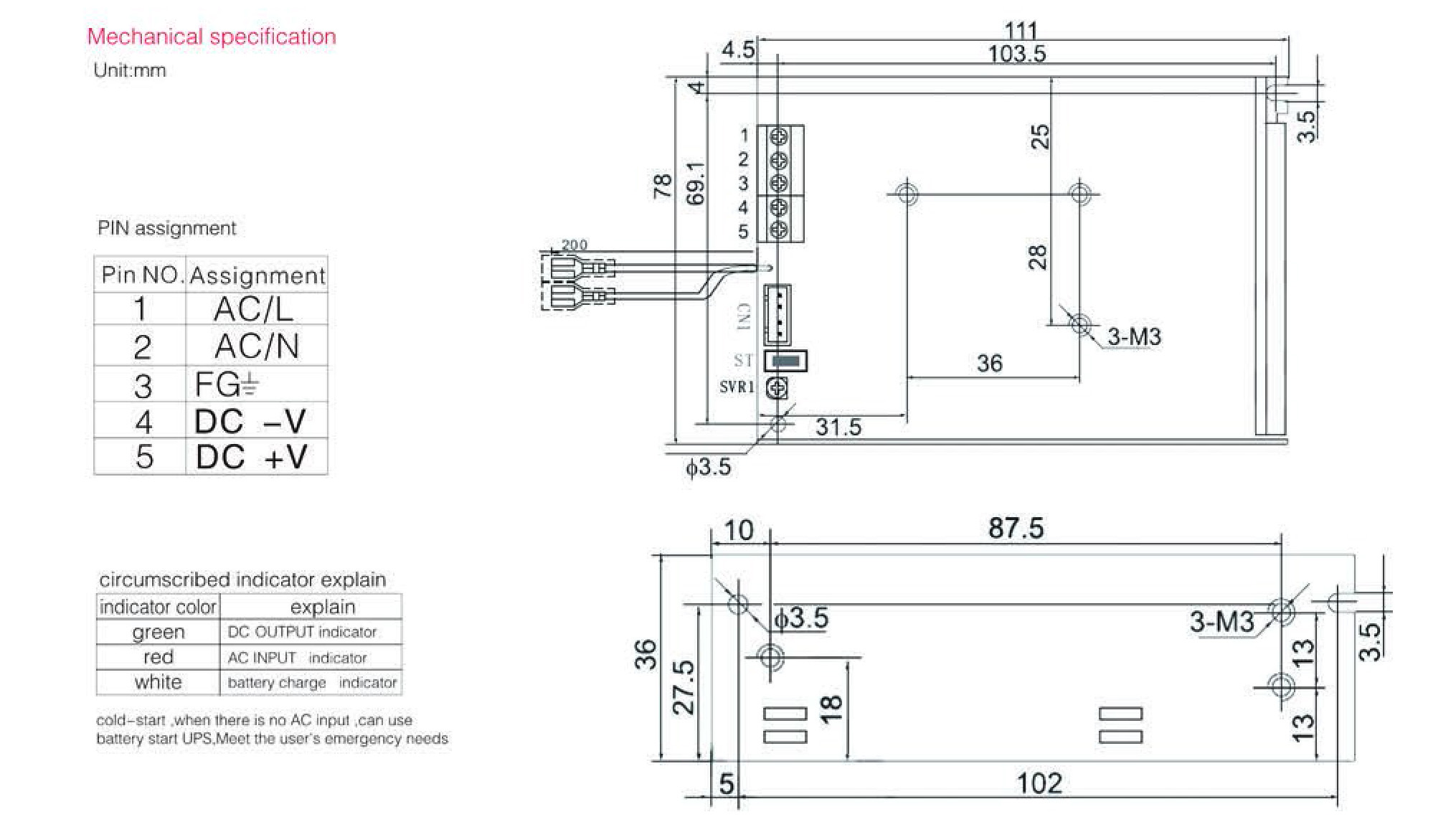

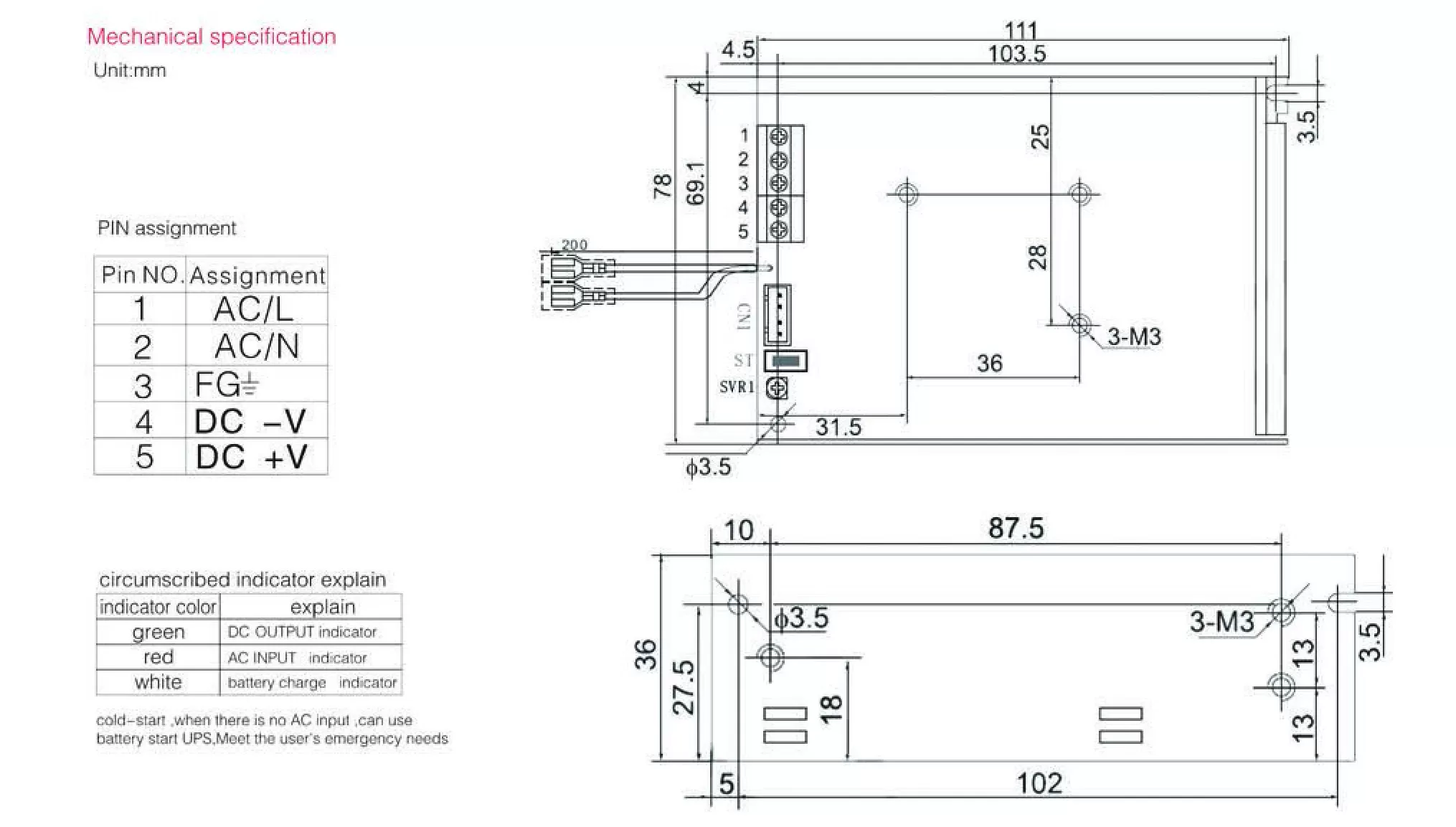

Demension 111*78*36mm (L*W*H)
Weight/packing 0.3kg/50pcs
