UPS 60w AC to DC single output power supply for battery charge

WeHo’s SC-60 series Power supply is Premium quality material ensure long term service ,

Which regulated Switching Power Supply is 100% brand new and high quality material,which is wear resistance to ensure a long term service

EASY TO INSTALL-This Regulated Switching Power Supply is simple to wire for easy installation and use.

Indicator for power on/ charge/normal (LED)

It is complied with the international CE ROHS

Protections:Short circuit/overload

Universal AC input / Full range

Cooling by free air convection

Size: 129*98*38mm (L * W * H)

Model SC-60-12 SC-60-24
DC voltage CH1:13.8V CH1:13.4V CH1:27.6V CH2:26.5V
Voltage tolerance ±1% —– ±1% —–
Rated current 4.0A 0.35A 2.0A 0.25A
Current range 0~4A —– 0~2A —–
Rated power 59.9W 61.8W
Ripple & noise 100mvp-p —– 100mvp-p —–
DC voltage ADJ.range CH1:12.5~15.0V CH1:24.0~30.0V
Efficiency 81% 83%
Input voltage range 90~264VAC,127~370VDC
Frequency 47~63HZ
Input AC current 1.6A/115VAC,0.8A/230VAC
Inrush current Cold-start current 25A/115VAC,45A/230VAC
Leakage current <2.5mA/240VAC
Over load protection Rated output power 110%~150% start over load protection
Protection type:AC charging mode,hiccup mode,auto-revovery after fault condition is removed
Battery protection at low votlage 9.5~11V 20~22V
Protection mode:cutoff output,
UPS introduction Long-term online floating charge to battery ,high charging efficiency,battery can saturate to more then 90%;
Auto-stop charging when its full , precent over charging .Effectively extend battery life;
AC/battery auto switch ,no switch time, no need human guard;
Cold-start , when there is no AC input, can use battery start UPS, Meet the user’s emergency needs。
Working temp,humidity -10℃~+60℃,20%~90%RH
Storage temp,humidity -20℃~+85℃,10%~95%RHNon-condensing
Withstand voltage I/P-O/P:1.5KVAC; I/P-FG:1.5KVAC; O/P-FG:0.5KVAC
Isolation resistance I/P-O/P:I/P-FG:O/P-FG:100M ohms/500VDC

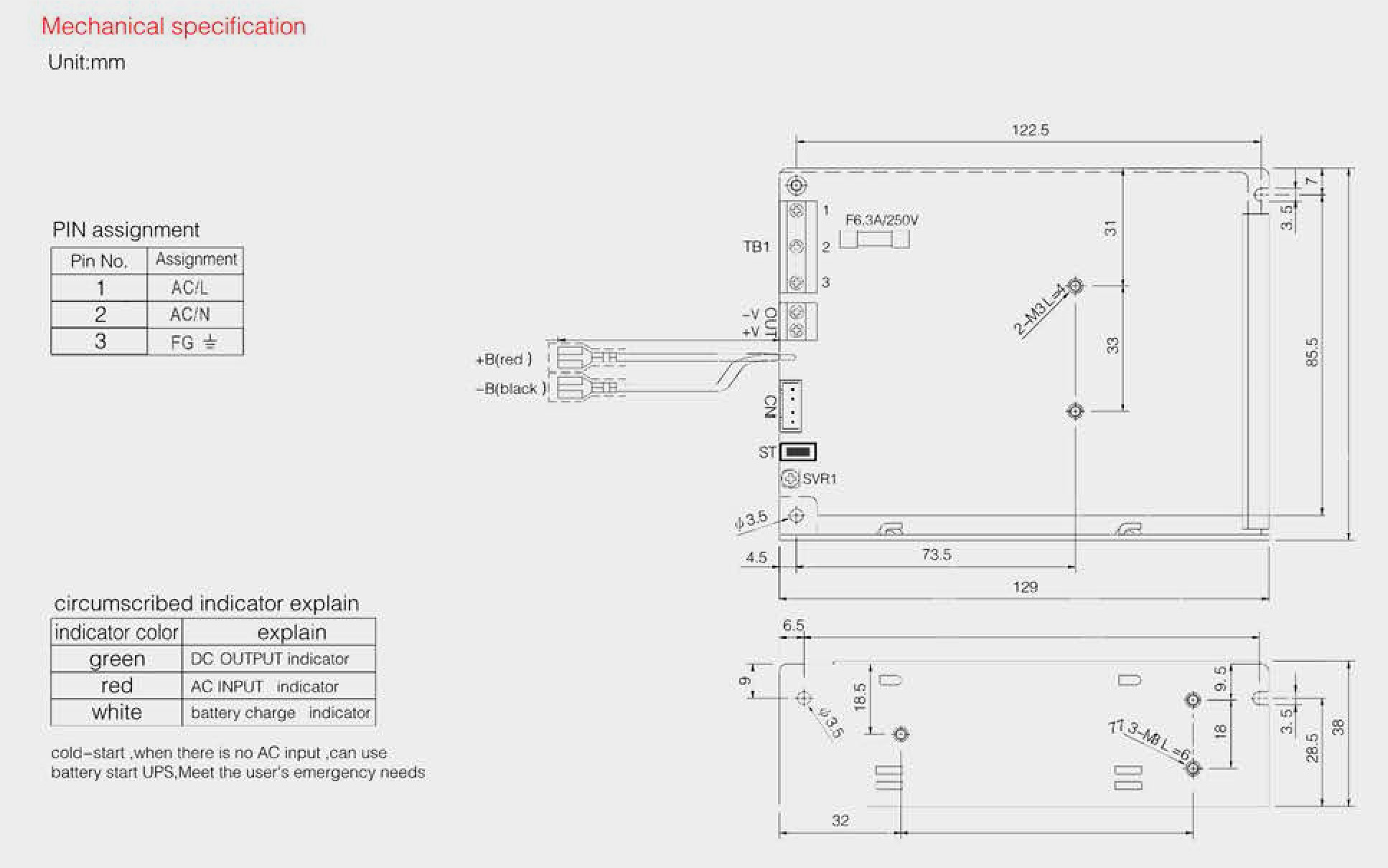

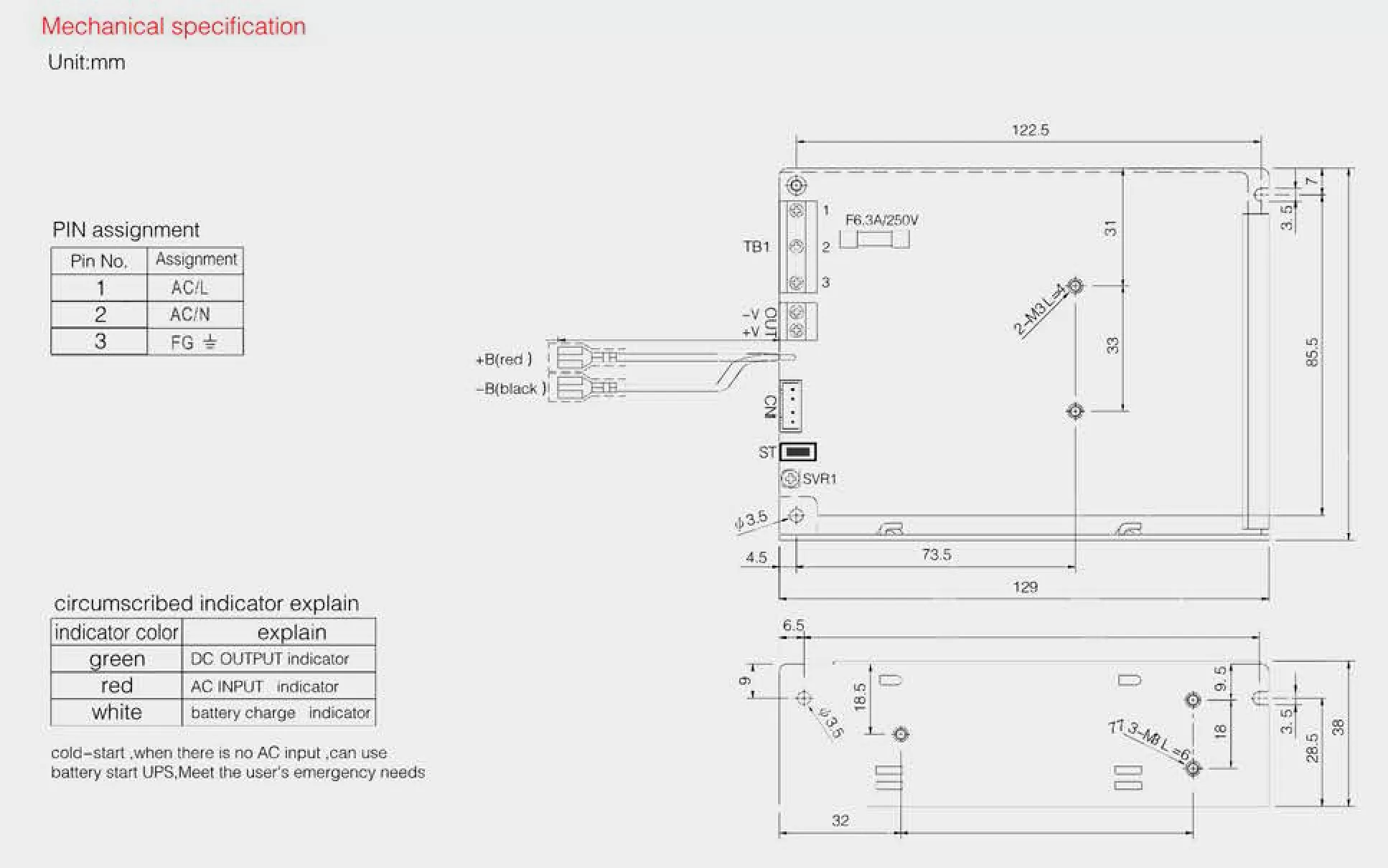

Demension 129*98*38mm (L*W*H)
Weight/packing 0.52kg/45pcs
