Waterproof IP67 LED driver AC 110v/220v to constant DC output 250W power supply

LPV-250 series from WeHo are single-output power supplies designed specifically for LED lighting or LED-related applications.

With fully encapsulated IP67 protection the LPV unit can be used with indoor or outdoor projects such as outdoor signage or street lighting.

Metal case enclosure makes the LPV series a highly reliant and durable power supply that is highly efficient and long-lasting.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model LPV-250-12 LPV-250-24
DC Output Voltage 12V 24V
Output Voltage Error ±1% ±1%
Rated Output Current 20A 10A
Output Current Range 0-20A 0-10A
Wave And Noise 100mVp-p 100mVp-p
Inlet Stability ±0.5% ±0.5%
Load Stability ±0.5% ±0.5%
DC Output Power 250W 250W
Efficiency 85% 85%
AC Input Voltage Range 170 ~ 264VAC
Input Current 0.5A/115V 0.25A/230V
AC Impulse Current Cold-start current 13A/115V 26A/230V
Leakage Current <0.5mA/240VAC
Over Load Protection 105%~150% rated output power
Protection: Hiccup mode
Over Voltage Protection 13~16V 28~32V
Protection: Shut down the output voltage
Short Circuit Protection Protection: Hiccup mode
Temperature Coefficient ±0.03%(050)
Setup Rise Hold-Up Time 200ms, 100ms, 30ms
Vibration 10~500Hz, 2G 10min./1cycle, Period for 60min, Each axes
Withstand Voltage I/P-O/P: 2.5KVAC
Isolation Resistance I/P-O/P: 100M Ohms / 500VDC / 25 / 65% RH
Working Temperature And Humidity -10°C ~ +60°C, 20%~90%RH
Store Temperature And Humidity -20°C ~ +85°C, 10%~95%RH

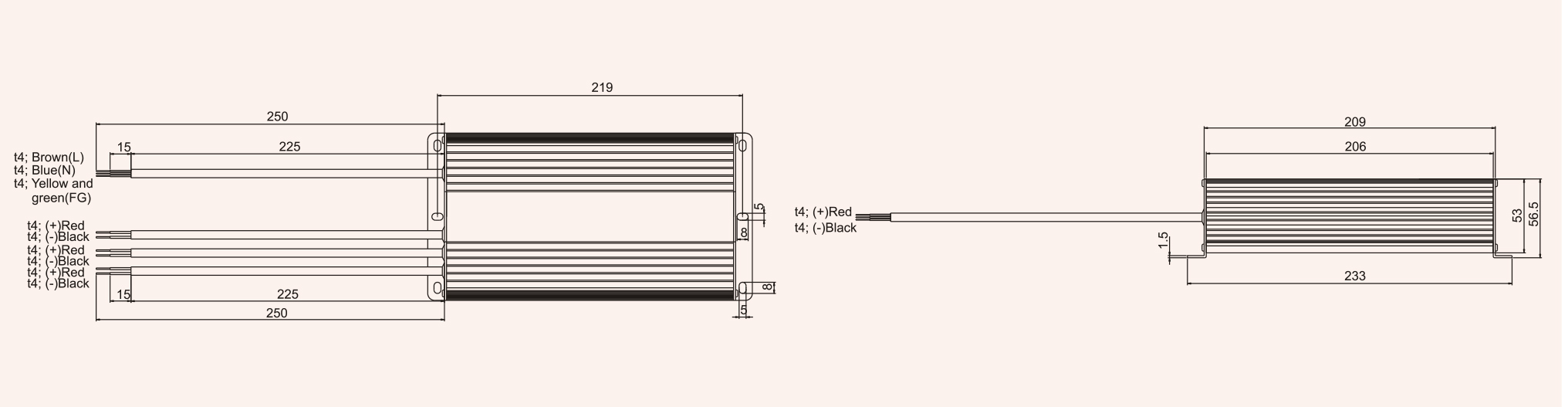

Overall Dimension 235×122×60mm
Weight 2.8Kgs
Safety Standards Design refer to UL1012, EN60950-1, EN61347-1, EN-61347-2 approved
EMC EN55015, EN55022, EN55024, EN61000-2, EN61000-3, EN61547 app

This product is suitable for LED-related lamps or appliances.

The product input voltage: is 90-132/180-264VAC.

This product is fully encapsulated to IP67.

The product has completed the 100% full load aging test.
