WeHo’s DR-60 series is a single output Din rail type power supply which can be installed on TS-35/7.5 or 15 DIN rails.
Adopting the full range 86-264VAC input,the entire series provides an output voltage line of 5V,12V,15V,24V,36V and 48V
DR-60 is a reliable switching power supply with high quality material, durable and safety in use.
DR-60 as a little higher price to performance power supply solution for various industrial applications.
Standardized procedure for testing through all production process
Withstand Voltage 1500V Surge input for 5 seconds
Can be installed on DIN rail TS-35/7.5 or 15
DIN RAIL type , easy to installation
100% aging test before packing
CE & Rohs certifications
Inner security for using
100% burn-in test
| MODEL | DR-60-5 | DR-60-12 | DR-60-15 | DR-60-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 6.5A | 4.5A | 4A | 2.5A | |
| CURRENT RANGE | 0 ~ 6.5A | 0 ~ 4.5A | 0 ~4A | 0 ~ 2.5A | |
| RATED POWER | 32.5W | 54W | 60W | 60W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE ADJ.RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 100ms, 30ms/230VAC 200ms, 30ms/115VAC at full load | ||||
| HOLD TIME(Typ.) | 100ms/230VAC 23ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 76% | 82% | 83% | 84% | |
| AC CURRENT | 1.2A/115VAC 0.8A/230VAC | ||||
| INRUSH CURRENT(max.) | COLD START 18A/115VAC 36A/230VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | |||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60ºC | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85ºC, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC (Note 4) | SAFETY STANDARDS | Design refer to UL60950-1, TUV EN60950-1, EN50178 | |||
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | ||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | ||||
| EMS IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5; ENV50204, EN55024, Light industry level, criteria A | ||||
| OTHERS | MTBF | 216.2K hrs min. MIL-HDBK-217F (25ºC) | |||

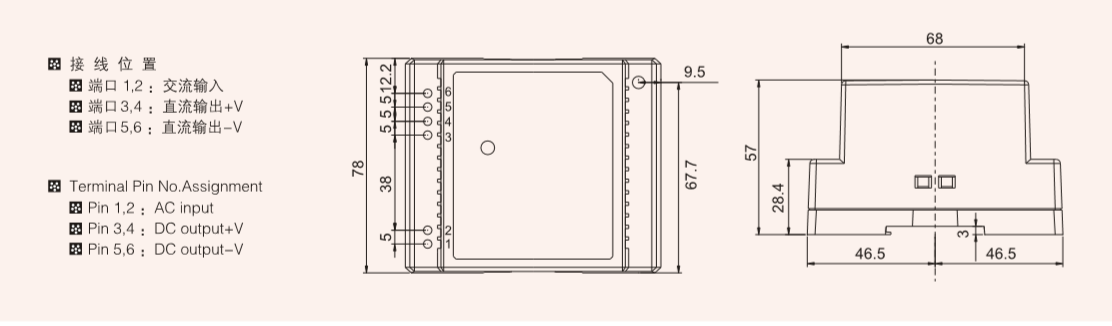

| DIMENSION | 78*93*56mm (L*W*H) | ||||
| PACKING | 0.3Kg; 45pcs/13.5Kg/1.02CUFT | ||||
