High Quality DR-15 15w Smps Switching Power Supply with Ce Fcc Rohs Certification

The DR-15 series of single-output DIN rail power supplies from WeHo is specifically designed to be mounted on a TS-35/7.5 or 15 DIN rail.

Its input can range from 86-264VAC, and it offers 5V, 12V, 15V, and 24V output lines. The shell of the DR-15 is constructed with an isolated plastic design, making it fully protected from user contact and electric shocks.

This switching power supply contains high-grade materials for reliability and durability. In addition, the DR-15 includes energy-efficient no-load power consumption as well as short circuit, overload, and overvoltage protection capabilities.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model DR-15-5 DR-15-12 DR-15-15 DR-15-24
DC Output Voltage 5V 0~2.4A 12V 0~1.5A 15V 0~1A 24V 0~0.63A
Wave And Noise 80mVp-p 120mVp-p 120mVp-p 150mVp-p
Inlet Wire Stability ±0.2% ±0.5% ±0.5% ±0.5%
Load Stability ±1% ±0.5% ±0.5% ±0.5%
Efficiency 77% 84% 84% 85%
Adjustable Range For DC Voltage ±10% ±10% ±10% ±10%
Input Voltage Range 85~264VAC
Impact Current Cold Start Current
Overload Protection 105% -160% cut off the output, automatic recovery
Overload Voltage Protection 115%-135% shut down O/P voltage, re-power on to recover
Setup, Rise, Hold Up Time 800ms, 60ms, 50ms/230VAC at full load
Withstand Voltage I/P-O/P: 1.5kV
O/P-F/G:1.5kV  1 minute
Isolation Resistance I/P-O/P  I/P-FG  O/P-FG: 500VDC/100MΩ
Working Temperature -10℃ ~ +50℃

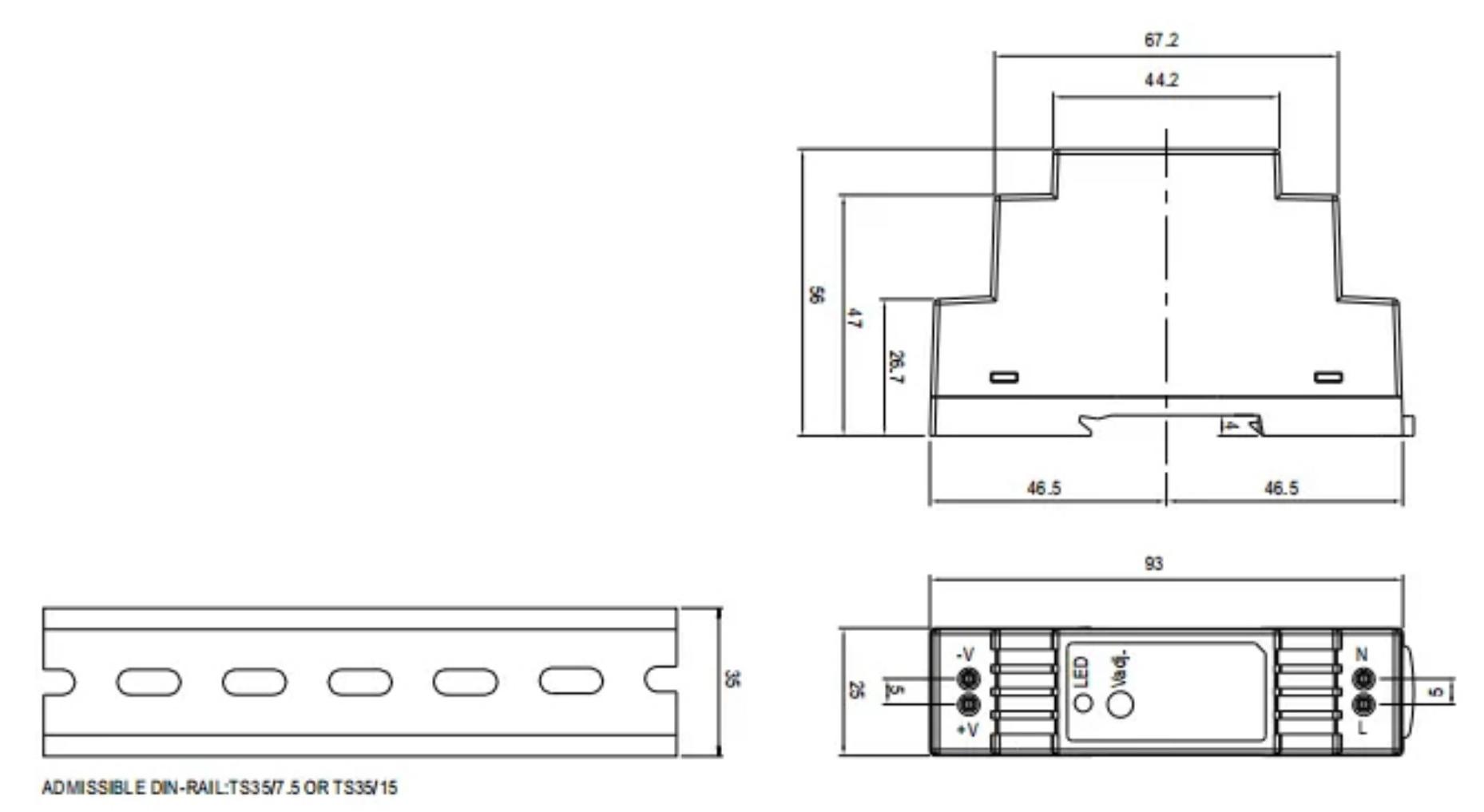

Dimension 25x93x56mm
Weight 0.1kg
Packing 140PCS/15kg
