Constant voltage 800w 48V 17A DC 48 volt switching power supply

WeHo professional 800W Switching SCN series Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.

115/230V AC range selectable by the switch, air cooling by the built-in fan.

Filter capacitance; High withstand voltage; Low dissipation; Large capacity. Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model SCN-800-12 SCN-800-15 SCN-800-24 SCN-800-48
Output DC Voltage 12V 15V 24V 48V
Voltage Tolerance ±1% ±1% ±1% ±1%
Rated Current 66A 54A 33A 16.6A
Current Range 0-66A 0-54A 0-33A 0-16.6A
Rated Power 800W 800W 800W 800W
Ripple & Noise 150mVp-p 150mVp-p 240mVp-p 480mVp-p
DC Adjustment Range ±5%; Can adjust from 40%~100% output voltage by external control 2-5V
Setup, Rise, Hold Time 800ms, 50ms, 16ms at full load
Input Voltage Range 90~130VAC / 180~260 VAC47~63 Hz; selected by switch260~370VDC
AC Current 13A/115 VAC 8.0A/ 230 VAC
Efficiency 80% 81% 85% 87%
Inrush Current 60A/230V
Leakage Current 3.5 mA/240VAC
Protection Over Load 110%~135%
Protection: Protection: Current limiting, delay shut down o/p voltage, re-power on to recover
Over Voltage 110%~135%
Protection type: Shut down o/p voltage, re-power on to recover
Over-Temp TSW1(Power transistor) When temp. >100 °C, shut down o/p voltage, re-power on to recover
Environment Working Temp. Humidity -10°C ~ +65°C, 20%~90%RH
Storage Temp. Humidity -20°C ~ +85°C, 10%~95%RH
Vibration 10~200Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, and Z axes
Safety Withstand Voltage I/P-O/P, I/P-FG: 1500VAC
Isolation Resistance I/P-O/P, I/P-FG, >100M Ohms / 500VDC
Standard Safety Standard Design refer to UL1950,CSA22.2,IEC60950
EMC Standard Design refers to FCC Part 15 Class A
Others Weight 2.3Kg;
Packing 6pcs/ ctn
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation, and load regulation.
4. The power supply is considered a component that will be installed into the final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

The DC Adjustment Range is ±5%. The output voltage can be controlled via an external control that uses 2-5V, and it can be adjusted from 40% to 100%.

We are a power supply manufacturer with 15 years of experience.

This product can take input of 90~132VAC or 180~264VAC through a switch and has a frame.

Our company’s main focus is on the power supply.

The product’s AC current is 13A/115 VAC and 8.0A/230 VAC.

Products of this nature can be attached in parallel.

We accepted a sample for testing.

This shipment is to be paid for by the recipient (“freight collect”) or by the sender (“freight prepaid”).

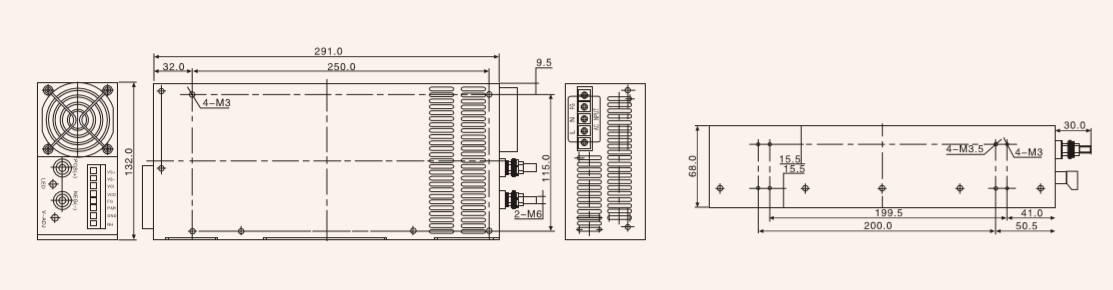

Product size: 291*132*68mm (L * W * H)
