| Model Performance | SCN-1000-12 | SCN-1000-13.5 | SCN-1000-15 | SCN-1000-24 | SCN-1000-27 | SCN-1000-48 |
| DC Output Volta | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output Voltage Tolerance (Note 2) | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated Output Current | 50A | 44A | 40A | 25A | 22A | 12.5A |
| Output Current Range | 0-40A | 0-36A | 0-32A | 0-20A | 0-18A | 0-10A |
| Ripple And Noise (Note 3) | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p |
| Inlet Stability (Note 4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability (Note 5) | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 600W | 600W | 600W | 600W | 600W | 600W |
| Efficiency | 84% | 84% | 83% | 85.50% | 86.50% | 87% |
| DC Voltage Adjustable Range | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
| Input Voltage Range | 88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz; 124~370VDC | |||||
| Input Current | 7A/115V 3.5A/230V | |||||
| Surge Current | 0.95/100~240VAC | |||||
| Leakage Current | 18A/115V 36A/230V | |||||
| Overload Protection | <3.5mA/240VAC | |||||
| Over-voltage Protection | 105%~135% type: FOLDBACK cut off output reset: Automatic recovery | |||||
| High-Temperature Protection | 13.8~16.2V | 15.5~18.2V | 18~21V | 27.6~32.4V | 31~36.5V | 57.6~67.2V |
| Temperature Coefficient | RTH1 OR RTH2>=55°C FAN ON, <=45°C FAN OFF, >=70°C cut off output | |||||
| Start-up, Upper, Retention Time | ±0.03%°C(0~50°C) | |||||
| Shock Resistance | 1.5s, 50ms, 20ms | |||||
| Withstand | 10~500Hz, 2G 10min./1circle, time: 60min., axes | |||||
| Insulation Resistance | Input to Output Isolation: 3KVAC input&shell: 1.5KVAC output &shell: 0.5KVAC |
|||||
| Work Temperature/ | Input to Output Isolation, input&shell, output &shell: 500VDC/100M Ohms | |||||
| Humidity | ||||||
| Storage Temperature, Temperature | (-10°C ~ +50°C, 20%~90%RH) | |||||
| Outline Dimension | -20°C ~ +85°C, 10%~95%%RH | |||||
| Weight | 291*132*68mm shell: 910 | |||||
| Safety Standards | 5Kgs | |||||
| EMC Standard | UL1950, TUV EN60950 | |||||
| Model Performance | CISPR22(EN55022), IEC1000-42, 3, 4, 5, 6, 8, 11 IEC100-3-2 | |||||
1000w parallel function 12vdc industrial power supply
WeHo professional 1000W Switching SCN Series Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115V and 230V can be chosen by the switch.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.
Low cost also makes it more acceptable for general usage.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
This product has a high insulation resistance, with 3KVAC between input and output, 1.5KVAC between input and shell, and 0.5KVAC between output and shell.
The voltage can be either 88~132VAC/176~264VAC, and this is chosen by a switch. The frequency is 47~63Hz, and the DC voltage is 124~370VDC.
Product storage temperature: -10°C ~ +50°C, 20%~90%RH
The SCN-1000 product has passed the CE ROHS 2-year warranty.
All inquiries will receive a response within 12 hours.
This model is capable of outputting 1000 watts at 100% full power.
This product’s resistance to impact: 1.5s, 50ms, 20ms.
This shipment is to be paid for by the recipient (“freight collect”) or by the sender (“freight prepaid”).

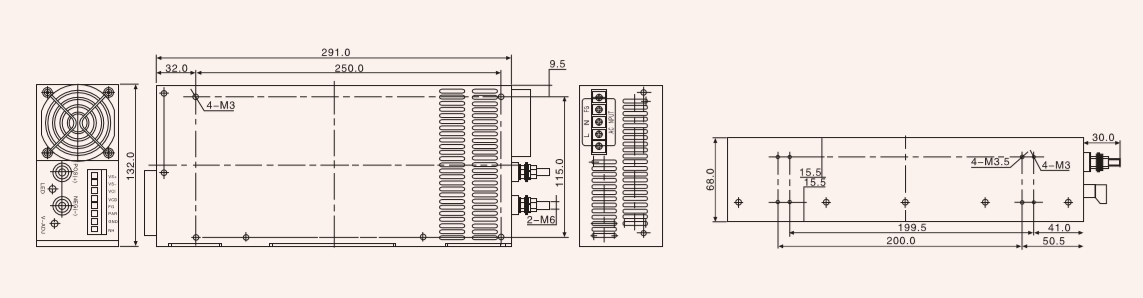

Product size: 291*132*68mm (L * W * H)
