Cooling Fan 110vac 220vac AC TO DC power supply led 200 watt power supply

SP-200 is a range of enclosed power supply units featuring universal AC input and built-in power factor correction (PFC).

The SP series ranges from 75 ~ 240W and includes built-in protections: short circuit, overload, over-voltage, and over temperature, either cooling by free air convection (SP-75 / SP-100 / SP-150) or cooling via built-in DC fan (SP-200 / SP-240).

Series options: SP-75, SP-100, SP-150, SP-200, SP-240 SP-320 SP-500 PSP-600

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

Model SP-200-5 SP-200-12 SP-200-24 SP-200-48
DC Voltage 5V 12V 24V 48V
Rated Current 40A 16.7A 8.4A 4.2A
Current Range 0-40A 0-16.7A 0-8.4A 0-4.2A
Rated Power 200W 200.4W 201.6W 201.6W
Ripple & Noise 100mVp-p 100mVp-p 150mVp-p 250mVp-p
DC Adjustment Range -5%,+10% -5%,+10% -5%,+10% -5%,+10%
Voltage Tolerance ±2% ±2% ±1% ±1.0%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5% ±0.5% ±0.5%
Setup, Rise, Hold Up Time 600ms, 30ms, 20ms at full load
Voltage Range 85~264 VAC47-63Hz; 120~370VDC
AC Current 3.5A/115VAC   1.7A/230VAC
Power Factor PF>0.93/230VAC, PF>0.98/115VAC at full load
Efficiency 71% 79% 83% 84%
Inrush Current Cold start 40A/230VAC
Leakage Current <2mA/240VAC
Over Load 105%-150%
Protection type: Constant current limiting, recovers automatically after fault condition
 is removed
Over Voltage 110%~135%
Protection type: Shut down o/p voltage, re-power on to recover
Over-Temp. TSW1(Power transistor) When temp .in 95±5 °C shutdown o/p voltage temp.
<95±5 °CO/I auto-recovery.
Working Temp. Humidity -10°C~+50°C; 20%~90%RH
Storage Temp. Humidity -20°C~+85°C; 10%~95%RH
Temp. Coefficient ±0.03%/°C(0~50°C)
Vibration 10~500Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, and Z axes
Withstand Voltage I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
Safety Standard Design refer to UL1950,TUV EN60950
EMC Standard Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024

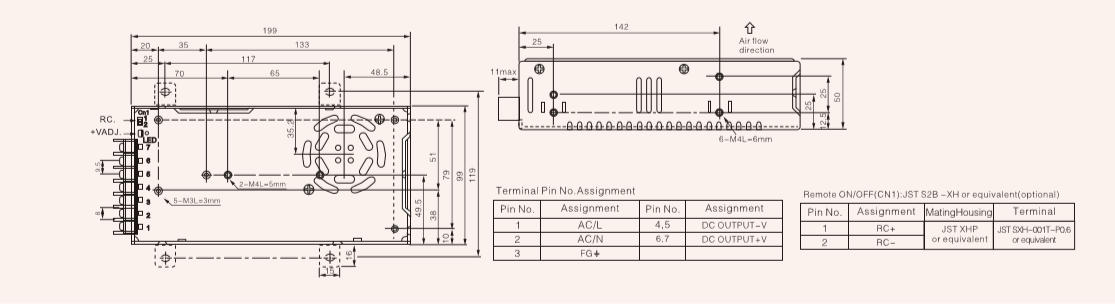

Dimension 199*99*50mm (L*W*H)
Weight 0.8Kg/pc

All products have passed CE and ROHS certification with guaranteed quality, this 200w power supply included.

We can tailor dimensions and functional drive modules to customer requirements.

We choose components for the best compatibility and logical configuration

This product is ideal for a number of LED lighting and mobile signage purposes.

This product meets global LED lighting safety standards.

The product is highly stable, the workmanship is steady, the output voltage is consistent, and there is no drift.

Our partners can cooperate with us in OEM or ODM

We are a power supply manufacturer with 15 years of experience.
