WEHO PSP 600 with PFC function 600w SMPS ac to dc switching power supply

PSP-600 is a range of enclosed power supply units featuring universal AC input and built-in power factor correction (PFC).

The SP series ranges from 75 ~ 240W and includes built-in protections: short circuit, overload, over-voltage, and over temperature, either cooling by free air convection (SP-75 / SP-100 / SP-150) or cooling via built-in DC fan (SP-200 / SP-240).

Series options: SP-75, SP-100, SP-150, SP-200, SP-240 SP-320 SP-500 PSP-600.

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

Model   Specification PSP-600-12 PSP-600-13.5 PSP-600-15 PSP-600-24 PSP-600-27 PSP-600-48
DC Output Voltage 12V 13.5V 15V 24V 27V 48V
Output Voltage Error ±1% ±1% ±1% ±1% ±1% ±1%
Rated Output Current 50A 44.5A 40A 25A 22.2A 12.5A
Output Current Rage 0-50A 0-44.5A 0-40A 0-25A 0-22.2A 0-12.5A
Wave And Noise 240mVp-p 240mVp-p 240mVp-p 240mVp-p 200mVp-p 300mVp-p
Inlet Stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Stability (Note5) ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
DC Output Power 480W 486W 480W 480W 486W 480W
Efficiency 84% 84% 83% 85.50% 86.50% 87%
Adjustable Range For DC Voltage 10-13.2V 12-15V 13.5-18V 20-26.4V 24-30V 41-56V
AC Input Voltage Range 88132VAC/176264VAC BY SWITCH 4763Hz; 124370VDC
AC Input Current 7A/115V
Power Factor 0.95/100240VAC
AC impulse current 18A/115V
Leakage current <3.5mA/240VAC
Overload protection 105%135% TypePULSING HICCUP SHUTDOWN Reset: auto-recovery
Over-voltage protection 13.816.2V 15.518.2V 1821V 27.632.4V 3136.5V 57.667.2V
Fan control,O.T.P. RTH1 OR RTH2>=50 FAN ON, <=45 FAN OFF, >=70 Cut off output
Temperature coefficient ±0.03% (050)
Setup rise hold up time 1.5s, 50ms, 20ms
Vibration 10500Hz, 2G 10min./1cycle, Period for 60min, EACH AXES
Withstand voltage Input and output interval3KVAC,Input and enclosure1.5KVAC Output and enclosure0.5KVAC
Isolation Resistance Input and output interval, Input and enclosure, Output and enclosure500VDC/100M Ohms
Working Temperature And Humidity -10+50, 20% 90% RH
Store Temperature And Humidity -20+85,10% 95% %RH

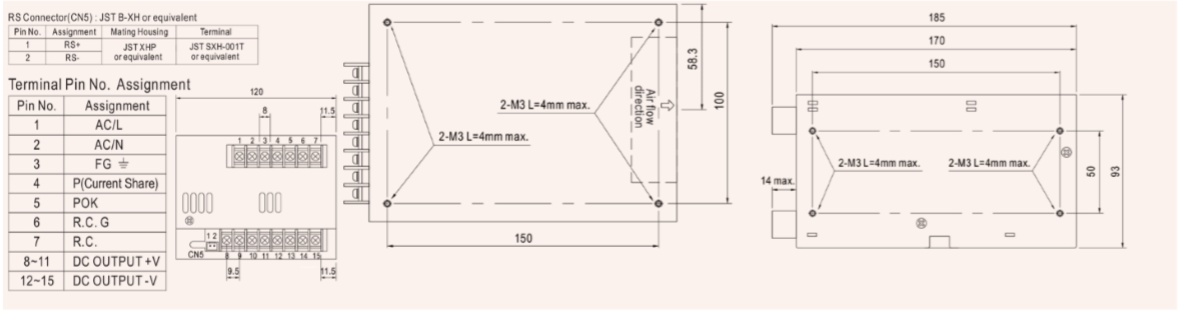

Overall Dimension 170*120*93mm
Weight 1.9Kgs
Safety Standards EN60950
EMC Standards EN55022, EN61000, EN55024

The white cap on the connector is for safety precautions against electric shock and dust protection

And we make transformers and power inductors with pure coppers all by ourselves

The product’s operating temperature range is: -10′ C- +50′ C

We are a power supply manufacturer with 15 years of experience.

Our products have CE ROHS certification to ensure quality.

This product is covered by a 24-month warranty.

This product has a protection level of IP20.
