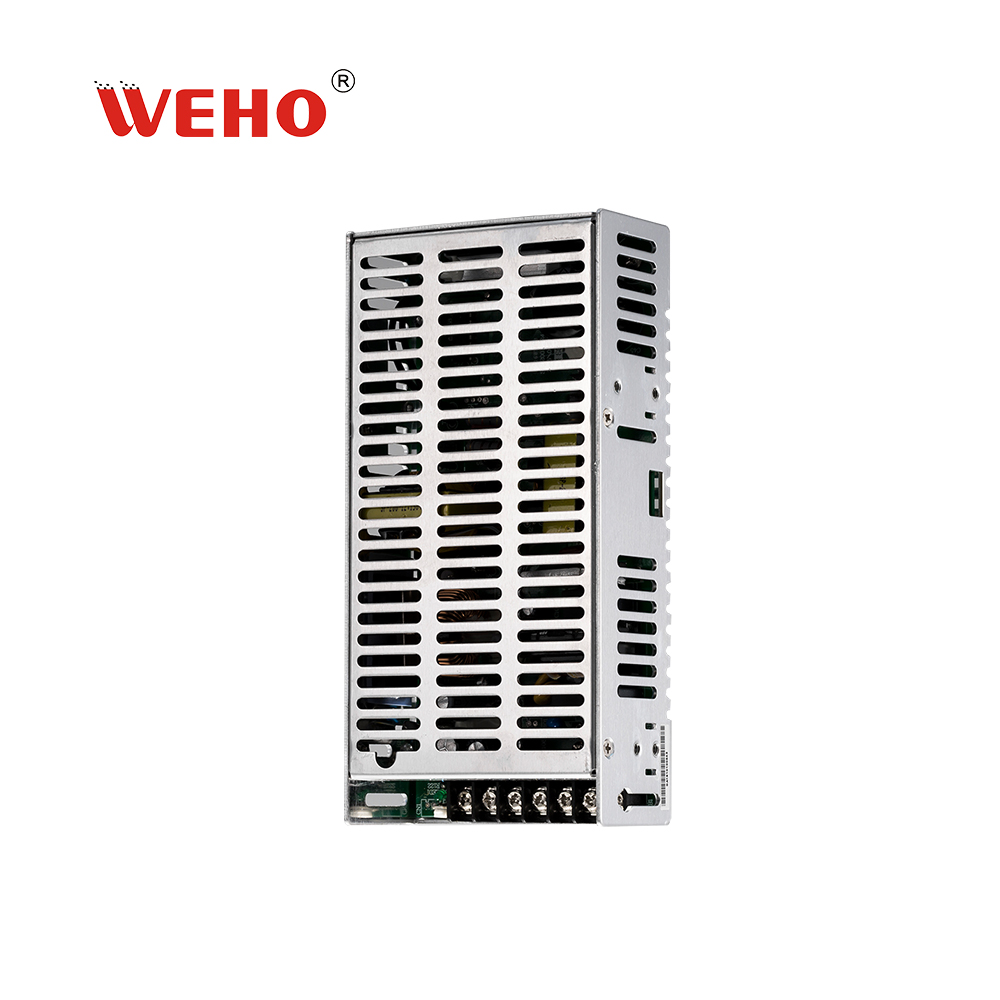

SP-150 single output with PFC function 150w cctv power supply

SP-150 is a range of enclosed power supply units featuring universal AC input and built-in power factor correction (PFC).

The SP series ranges from 75 ~ 240W and includes built-in protections: short circuit, overload, over-voltage, and over temperature, either cooling by free air convection (SP-75 / SP-100 / SP-150) or cooling via built-in DC fan (SP-200 / SP-240).

Series options: SP-75, SP-100, SP-150, SP-200, SP-240 SP-320 SP-500 PSP-600.

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

Model SP-150-5 SP-150-12 SP-150-24 SP-150-48
DC Voltage 5V 12V 24V 48V
Rated Current 30A 12.5A 6.3A 3.2A
Current Range 0-30A 0-12.5A 0-6.3A 0-3.2A
Rated Power 150W 150W 150W 153.6W
Ripple & Noise 100mVp-p 100mVp-p 150mVp-p 250mVp-p
DC Adjustment Range -5%,+10% -5%,+10% -5%,+10% -5%,+10%
Voltage Tolerance ±2% ±2% ±1% ±1.0%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5% ±0.5% ±0.5%
Setup, Rise, Hold Up Time 600ms,30ms, and 20ms at full load
input Voltage Range 85~264 VAC47-63Hz;120~370VDC
Efficiency 75% 80% 83% 84%
Inrush Current Cold start 40A/230VAC
Leakage Current <2mA/240VAC
Over Load 105%-150%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage 110%~135%
Protection type: Shut down o/p voltage, re-power on to recover
Over-Temp. TSW1(Power transistor) When temp .in 95±5 °C shutdown o/p voltage temp. <95±5 °CO/I auto-recovery.
Working Temp. Humidity -10°C~+50°C; 20%~90%RH
Storage Temp. Humidity -20°C~+85°C; 10%~95%RH
Temp. Coefficient ±0.03%/°C(0~50°C)
Vibration 10~500Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, and Z axes
Withstand Voltage I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
Safety Standard Design refers to UL1950, TUV EN60950
EMC Standard Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024

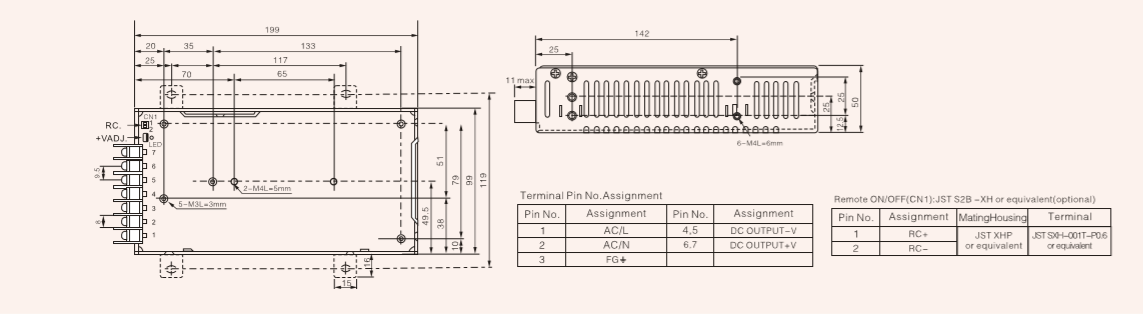

Dimension 199*99*50mm(L*W*H)
Weight 0.76Kg

All products have passed CE and ROHS certification with guaranteed quality, this 150w power supply included.

We can tailor dimensions and functional drive modules to customer requirements.

We can customized different voltage of output 12v 24v 13.5v 27v 36v 48v 60v 70v 110v

We choose components for the best compatibility and logical configuration

The product is highly stable, the workmanship is steady, the output voltage is consistent, and there is no drift.

We are a power supply manufacturer with 15 years of experience.

Input voltage :90-264VAC Full input

The power supply is cooled by the convection of free air.
