| Model | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 | |
| Output | DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 3A | 2A | 2A | 1.5A | |
| Current Range | 0 ~ 3A | 0 ~ 2A | 0 ~2A | 0 ~ 1.5A | |
| Rated Power | 15W | 24W | 30W | 36W | |
| Ripple & Noise (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| Voltage ADJ. Range | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V | |
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Load Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Setup, Rise Time | 100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load | ||||
| Hold Time (Typ.) | 100ms/230VAC 30ms/115VAC at full load | ||||
| Input | Voltage Range | 85 ~ 264VAC 120 ~ 370VDC | |||
| Frequency Range | 47 ~ 63Hz | ||||
| Efficiency(Typ.) | 74% | 81% | 82% | 83% | |
| AC Current | 0.88A/115VAC 0.48A/230VAC |
||||
| Inrush Current (max.) | Cold Start: 15A/115VAC 30A/230VAC |
||||
| Protection | Over-load | 105 ~ 160% rated output power | |||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||||
| Over Voltage | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | |
| Protection type: Shut down o/p voltage,re-power on to recover | |||||
| Environment | Working Temp | -20ºC ~ +60ºC (Refer to output load derating curve) | |||
| Working Humidity | 20% ~ 90% RH non-condensing | ||||
| Storage Temp. Humidity | -20ºC ~ +85ºC, 10% ~ 95%RH | ||||
| Temp Coefficient | ±0.03%/ºC (0 ~ 50ºC) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along the X, Y, and Z axes | ||||
| Safety & EMC | Safety Standards | Design refer to UL60950-1, TUV EN60950-1,EN50178 | |||
| Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||
| EMI Conduction & Radiation | Compliance to EN55022 (CISPR22) Class B | ||||
| Harmonic Current | Compliance to EN61000-3-2, -3 | ||||
| EMS Immunity | Compliance to EN61000-4-2, 3, 4, 5; ENV50204, EN55024, Light industry level, criteria A | ||||
| Others | MTBF | 441.5K hrs min. MIL-HDBK-217F (25ºC) | |||

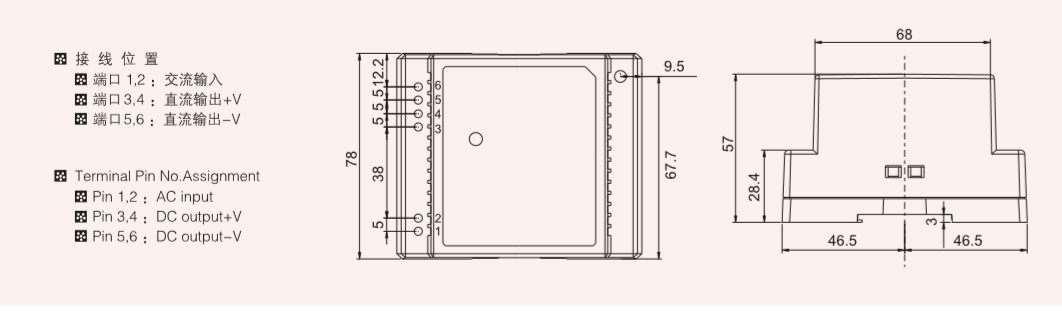

| Dimension | 78*93*56mm (L*W*H) | ||||
| Packing | 0.27Kg; 45pcs/12.2Kg/1.02CUFT | ||||
Dinrail plastic model supply din rail power supply 30W
WeHo’s DR-30 series is a single output Din rail type power supply that can be installed on TS-35/7.5 or 15 DIN rails.
Adopting the full range 86-264VAC input, the entire series provides an output voltage line of 5V,12V,15V,24V,36V and 48V DR-30 is a reliable switching power supply with high-quality material, durability, and safety in use.
DR-30 has a little higher price to perform power supply solutions for various industrial applications.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
The product’s operating temperature range is -10’C ~ +50’C.
Our partners can cooperate with us in OEM or ODM.
The product can be mounted on DIN rail TS-35/7.5 or 15.
DIN RAIL type, easy to install.
The product is equipped with LED indicators that signal when it is on, charging, or operating as normal.
This product is covered by a 24-month warranty.
Our products have CE ROHS certification to ensure quality.
The product has completed the 100% full load aging test.
