| Model | DR-45-5 | DR-45-12 | DR-45-15 | DR-45-24 |
| DC Output Voltage | 5V 0~5A | 12V 0~3.5A | 24V 0~2.8A | 24V 0~2A |
| Wave And Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Inlet Wire Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 72% | 77% | 77% | 80% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Input Voltage Range | 85~264VAC 120~370VDC 47~63Hz | |||
| Impact Current | Cold Start Current 28A/115VAC 56A/230VAC | |||
| Overload Protection | 105% -160% cut off the output, automatic recovery | |||
| Overload Voltage Protection | 115%-135% shut down O/P voltage, re-power on to recover | |||
| Setup, Rise, Hold Up Time | 800ms, 60ms, 50ms/230VAC at full load | |||
| Withstand Voltage | I/P-O/P: 1.5kV I/P-F/G:1.5kV O/P-F/G:1.5kV 1 minute | |||
| Isolation Resistance | I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ | |||
| Working Temperature | -10℃ ~ +50℃ | |||

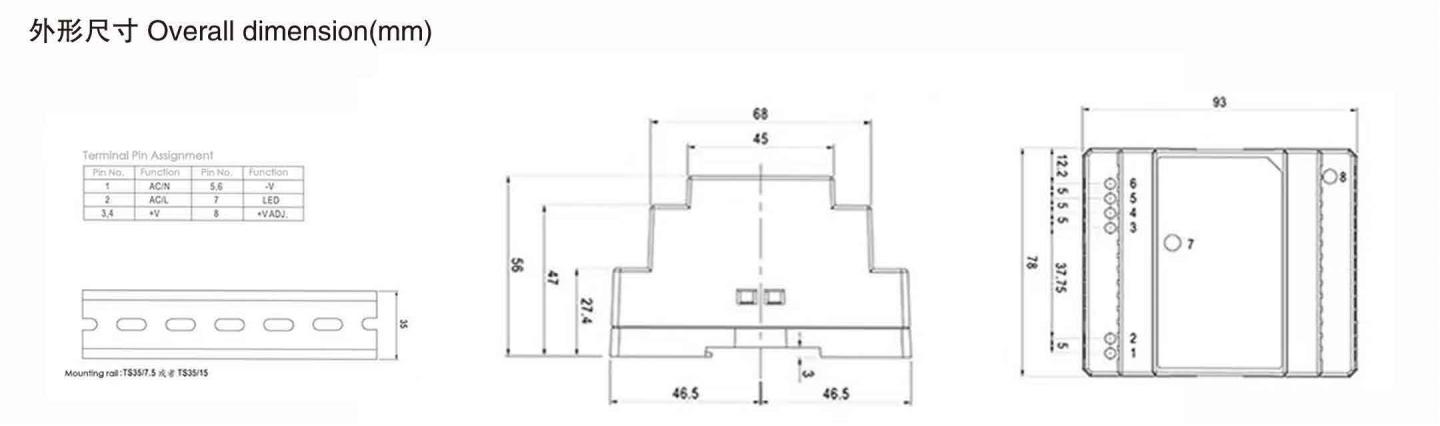

| Dimension | 78x93x56mm | |||
| Weight | 0.27kg | |||
| Packing | 43x32x21.5CM/45PCS/12.5kg | |||
DR-45 45W AC DC single output din rail 5V 12V 15V 24V electric power supply

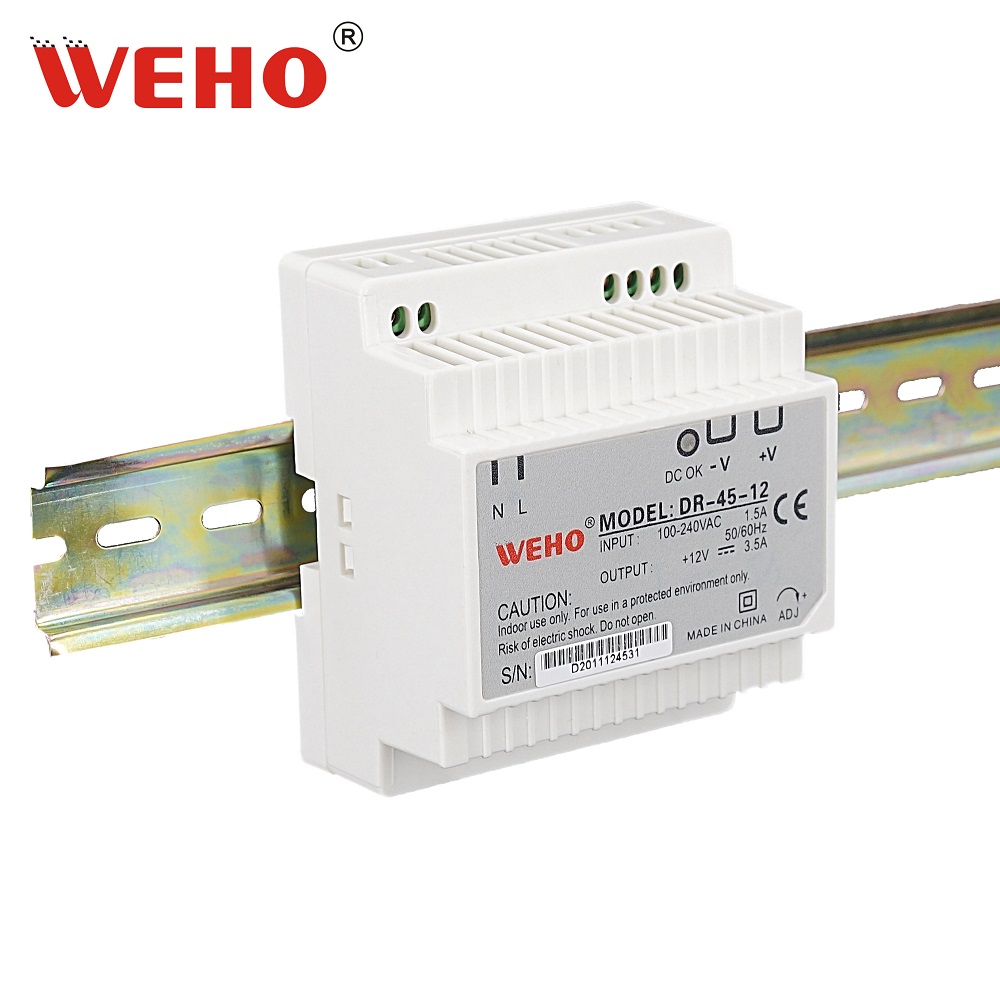

WeHo’s DR-45 series is a single-output DIN rail power supply that can be mounted on a TS-35/7.5 or 15 DIN rail.
The DR-45 Series is designed with a fully isolated plastic housing that protects the user from contact and the risk of electric shock.The DR-45 is a reliable switching power supply featuring high-quality materials, durability, and safety in use. Adopt full range 86-264VAC input, and provide 5V, 12V, 15V, 24V output voltage lines for the whole seriesOther standard features of the DR-45 Series include its low no-load power consumption, power saving, short circuit, overload, and overvoltage protection.If you have any questions, please do not hesitate to contact us at Email: [email protected]
- Description Detail
DR-45 presents a reliable and flexible switching power supply solution. We use only the highest quality materials and our products provide superior durability and safety when in use.
The full range 86-264VAC input contains output voltage lines of 5V, 12V, 15V, and 24V. This series of power supplies ensure that your requirements are consistently met.
FAQs
Q1. What is the DR-45 designed to power?
The 45W single-output DIN rail unit supplies PLCs, sensors, relays, small controllers and other low-power devices inside control cabinets.
Q2. What input voltage range is supported?
The DR series accepts 85–264VAC or 120–370VDC, allowing use across global AC grids and DC-fed systems.
Q3. What does the “T Type” version of the DR-45 mean?
The DR-45 is offered in a standard version and a T Type version. The two differ in housing profile and mounting design, so the product page should be checked against the cabinet layout.
Q4. What housing material and protections are provided?
The DR series uses a plastic step-shaped housing. Short circuit, overload, overvoltage and over-temperature protection are included.
Q5. What warranty applies to the DR series?
The DR series has a 3-year warranty. Volume pricing and sample requests can be sent through the inquiry form.
