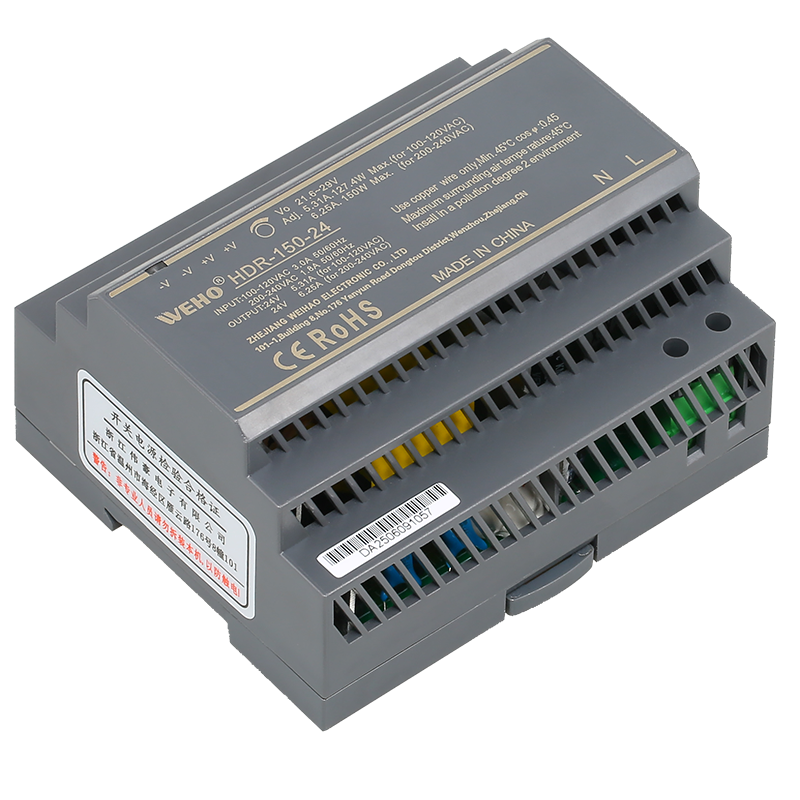

Silm Size HDR-150 150W Din Rail Switching Power Supply

Introducing the WEHO HDR-150 series, a high-performance 150W single-output DIN rail power supply designed for reliability and efficiency. Housed in a compact, ultra-slim body, it saves valuable space in control cabinets. The HDR-150 series features a universal AC input range of 85-264VAC and is also compatible with 120-370VDC, making it a versatile solution for global applications. It is available in various DC output models, including 12V, 15V, 24V, and 48V, to meet your specific power requirements.

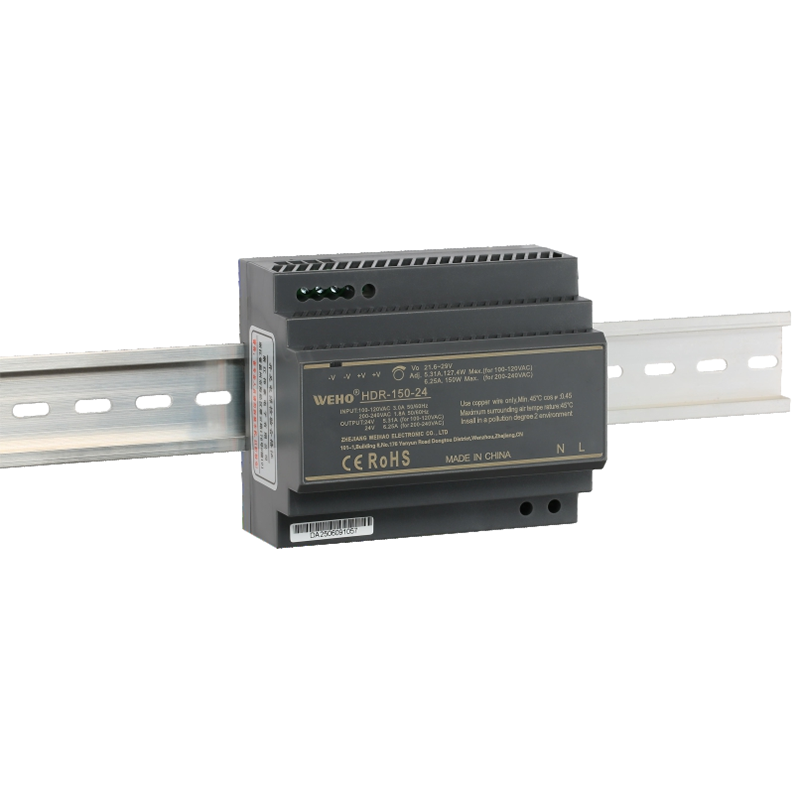

Engineered for industrial environments, this power supply operates efficiently with convection cooling across a wide temperature range of -20°C to +70°C. It includes comprehensive protection against short circuits, overloads, and overvoltages, ensuring the safety and longevity of your equipment. The HDR-150 is easy to install on standard TS35/7.5 or TS35/15 DIN rails. With its robust design and stable performance, the WEHO HDR-150 is the ideal choice for industrial control systems and automation applications.If you have any questions, please do not hesitate to contact us at Email: [email protected]

Download Request A Quote

Description

Summary

Single output: power 150W

Input voltage: 85～264VAC/120～370VDC

General Specification

Specification	Model	HDR-150-12	HDR-150-15	HDR-150-24	HDR-150-48
DC output voltage,current	115VAC	12V 0～10.2A	15V 0～8.55A	24V 0～5.31A	48V 0～2.72A
	230VAC	12V 0～11.3A	15V 0～9.5A	24V 0～6.25A	48V 0～3.2A
Wave and noise		100mVp-P	120mVp-P	150mVp-P	200mVp-P
Inlet wire stability		±1%	±1%	±1%	±1%
Load stability		±1%	±1%	±1%	±1%
Efficiency		0.87	0.88	0.89	0.89
Adjustable range for DC voltage		±10%	±10%	±10%	±10%
Input voltage range		85～264VAC/120～370VDC 47～63Hz
Impact current		Cold start current 35A/115VAC 70A/230VAC
Overload protection		105%～150%cut off the output,automatic recovery
Overvoltage protection		115%～140%rated output power Protection type:Hiccup mode,recovers automatically after fault condition is removed
Setup,rise,hold up time		1500ms,80ms/230VAC 1500ms,80ms/115VAC
Withstand voltage		I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute
Isolation resistance		I/P-O/P I/P-FG O/P-FG:100M Ohms/500VDC/25℃ /70%RH
Working temperature		-20℃~+70℃

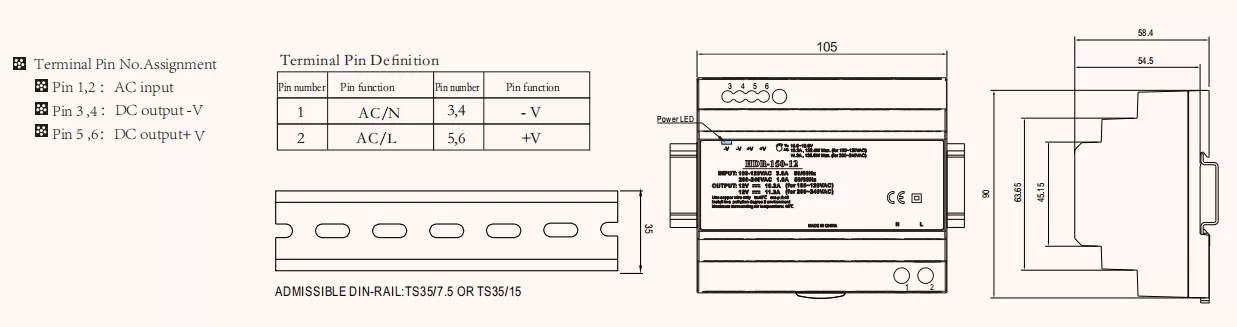

Dimension		105×90×54.5mm
Weight		0.3kg
Packing		/
