Power Supply 12V 24V 36V 48V 500W Switching Power Supply For Led Strip CCTV Camera

In order to meet the needs and expectations of the vast LRS market, WEHO is launching a new higher-power 500W series in its LRS series to make the LRS series more complete.

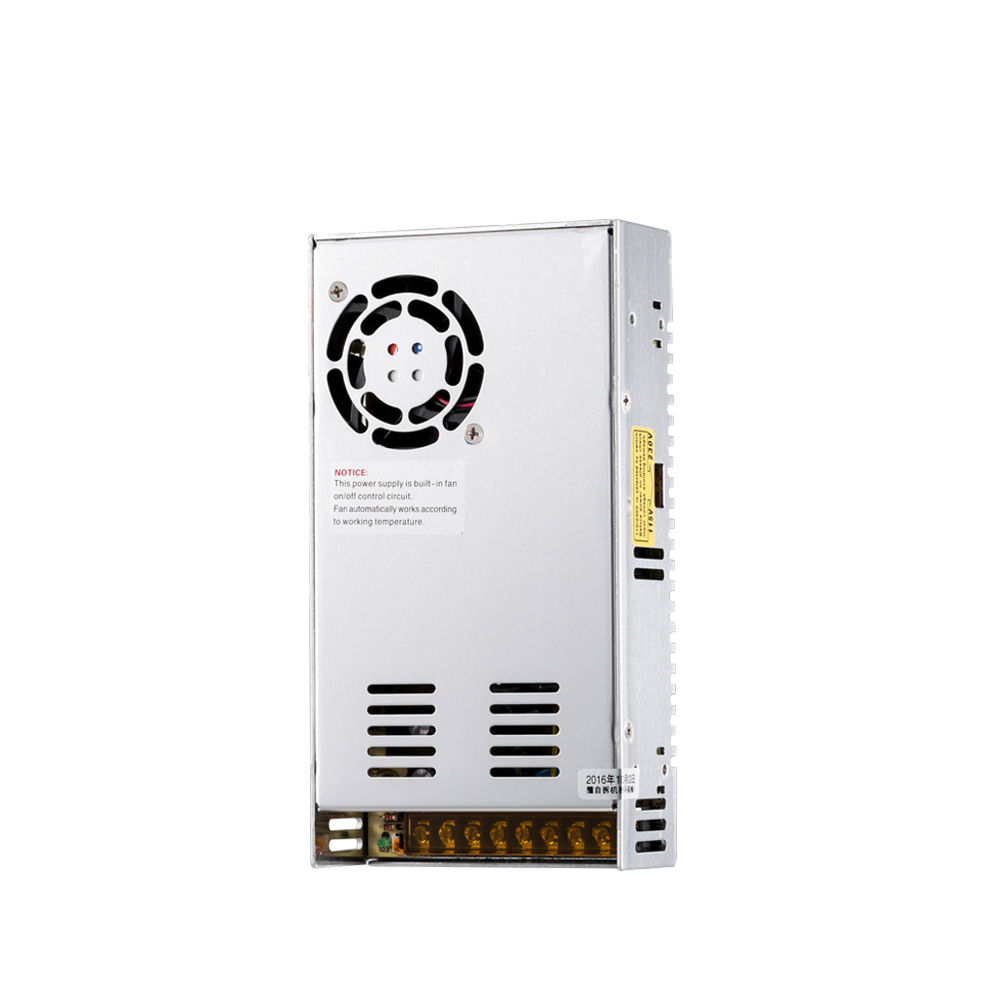

The LRS-500W series adopt an outward FAN cooling dissipation design. This design greatly improves the stability of the product.

This product complies with complete international safety regulations such as CE/BIS and others.

At WEHO, we are adamant about maintaining quality power supplies with a maximum efficiency of 92%.

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

Specification/Model LRS-500-12 LRS-500-24 LRS-500-36 LRS-500-48
DC Output Voltage 12V 24V 36V 48V
DC Output Current 41A 21A 14A 10.5A
Current Range 0-41A 0-21A 0-14A 0-10.5A
DC Output Wattage 492W 504W 504W 504W
Wave And Noise 150mVp-p 180mVp-p 240mVp-p 240mVp-p
Voltage Tolerance ±1.5% ±1% ±1% ±1%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±1% ±0.5% ±0.5% ±0.5%
Efficiency 82.00% 86.00% 87.00% 88.00%
Setup、Rise Time 1500ms, 30ms/230VAC; 2000ms, 50ms/115VAC
Hold Uptime 5ms/230VAC, 5ms/115VAC
Input Voltage Range 95~132VAC/180~264VAC or 255~370VDC
Frequency Range 47~63Hz
Input Current 10A/115V   5.0A/230V
Inrush Current Cold start 35A/115V,65A/230V
Leakage Current <3.5mA/240VAC
Overload 110%~135% hiccup mode recovers automatically after the fault condition is removed
Overvoltage 115%~135% hiccup mode recovers automatically after the fault condition is removed
Over-temperature ≥55℃fan on, ≤45℃fan off, ≥85℃over temperature protection hiccup mode, recovers automatically after fault condition is removed
Withstand Voltage I/P-O/P: 1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/70%RH
Working TEMP. .-10℃~+50℃, 20%~90%RH, No condensation

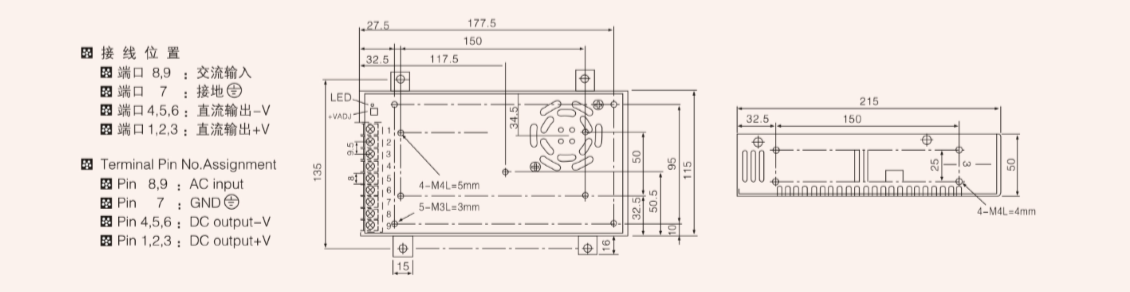

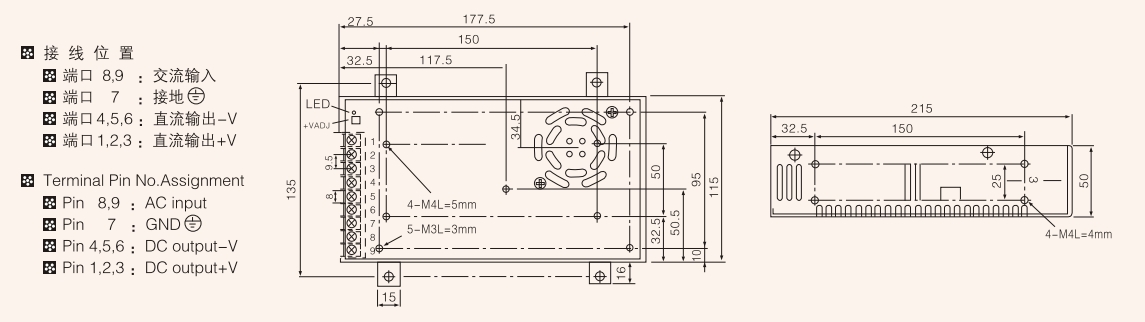

Dimension 215*115*50mm
Weight 1kg

The whole series adopts 115VAC or 230VAC (switch selection) input and provides 12V, 15V, 24V, 36V, and 48V output voltage lines.

The power switch is equipped with a series of short circuit/overload/overvoltage/overtemperature protection functions.

The power switch can withstand temperatures up to 70°C.

The power switch is highly efficient, long-lived, and reliable.

The power switch has surpassed the 100% full load burn-in test.
