| Model | LRS-350-12 | LRS-350-24 | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 29A | 14.6A | |
| Current Rage | 0~29.0A | 0~14.6A | |
| Rated Power | 350W | 350W | |
| Ripple & Noise (max.) (Note 2) | 150mVp-p | 150mVp-p | |
| Voltage ADJ. Range | 10.2~13.8V | 21.6~28.8V | |
| Voltage Tolerance (Note 3) | ±1.0% | ±1.0% | |
| Line Regulation (Note 4) | ±0.5% | ±0.5% | |
| Load Regulation (Note 5) | ±0.5% | ±0.5% | |
| Setup, Rise Time | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
||
| Hold UP Time (Typ.) | 16ms/230VAC 12ms/115VAC at full load |
||
| Input | Voltage Range | 85~132VAC /170~264VAC by switch 240~370VDC (switch on 230VAC) | |
| Frequency Range | 47~63Hz | ||
| Efficiency | 85.00% | 88.00% | |
| AC Current (Typ.) | 6.8A/115VAC 3.4A/230VAC |
||
| Inrush Current (Typ.) | COLD STAR 60A/230VAC | ||
| Leakage Current | <2.0mA/240VAC | ||
| Protection | Over Load | 110~140% rated output power | |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||
| Over Temperature | Shut down the o/p voltage, and re-power on to recover | ||
| Environment | Working Temp | -30~+70℃ | |
| Working Humidity | 20~90% RH non-condensing | ||
| Storage Tem, Humidity | -40~+85℃, 10~95% RH | ||
| Temp Coefficient | ±0.03%/℃ (0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1cycle, 60min. each along the X, Y, and Z axes | ||
| Safety & EMC (Note 7) |
Safety Standards | EN60950-1 | |
| Withstand Voltage | I/P-O/P: 1.5KVAC I/ P-FG: 1.5 KVAC O/P-FG: 0.5 KVAC |
||
| EMC Standards | Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024 | ||
| Others | MTBF | 601Khrs min. MIL-HDBK-217F ( 25 ℃) | |

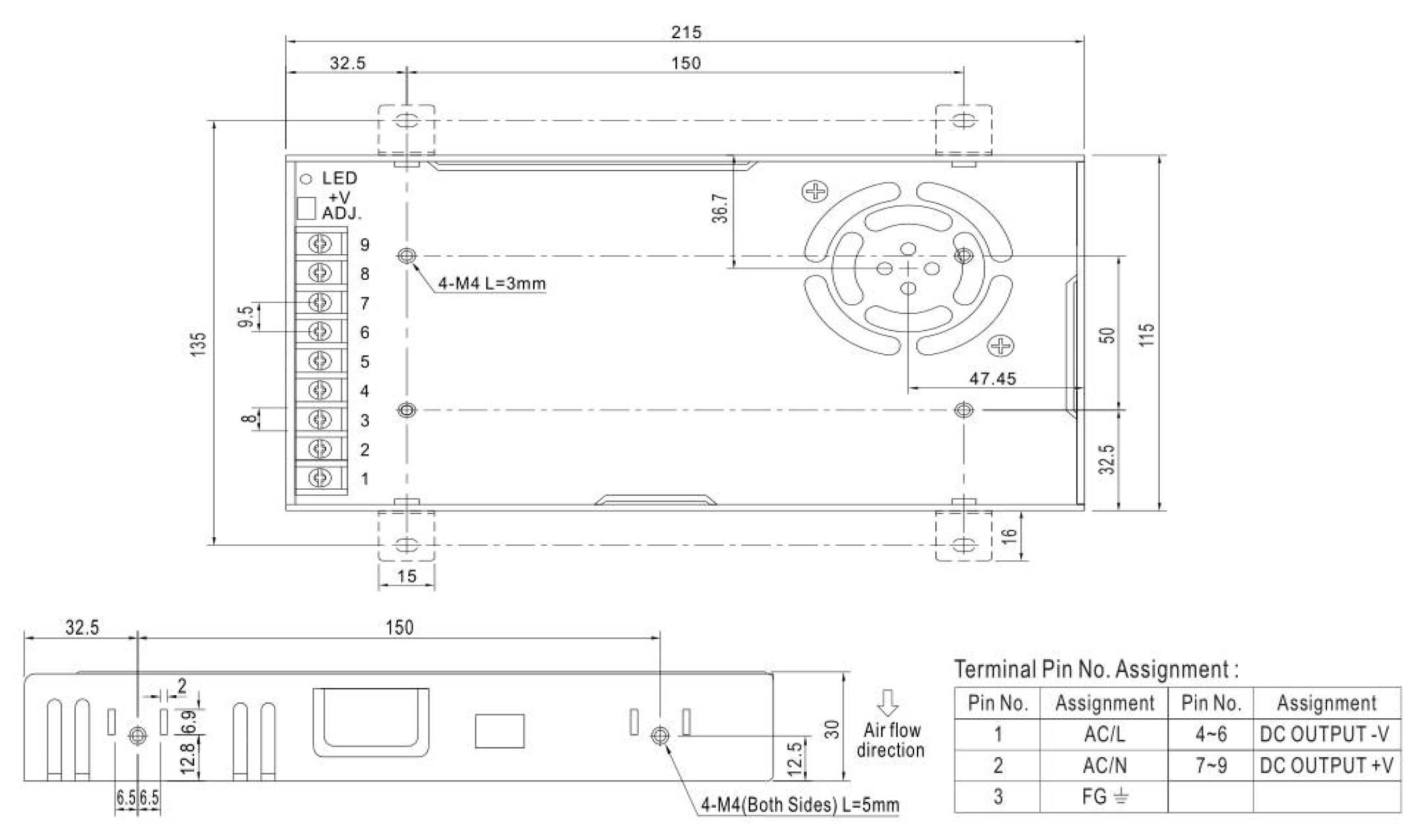

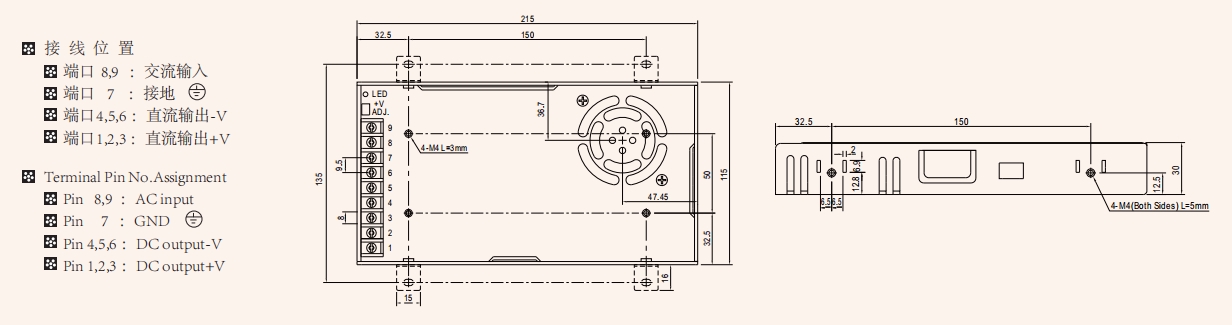

| Dimension | 215*115*30mm (L*W*H) | ||
| Packing | 0.67Kg; 30pcs/20.6Kg/38*25*39CM | ||
LRS series 350w AC to DC single output switching power supply
LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the range 110/220 input selected by the switch, the entire series provides an output voltage line of 5V,12V,15V,24V,36V, and 48V.
Delivering an extremely low no-load power consumption(less than 0.5W), it allows the end system to easily meet the worldwide energy requirement.
LRS-350 series serves as a high-price-to-performance power supply solution for various industrial applications.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V, and 48V.
This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions.
Our products have a long lifespan, are highly reliable, and are very efficient.
The working temperature of the product is up to 70°C.
The product has completed the 100% full load aging test.
