| Model | 12V 36W | 24V 36W | |
| Output | Rated Voltage | 12V | 24V |
| Rated Current | 3A | 1.5A | |
| Output Voltage Range | 11.7-12.2V | 23.7-24.2V | |
| Rated Power | 36W | 36W | |
| Efficiency | >86% | >88% | |
| Ripple And Noise | <180mV | <180mV | |
| Load Adjustment Rate | 1% | ||
| Liner adjustment Rate | 1% | ||
| Input | Input Voltage Range | 100～265V AC | |
| AC Input Current | 0.3A 230V | ||
| PF Value | >0.65 | ||
| Frequency Range | 50-60Hz | ||
| Cold Start Current | 20A/230VAC | ||
| Protection Characteristic |
Power Protection | If the voltage exceeds 105% of the rated output power, the circuit will automatically reduce the output voltage. | |
| Short Circuit Protection | In hiccup mode, it can resume normal operation once the abnormal condition has been rectified. | ||
| Environment | Operating Temperature, Humidity | -40℃~ +70℃ 20%～90%RH | |
| Storage Temperature, Humidity | -40℃~85℃ 10%～95%RH | ||
| Safety Regulations | Withstand Voltage Performance | I/P-O/P: AC2.5KV 5mA 60S; I/P-FG: AC2KV 5mA 60S |
|
| Insulation Impedance | I/P-O/P: 100M ohms/500VDC/25℃ | ||
| Packing | Product Dimension | 117*35*22mm | |
| N.W | 0.12kg | ||
| Amount/G.W/Dimension | 186PCS/22kg/460*340*185mm | ||

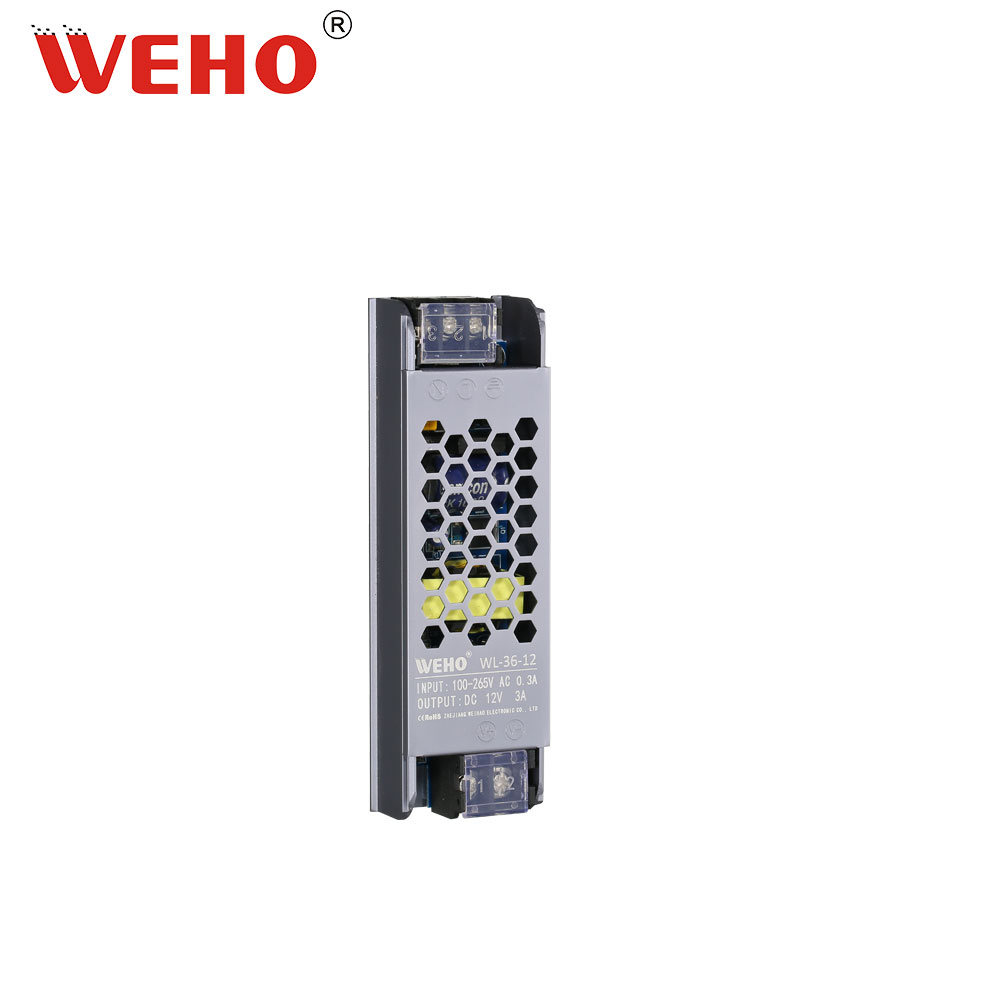

Ultra Thin LED Power Supply DC 12V 24V Lighting Transformers 36W
The Ultra Thin LED Power Supply DC 12V 24V Lighting Transformers 36W is meant for LED Commercial Lighting, such as in restaurants, hotels, shopping malls, airports, parking lots, lightbox billboards, shop signboards, and home decoration lighting.
It can also be used for LED light strips, LED light drivers, luminous words, lightbox posters, line lights, LED wine cabinet lights, etc.
If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.
- Description
Ultra Thin LED Power Supply DC 12V 24V Lighting Transformers 36W
- It is an aluminum alloy casing for easy heat dissipation and natural air cooling.
- It is IP20-rated and suitable for all weather conditions.
- Its ripple noise: ≤200mv, almost silent mode.
- It has an efficiency of 83% (80% load recommended) without exceeding the rated power.
- It has output overvoltage, overcurrent, short circuits, and other safety protection.
- It has an ultra-thin, small size, high-power design.
- The electrical connection is simple, efficient, and safe.
- It has a long service life, high reliability, and a 2-year warranty.
Tips:
1. Maintaining a good ventilation environment is conducive to the heat dissipation of the power supply, which is very important to prolong the service life of the power supply.
2. The connecting wire between the power output and the load should follow the principle of short routing. The connecting wire that is too long or the core is too small will cause a voltage drop on the line, and the loss on the connecting wire will turn into heat, which is easy causes safety hazards. (the grounding wire should follow: 1mm ² 6A current is allowed).
3. A short circuit of the load will cause automatic protection of the power supply and make the power supply unable to work normally.
4. Wiring shall be in strict accordance with the principle of safe use of electricity.
