100% Original 75W single output DIN Rail power switching power supply module

WeHo’s DR-75 series is a single output Din rail type power supply that can be installed on TS-35/7.5 or 15 DIN rails.

Adopting the full range 86-264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V

DR-75 is a reliable switching power supply with high-quality material, durability, and safety to use.

DR-75 has a little higher price to perform power supply solutions for various industrial applications.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Load stability(Note:5)

Model DR-75-12 DR-75-15 DR-75-24 DR-75-48
DC Output Voltage 12V 15V 24V 48V
Output Voltage Range (Note:2) ±2% ±2% ±1% ±1%
Rated Output Current 6.3A 5A 3.2A 1.6A
Output Current Range 0-6.3A 0-5A 0-3.2A 0-1.6A
Wave And Noise (Note:3) 100mVp-p 100mVp-p 150mVp-p 240mVp-p
Inlet Stability (Note:4) ±0.5% ±0.5% ±0.5% ±0.5%
Load Stability (Note:5) ±1% ±1% ±1% ±1%
Efficiency 76% 76% 80% 81%
Adjustable Range For DC Voltage 10.8~13.2V 13.5~16.5V 21.6~26.4V% 43.2~52.8V%
AC Input Voltage Range 85~264VAC 47~63Hz; 120~370VDC
Input Current 1.8A/115V 0.9A/230V
AC Inrush Current Cold-start current 30A/115V 60A/230V
Leakage Current <3.5mA/240VAC
Overload Protection 105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
Over-voltage Protection 13.8~16.2V 13.5~16.5V 27.6~26.4V 43.2~52.8V
Temperature Coefficient ±0.03%/°c(0~50°c)
Setup, Rise, Hold up time 1000ms, 60ms, 50ms/230V
Vibration 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand Voltage Input and output internal:
Input and enclosure: 1.5KvAC,
Output and enclosure: 0.5KvAC
Isolation Resistance Input and output internal: Input and enclosure, Output and enclosure: 500VDC/100MΩ
Working Temperature And Humidity -10°c~+60°c(Refer to output derating curve), 20%~90%RH

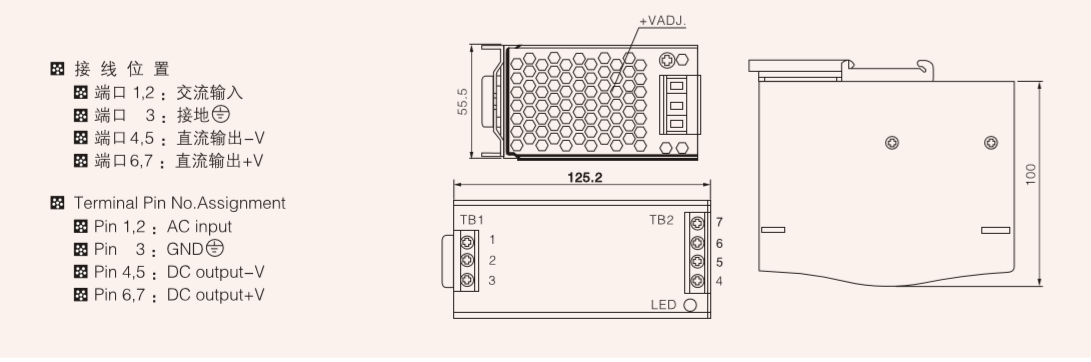

Overall Dimension 55.5×125.2×100mm
Weight 0.551Kgs 20PCS/14Kg/1.1CUFT
Safety Standards Meet UL 1012 requirements (Not apply for the mark)
EMC Standards Meet FCC PART 15 J Conduction class B

The product can be mounted on DIN rail TS-35/7.5 or 15.

Our products have a long lifespan, are highly reliable, and are very efficient.

The working temperature of the modified product is up to 60°C.

DIN RAIL type, easy to install.

The product can be cooled by convection of natural air.

The product is very safe to use.

Our products have CE ROHS certification to ensure quality.

The product has completed the 100% full load aging test.
