150W AC DC Switching Power Supply

Versatile Input Voltage Control: Effortlessly adapt to varying power sources with an input voltage range of 85~132/170~264VAC, easily adjustable using a convenient switch.

Safety Measures: Prioritize safety with a white cap over connectors, providing dust-proof protection and bolstering electrical shock security for worry.

Ultra-Low No-Load Power Consumption: Extremely low no-load power consumption, measuring less than 0.5W.

Robust Shock Resistance: This 150W AC DC Switching Power Supply boasts an impressive 5G shock resistance, providing durability and reliability under challenging conditions.

1U Low Profile: Seamlessly integrate this product into your setup with its 1U low profile.

Efficient Natural Air Cooling: Embrace effective and eco-friendly cooling with convection from natural air. This feature ensures optimal temperature management without the need for additional cooling systems.

The cutting-edge “AC DC Switching Power Supply – LRS-150 Series.”

The LRS-150 series – an ac dc switching power supply, meticulously designed with a sophisticated 30mm low-profile framework. This compact dynamo is meticulously engineered to cater to a spectrum of energy needs with unparalleled precision and efficiency.

Key Advantages:

Dynamic Output Options:

Discover unparalleled versatility with the LRS-150 series, offering a range of output voltage lines from 12- 24V. This  range ensures seamless compatibility across a diverse array of devices and applications.

Sleek Low-Profile Design:

Engineered for optimal efficiency without compromise, the LRS-150’s ultra-slim 30mm profile allows for seamless integration into various setups. This space-saving design optimizes your workspace without sacrificing performance.

Flexibility in Input Range:

Experience unmatched flexibility with a comprehensive 85-264VAC input range. The LRS-150 series is designed to adapt to various power inputs, accommodating the dynamic requirements of your devices.

High-Efficiency Power Delivery:

Elevate your power efficiency with an impressive rating of up to 89%. This ensures that every unit of energy is maximized, minimizing waste and optimizing overall performance.

Enhanced Heat Dissipation:

The thoughtful metallic mesh case design enhances heat dissipation capabilities, promoting not only longevity but also consistent performance under challenging conditions.

Robust Operating Temperatures:

Built to endure extreme temperatures, the LRS-150 series seamlessly operates from -20℃ through 70℃ under air convection, all without the need for an additional fan. This reliability ensures steadfast power supply performance in diverse environments.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model LRS-150-12 LRS-150-24
DC Output Voltage 12V 24V
Rated Output Current 12.5A 6.5A
Output Current Rage 0-12.5A 0-6.5A
Rated  Power 150W 156W
Wave And Noise 150mVp-p 200mVp-p
Voltage ADJ. Range 10.2-13.8V 21.6-28.8V
Voltage Tolerance ±1% ±1%
Line Regulation ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5%
Efficiency 87.5% 89.0%
AC Input Voltage Range 85~132VAC /170~264VAC by switch 240~370VDC (switch on 230VAC)
Input Current 2.8A/115V   1.6A/230V
AC INnrush Current Cold-start  60A/230V
Overload Protection 110%~140% Protection type: Hiccup mode, recovers automatically after the condition recovered
Setup Rise Time  500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
 Hold Up Time 40ms/230VAC, 35ms/115VAC at full load
Withstand Voltage I/P-O/P: 1.5KVAC,
I/P-FG: 1.5KVAC,
Isolation Resistance  I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature -20°C ~ +70°C

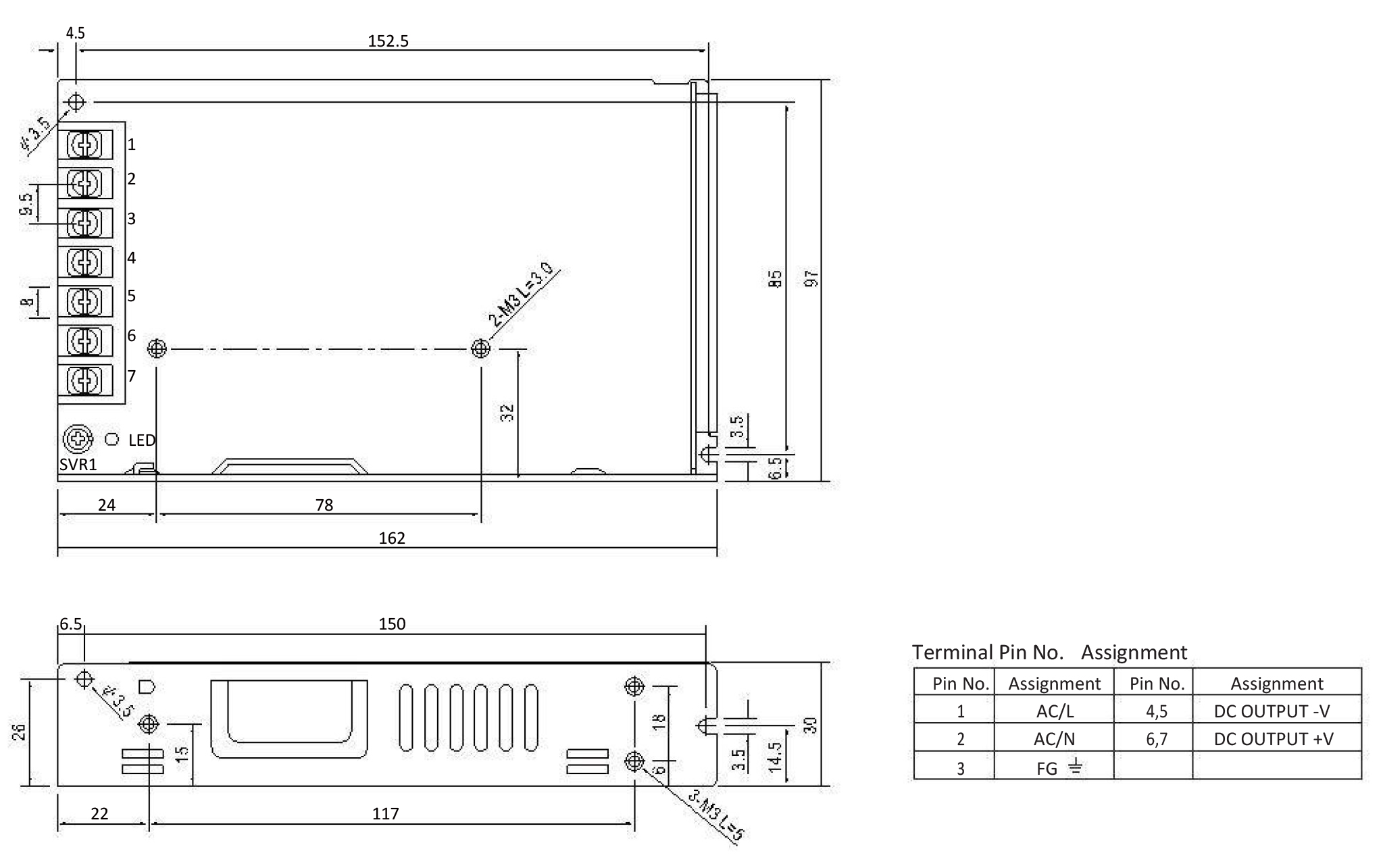

Overall Dimension 162*97*30mm
Safety Standards Meet EN60950
EMC Standards Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024
Weight 0.4Kgs
