LRS series 200w AC to DC single output switching power supply

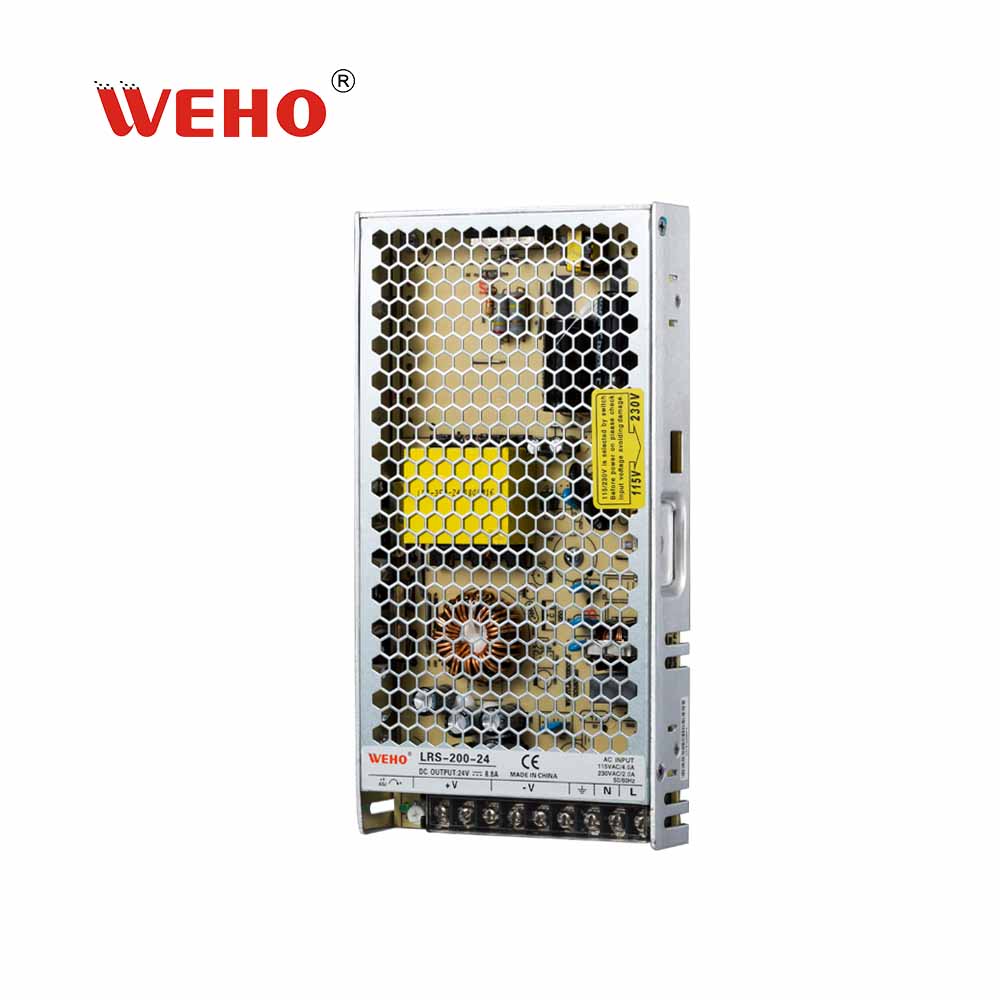

LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design.

Adopting the range 110/220 input selected by a switch, the entire series provides an output voltage line of 5V,12V,15V,24V,36V, and 48V.

Delivering an extremely low no-load power consumption(less than 0.5W), it allows the end system to easily meet the worldwide energy requirement.

LRS-200 series serves as a high-price-to-performance power supply solution for various industrial applications.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model LRS-200-12 LRS-200-24
Output DC Voltage 12V 24V
Rated Current 17.0A 8.8A
Current Rage 0~17.0A 0~8.8A
Rated Power 200W 200W
Ripple & Noise (max.) 150mVp-p 150mVp-p
Voltage ADJ. Range 10.2~13.8V 21.6~28.8V
Voltage Tolerance ±1.0% ±1.0%
Line Regulation ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5%
Setup, Rise Time 500ms, 30ms/230VAC
500ms, 30ms/115VAC
at full load
Hold UP Time (Typ.) 16ms/230VAC
12ms/115VAC
at full load
Input Voltage Range 85~132VAC /170~264VAC by switch 240~370VDC (switch on 230VAC)
Frequency Range 47~63Hz
Efficiency 87.50% 89.00%
AC Current (Typ.) 4.0A/115VAC   2.2A/230VAC
Inrush Current (Typ.) COLD STAR 60A/230VAC
Leakage Current <2.0mA/240VAC
Protection Over Load 110~140% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Environment Working Temp -30~+70℃
Working Humidity 20~90% RH non-condensing
Storage Tem, Humidity -40~+85℃, 10~95% RH
Temp Coefficient ±0.03%/℃ (0~50℃)
Vibration 10~500Hz, 5G 10min./1cycle, 60min. each along the X, Y, and Z axes
Safety & EMC Safety Standards EN60950-1
Withstand Voltage I/P-O/P: 1.5KVAC   I/ P-FG: 1.5 KVAC   O/P-FG: 0.5 KVAC
EMC Standards Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024
Others MTBF 601Khrs min. MIL-HDBK-217F ( 25 ℃)

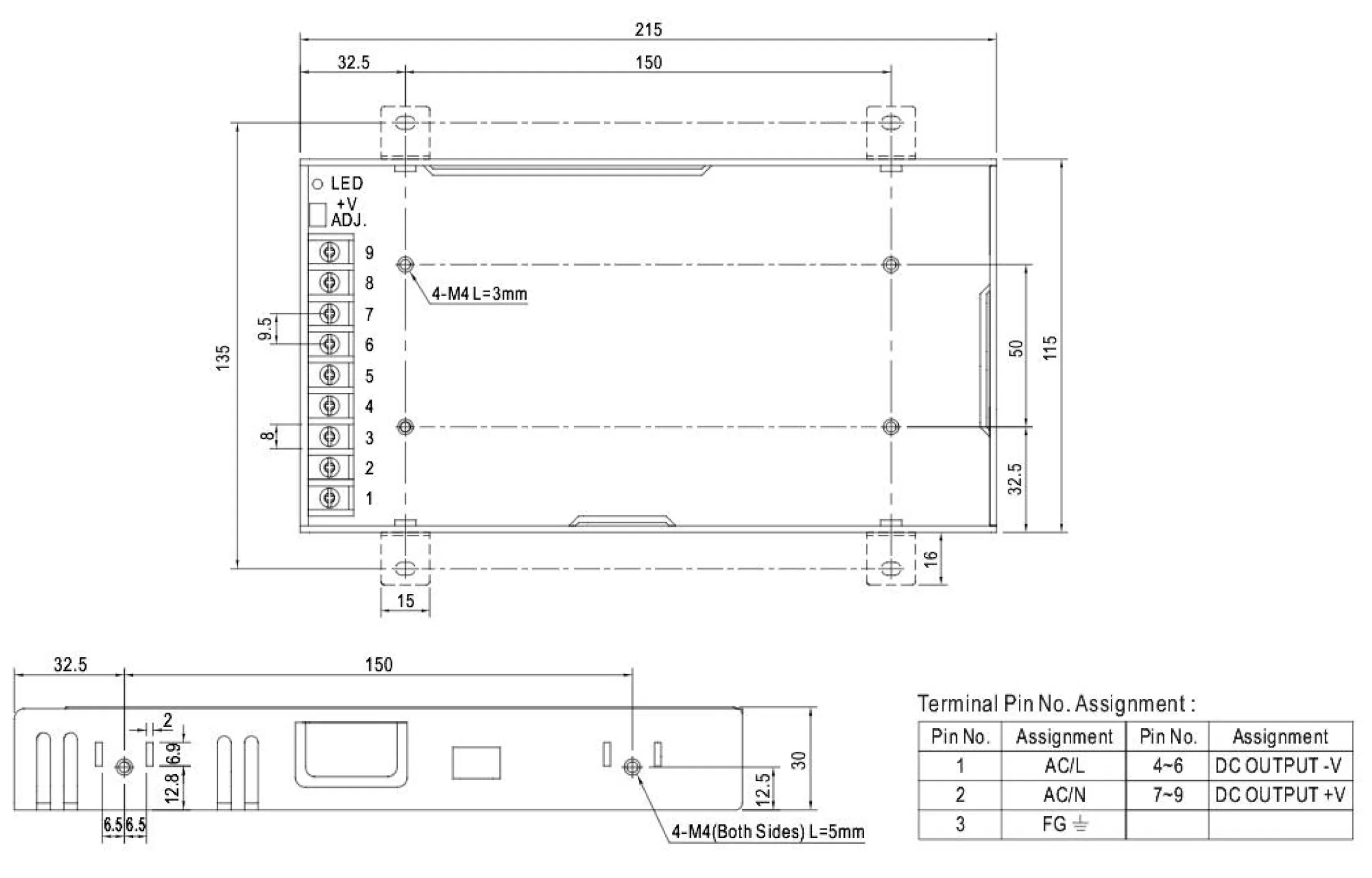

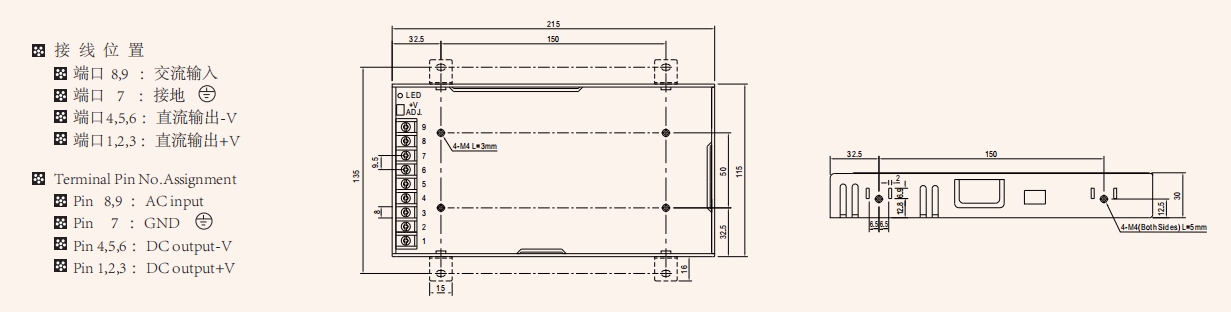

Dimension 215*115*30mm (L*W*H)
Packing 0.66Kg

This product is designed to resist up to 300VAC surge input for 5 seconds.

The working temperature of the product is up to 70°C.

This product is equipped with an AC input range selected by a switch.

The product can be cooled by convection of natural air.

The product has perfect protection function and 5G shock resistance.
