100W AC to DC Single Output Switching Power Supply

Dual Output Options: The 100W AC to DC Single Output Switching Power Supply comes in two models, LRS-100-12 and LRS-100-24, offering a choice between 12V and 24V output voltage options.

Reliable Performance: The power supply boasts a high efficiency rating of 88.0% for LRS-100-12 and 90.0% for LRS-100-24, ensuring optimal energy conversion and reducing power wastage.

Stable Output: With a voltage tolerance of ±1%, line regulation of ±0.5%, and load regulation of ±0.5%, this power supply ensures a stable and consistent output voltage for your devices.

Compact Design: The overall dimensions of 134*97*30mm make this power supply compact and space-saving, making it suitable for various installation environments.

Safety and Compliance: The power supply meets safety standards EN60950 and EMC standards EN55022, EN61000-3-2, EN61000-3-3, and EN55024, ensuring reliability and compliance with industry regulations.

Overload Protection: The power supply features overload protection, offering 110%~140% protection type with a hiccup mode that automatically recovers after the condition is resolved.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

The 100W AC to DC Single Output Switching Power Supply, available in models LRS-100-12 and LRS-100-24, is a reliable and efficient power supply solution. With a DC output voltage of either 12V or 24V, and rated output currents ranging from 4.5A to 8.5A, this power supply can efficiently deliver the necessary power for various applications.

Featuring an impressive efficiency of up to 90.0% and minimal wave and noise levels, this power supply ensures stable and clean power delivery. The voltage adjustment range and tolerance provide flexibility in adapting to different voltage requirements, while the excellent line and load regulation ensure consistent performance.

With built-in overload protection that automatically recovers after conditions are restored, this power supply offers peace of mind against unexpected power surges or fluctuations. It also boasts a fast setup rise time and hold-up time for optimal performance under full load.

Designed with safety in mind, this power supply meets EN60950 safety standards and complies with EMC standards such as EN55022, EN61000-3-2, EN61000-3-3, and EN55024. Its compact overall dimensions make it suitable for various installations, while its working temperature range of -30°C to +70°C ensures reliable operation even in challenging environments.

Model LRS-100-12 LRS-100-24
DC Output Voltage 12V 24V
Rated Output Current 8.5A 4.5A
Output Current Rage 0-8.5A 0-4.5A
Rated  Power 102W 108W
Wave And Noise 120mVp-p 150mVp-p
Voltage ADJ. Range 10.2-13.8V 21.6-28.8V
Voltage Tolerance ±1% ±1%
Line Regulation ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5%
Efficiency 88.0% 90.0%
AC Input Voltage Range AC85~264V 47~63Hz; 240~373VDC
Input Current 1.9A/115V
AC INnrush Current Cold-start  50A/230V
Overload Protection 110%~140% Protection type: Hiccup mode, recovers automatically after the condition recovered
Setup Rise Time 500ms, 30ms/230VAC
500ms, 30ms/115VAC
at full load
 Hold Up Time 55ms/230VAC,
at full load
Withstand Voltage I/P-O/P: 1.5KVAC
Isolation Resistance  I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature -30°C~+70°C

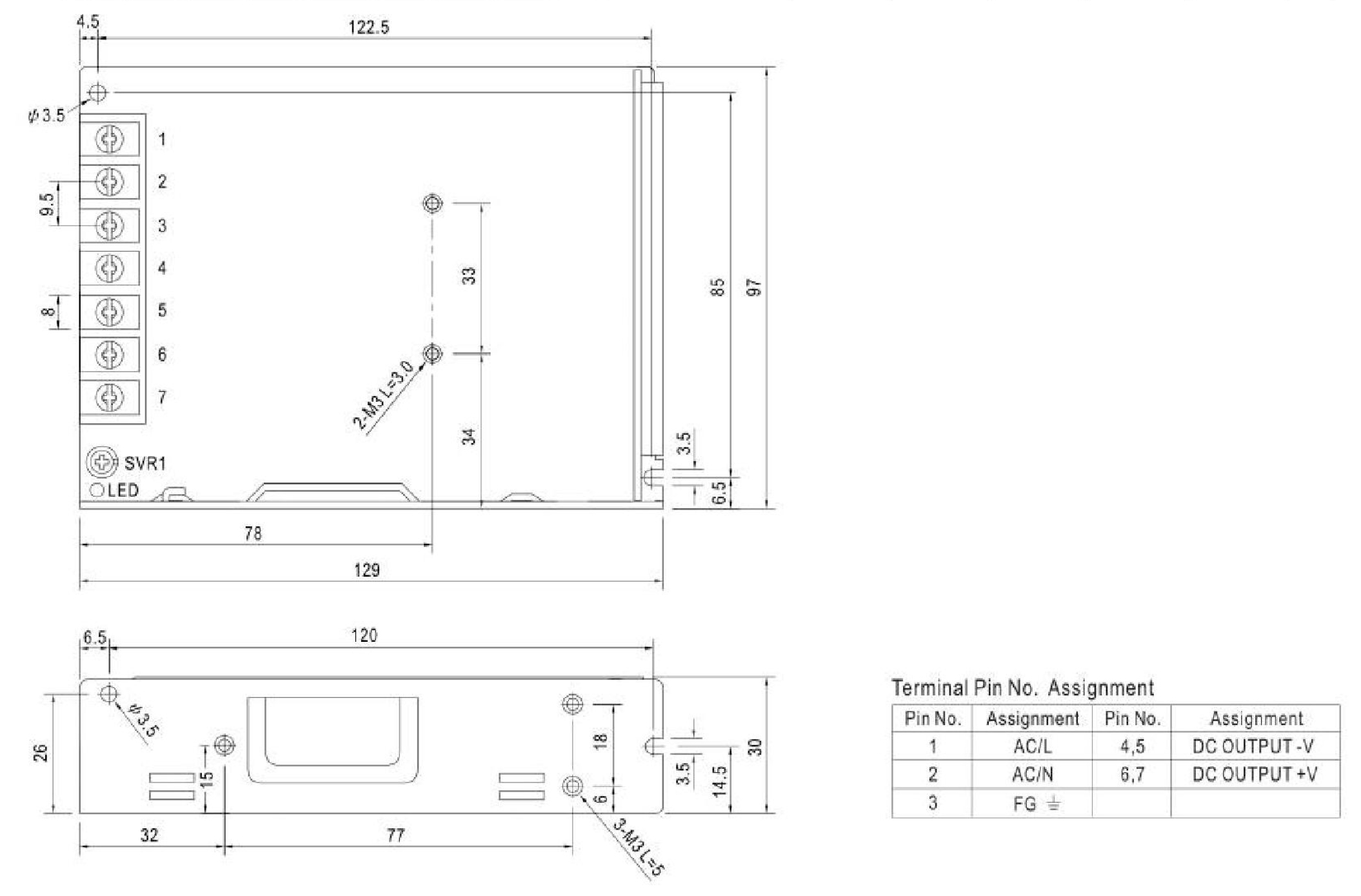

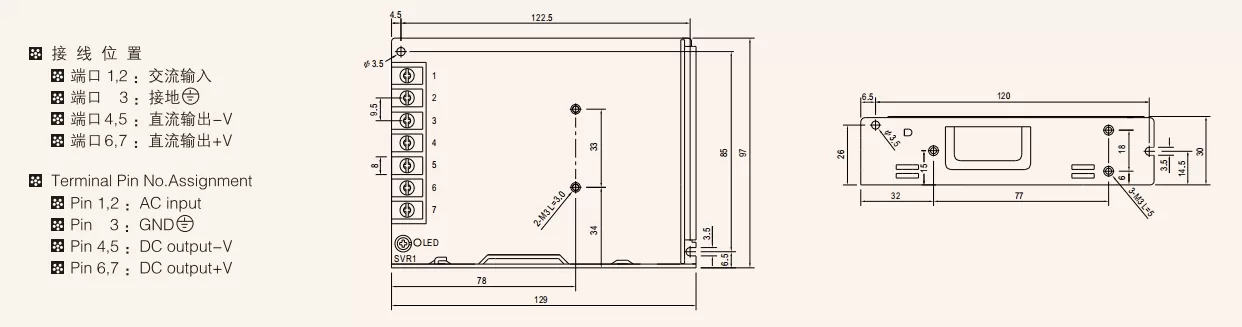

Overall Dimension 134*97*30mm
Safety Standards Meet EN60950
EMC Standards Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024
Weight 0.3Kgs
