LRS series 50w AC to DC single output switching power supply

LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design.

Adopting the full range 85-264VAC input, the entire series provides an output voltage line of 5V,12V,15V,24V,36V, and 48V.

In addition to the high efficiency of up to 89%, the design of the metallic mesh case enhances the heat dissipation of LRS-50 and the whole series operates from -20℃ through 70℃ under air convection without a fan.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model	LRS-50-12	LRS-50-24
DC Output Voltage	12V	24V
Rated Output Current	4.2A	2.2A
Output Current Rage	0-4.2A	0-2.2A
Rated Power	50W	50W
Wave And Noise	120mVp-p	150mVp-p
Voltage ADJ. Range	10.2-13.8V	21.6-28.8V
Voltage Tolerance	±1%	±1%
Line Regulation	±0.5%	±0.5%
Load Regulation	±0.5%	±0.5%
Efficiency	86%	88%
AC Input Voltage Range	AC85~264V 47~63Hz; 240~373VDC
Input Current	0.95A/115V 0.56A/230V
AC INnrush Current	Cold-start 45A/230V
Overload Protection	110%~140% Protection type: Hiccup mode, recovers automatically after the condition recovered
Setup Rise Time	500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
Hold Up Time	30ms/230VAC 12ms/115VAC at full load
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature	-30°C ~ +70°C

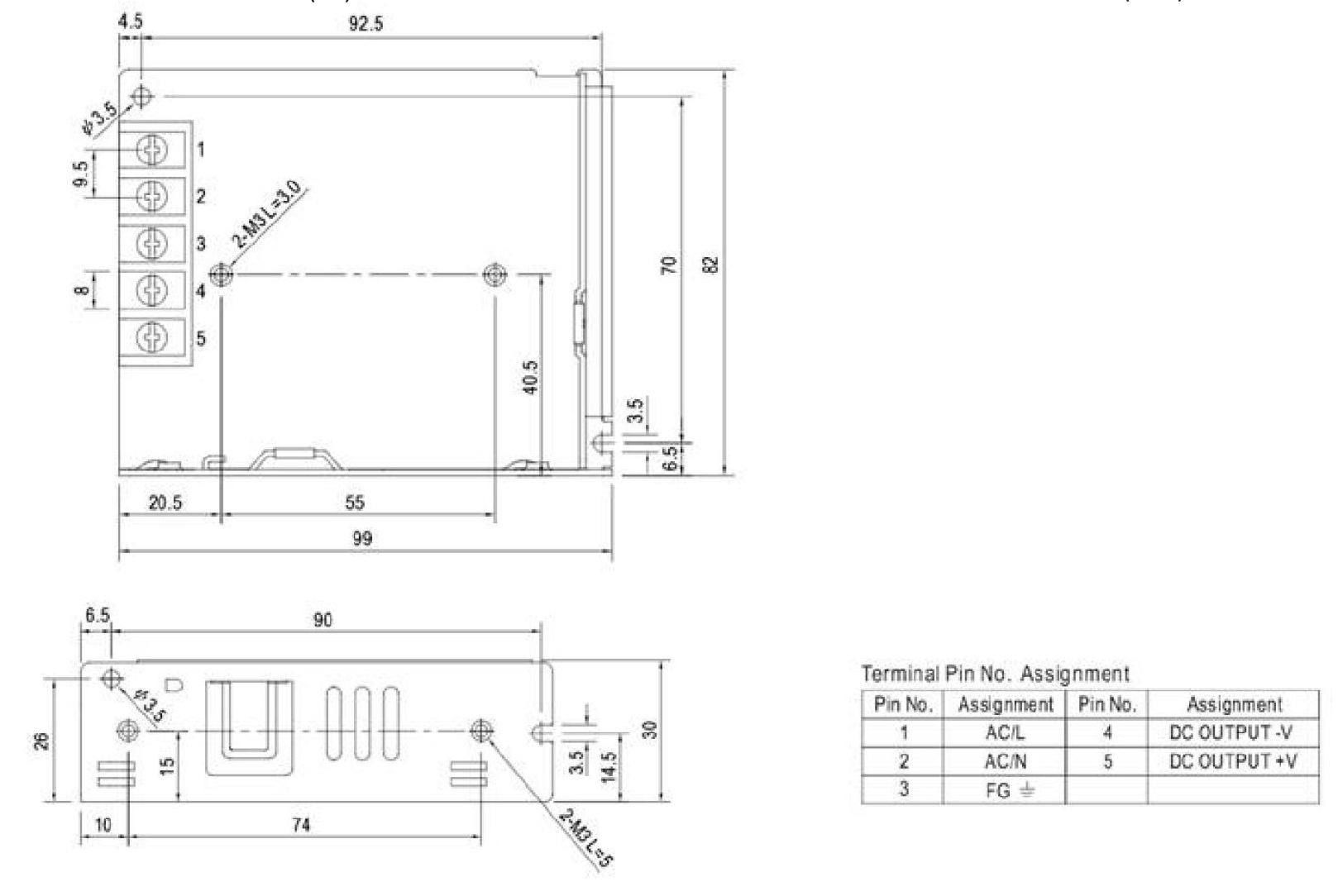

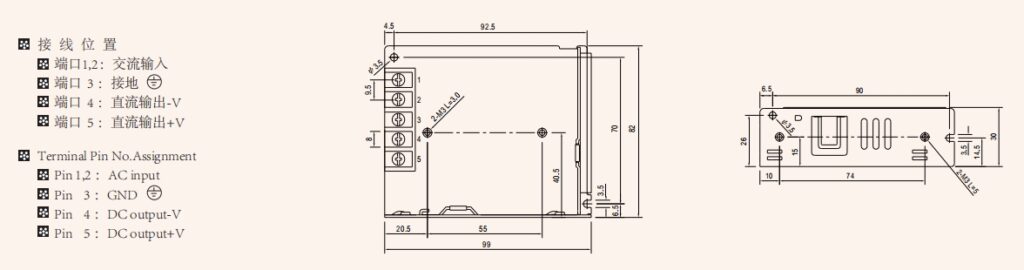

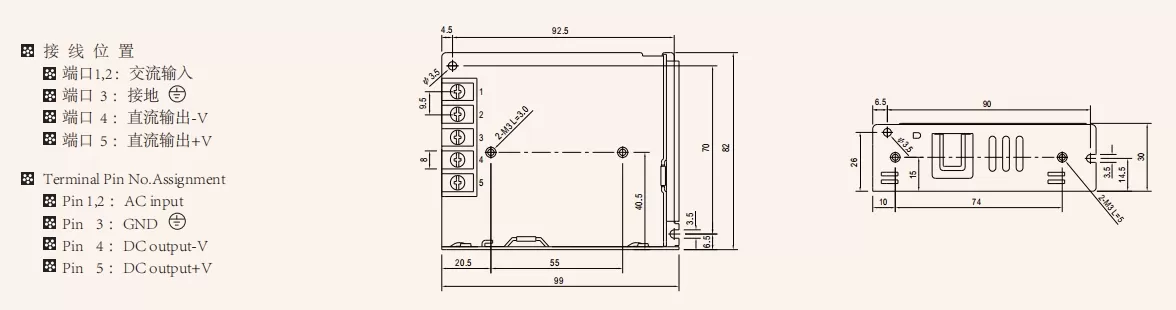

Overall Dimension	998330mm
Safety Standards	Meet EN60950
EMC Standards	Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024
Weight	0.2Kgs
