| Model | LRS-35-12 | LRS-35-24 |
| DC Output Voltage | 12V | 24V |
| Rated Output Current | 3A | 1.5A |
| Output Current Rage | 0-3A | 0-1.5A |
| Rated Power | 35W | 35W |
| Wave And Noise | 120mVp-p | 150mVp-p |
| Voltage ADJ. Range | 10.2-13.8V | 21.6-28.8V |
| Voltage Tolerance | ±1% | ±1% |
| Line Regulation | ±0.5% | ±0.5% |
| Load Regulation | ±0.5% | ±0.5% |
| Efficiency | 86% | 86% |
| AC Input Voltage Range | AC85~264V 47~63Hz; 240~373VDC | |
| Input Current | 0.7A/115V 0.42A/230V |
|
| AC Inrush Current | Cold-start 45A/230V | |
| Overload Protection | 110%~140% rated output power Protection type: Hiccup mode recovers automatically after the condition is recovered | |
| Setup Rise Time | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
|
| Hold Up Time | 30ms/230VAC 12ms/115VAC at full load |
|
| Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC |
|
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH | |
| Working Temperature | -30°C ~ +70°C | |

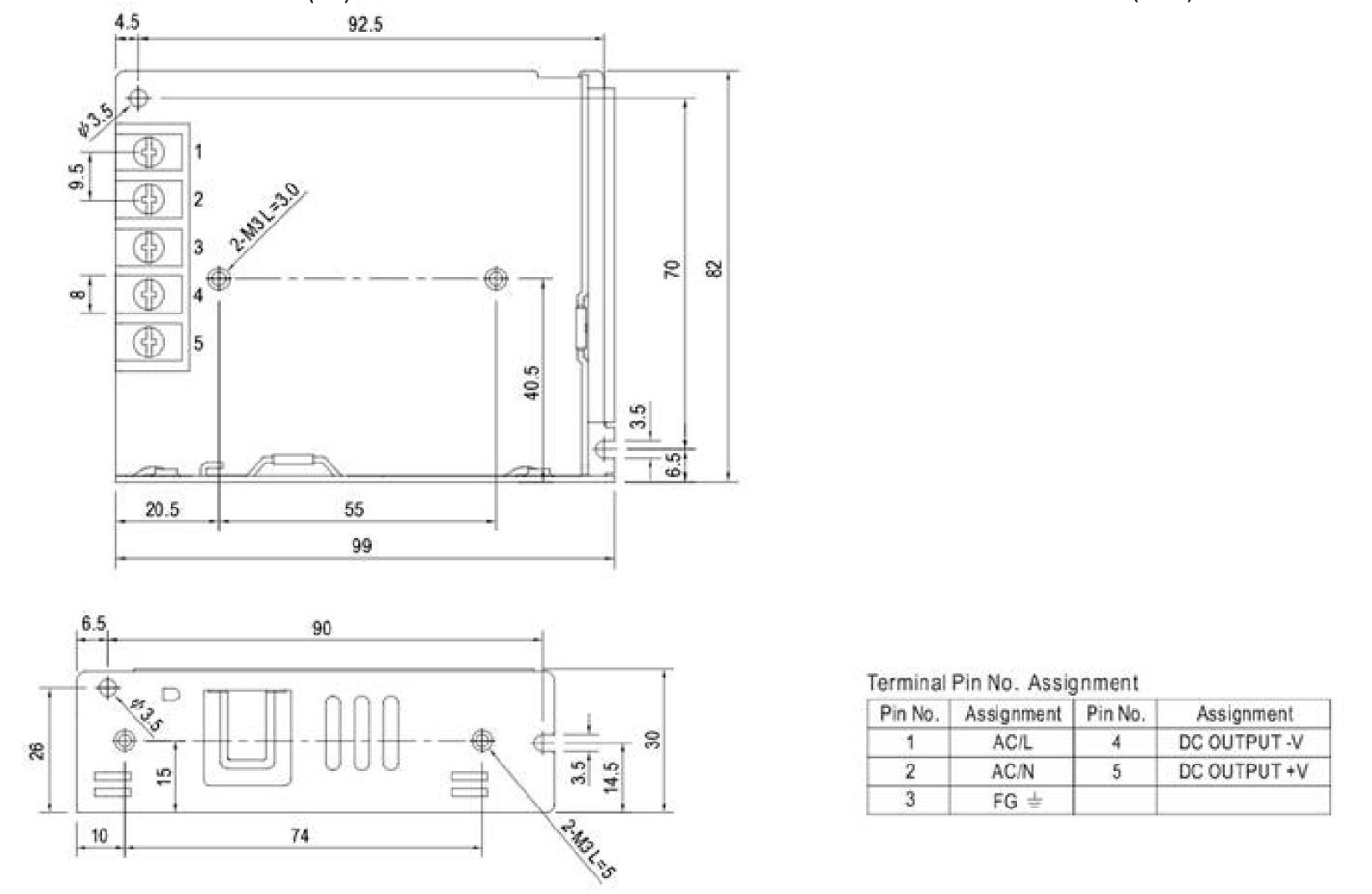

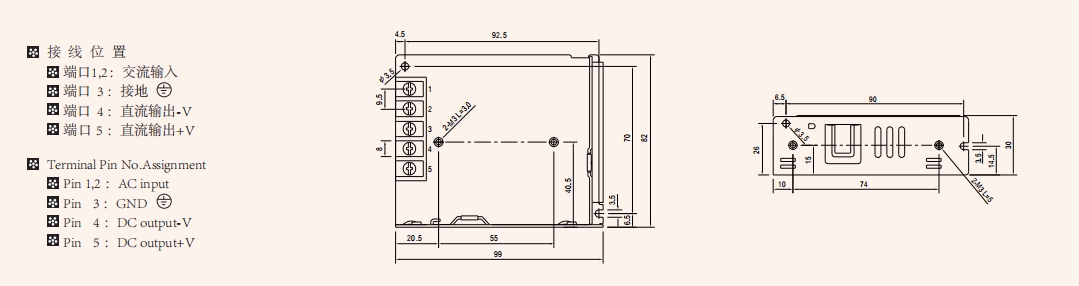

| Overall Dimension | 99*83*30mm | |
| Safety Standards | Meet EN60950 | |
| EMC Standards | Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024 | |
| Weight | 0.2Kgs | |
LRS series 35w AC to DC single output switching power supply
LRS-35 series is a 35W single-output enclosed type power supply with 30mm of low profile design.
Adopting the full range 85-264VAC input, the entire series provides an output voltage line of 5V,12V,15V,24V,36V, and 48V.
In addition to the high efficiency of up to 89%, the design of the metallic mesh case enhances the heat dissipation of LRS-35 and the whole series operates from -20℃ through 70℃ under air convection without a fan.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions
This product has a full range of input voltage 85-264VAC.
This product is miniature size and 1U low profile.
The no-load power consumption of this product is <0.2W.
The product can be cooled by convection of natural air.
