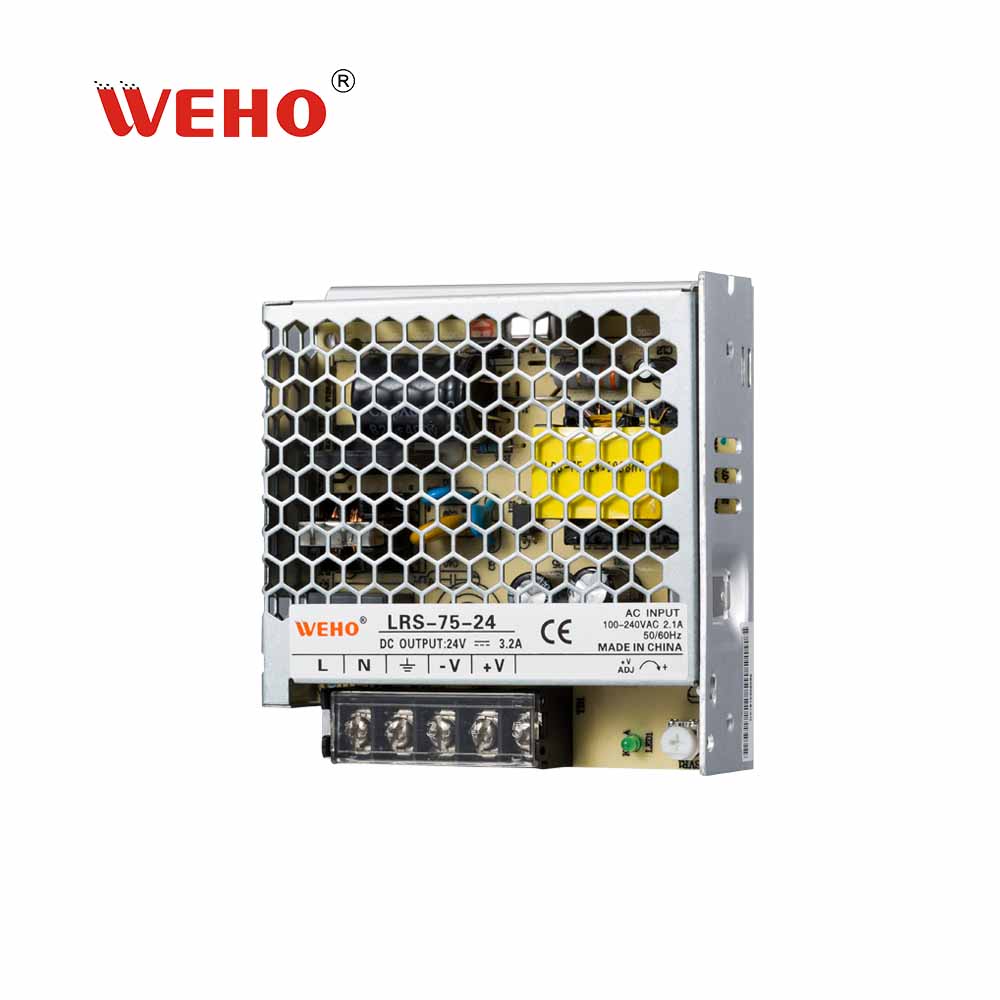

75W Power Supply AC to DC Single Output

Single Output: With a single output of DC voltage, this power supply can be used to power a wide range of devices, such as cameras, routers, LED lights, and more.

Universal Compatibility: The power supply is compatible with a wide range of devices, thanks to its adjustable voltage output and multiple DC adapter plugs.

Constant and Stable Output: The power supply ensures a constant and stable output voltage, which is essential for the proper functioning of electronic devices and to prevent damage.

Overload and Short Circuit Protection: Designed with built-in overload and short circuit protection, this power supply safeguards your devices from any electrical damage.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

With the compact size and robust design, this 75W power supply meets all safety and EMC standards. With two different models available – LRS-75-12 and LRS-75-24 – you can choose the output voltage that suits your specific needs. Both models offer excellent performance in terms of wave and noise control, voltage tolerance, line regulation, and load regulation.

The LRS-75 also offers overload protection, ensuring that it automatically recovers after an overload condition. With its compact size (104*97*30mm) and working temperature range of -30°C to +70°C, this power supply can be easily installed in various applications while maintaining optimal performance.

Whether you need a power supply for industrial equipment or electronic devices, the 75W Power Supply AC to DC Single Output is the ideal choice for providing stable and efficient power in a compact design.

Model LRS-75-12 LRS-75-24
DC Output Voltage 12V 24V
Rated Output Current 6A 3.2A
Output Current Rage 0-6A 0-3.2A
Rated  Power 75W 75W
Wave And Noise 120mVp-p 150mVp-p
Voltage ADJ. Range 10.2-13.8V 21.6-28.8V
Voltage Tolerance ±1% ±1%
Line Regulation ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5%
Efficiency 89.0% 90.0%
AC input Voltage Range AC85~264V 47~63Hz; 240~373VDC
Input Current 1.4A/115V
AC INnrush Current Cold-start  50A/230V
Overload Protection 110%~140% Protection type: Hiccup mode, recovers automatically after the condition recovered
Setup Rise Time 500ms, 30ms/230VAC
500ms, 30ms/115VAC
at full load
 Hold Up Time 40ms/230VAC,
at full load
Withstand Voltage I/P-O/P: 1.5KVAC
Isolation Resistance  I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature -30°C ~ +70°C

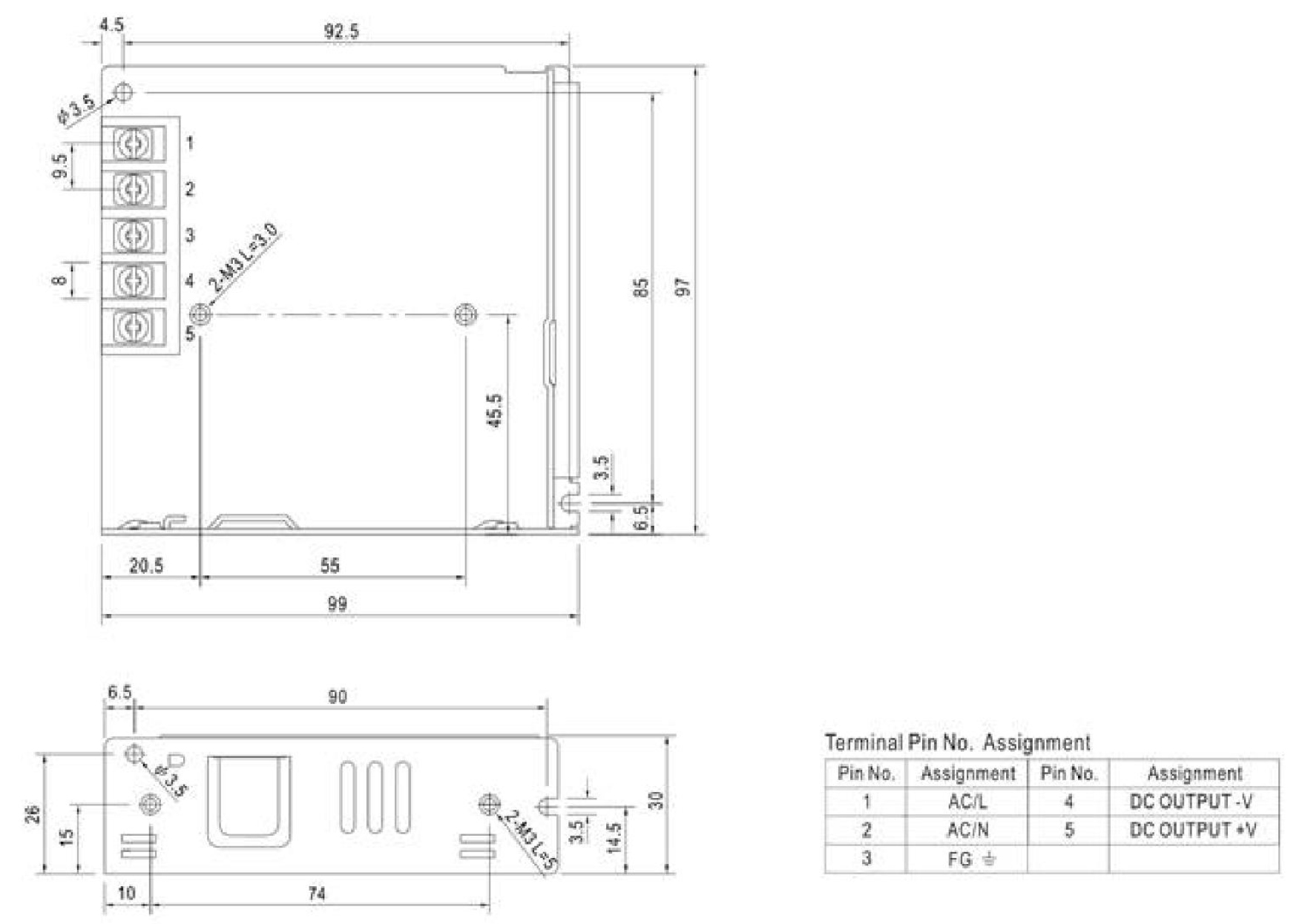

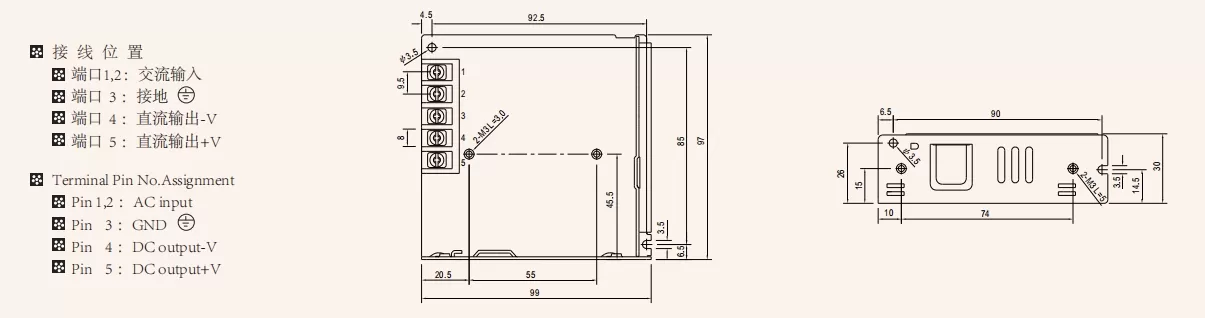

Overall Dimension 104*97*30mm
Safety Standards Meet EN60950
EMC Standards Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024
Weight 0.22Kgs
