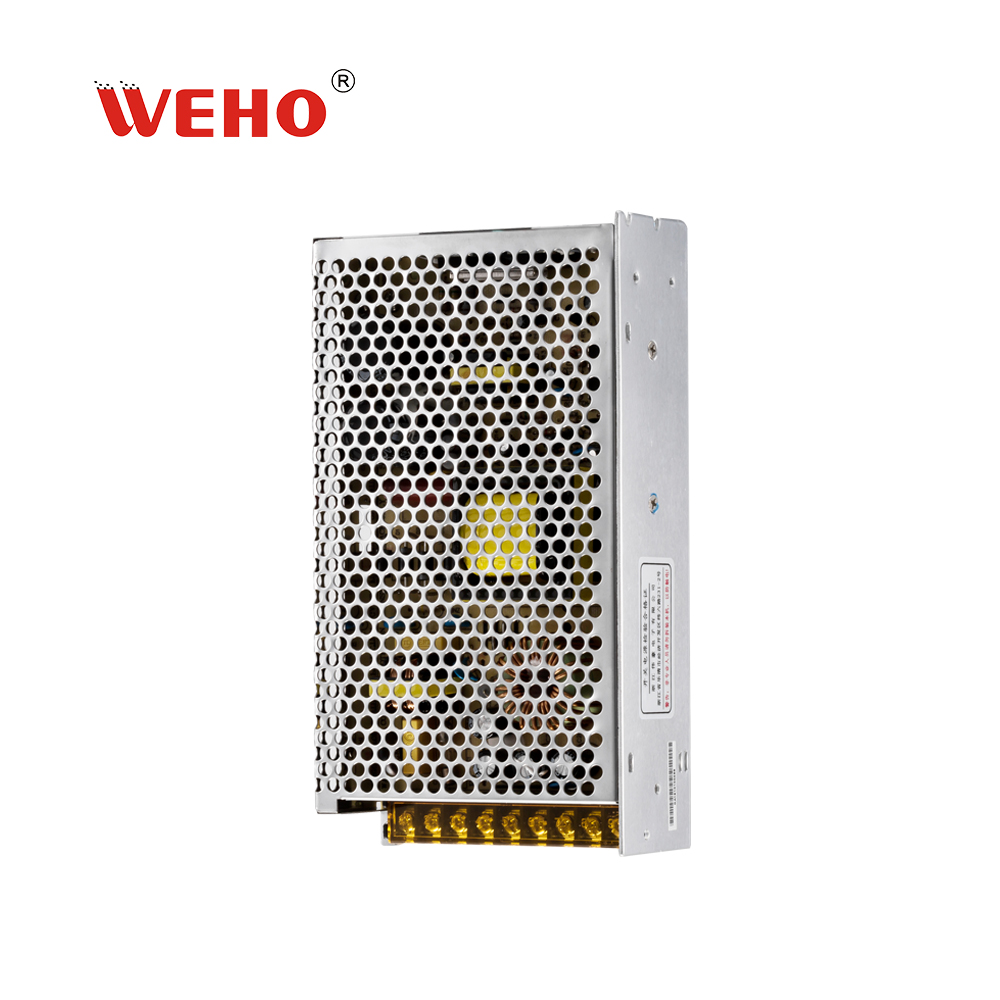

S-200W series normal single switching power supply

WeHo’s S-200W Switching Power Supply is the most widely used power supply among WeHo products.

It has high efficiency, stable quality, and a wide range of uses.

It can be used in LED, industry, automation, industrial control, monitoring, network communication and other fields.

110V/220V AC input range, cooling by free air convection.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model S-200-5 S-200-12 S-200-24 S-200-48
DC Output Voltage 5V 12V 24V 48V
Rated Output Current 40A 16.7A 8.3A 4.2A
Output Current Range 0-40A 0-16.7A 0-8.3A 0-4.2A
Wave And Noise 100mVp-p 100mVp-p 150mVp-p 150mVp-p
Inlet Stability ±0.5% ±0.5% ±0.5% ±0.5%
Load Stability ±1% ±0.5% ±0.5% ±0.5%
Efficiency 80% 85% 85% 86%
Adjustable Range For DC Voltage ±10% ±10% ±10% ±10%
AC Input Voltage Range 85~132VAC/176~264VAC selected by switch
Input Current 4.5A/115VAC 2.5A/230VAC
AC INnrush Current Cold-start current 20A/115V 35A/230V
Over Load Protection 105%~150% rated output power
Protection: Hiccup mode, recover automatically
Over Voltage Protection 5.6~6.6V 13.8~16V 27.5V~32V 55~64V
Protection: Shut down the output voltage
Setup Rise Hold-Up Time 200s, 100ms, 20ms
Working Temperature And Humidity -10°C~+60°C, 20~90%RH

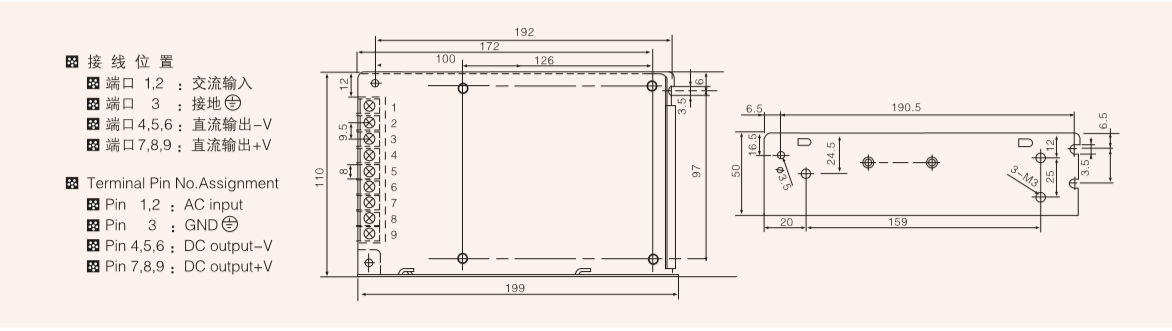

Overall Dimension 199*110*50mm /20pcs per carton
Safety Standards Design refer to UL1012,EN60950-1, EN61347-1, EN-61347-2 approved
EMC Standards EN55015, EN55022, EN55024, EN61000-2, EN61000-3, EN61547 approved
Weight 0.85Kgs

The white cap on the connector is for safety precautions against electric shock and dust protection

This product’s input voltage: 90-132/180-264VAC, changed by switch

This product is designed to resist up to 1.5KV surge input for 5 seconds.

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions

This product with inner DC Fan for direct quick heat rejection

The product has completed the 100% full load aging test.

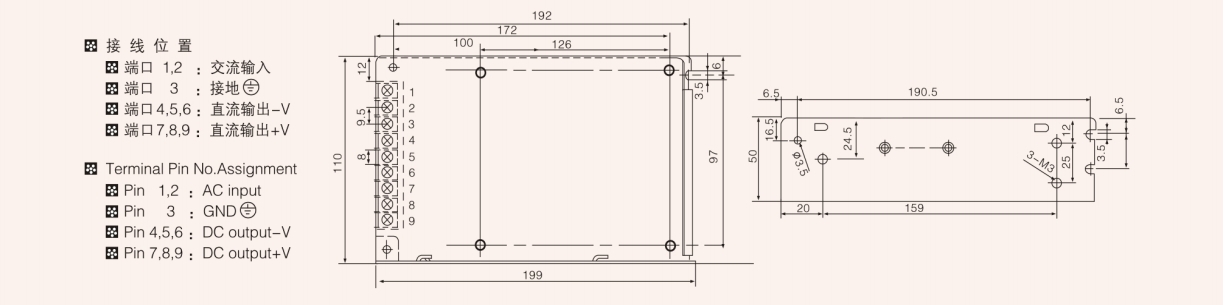

Product size: 199*110*50mm (L * W * H)
