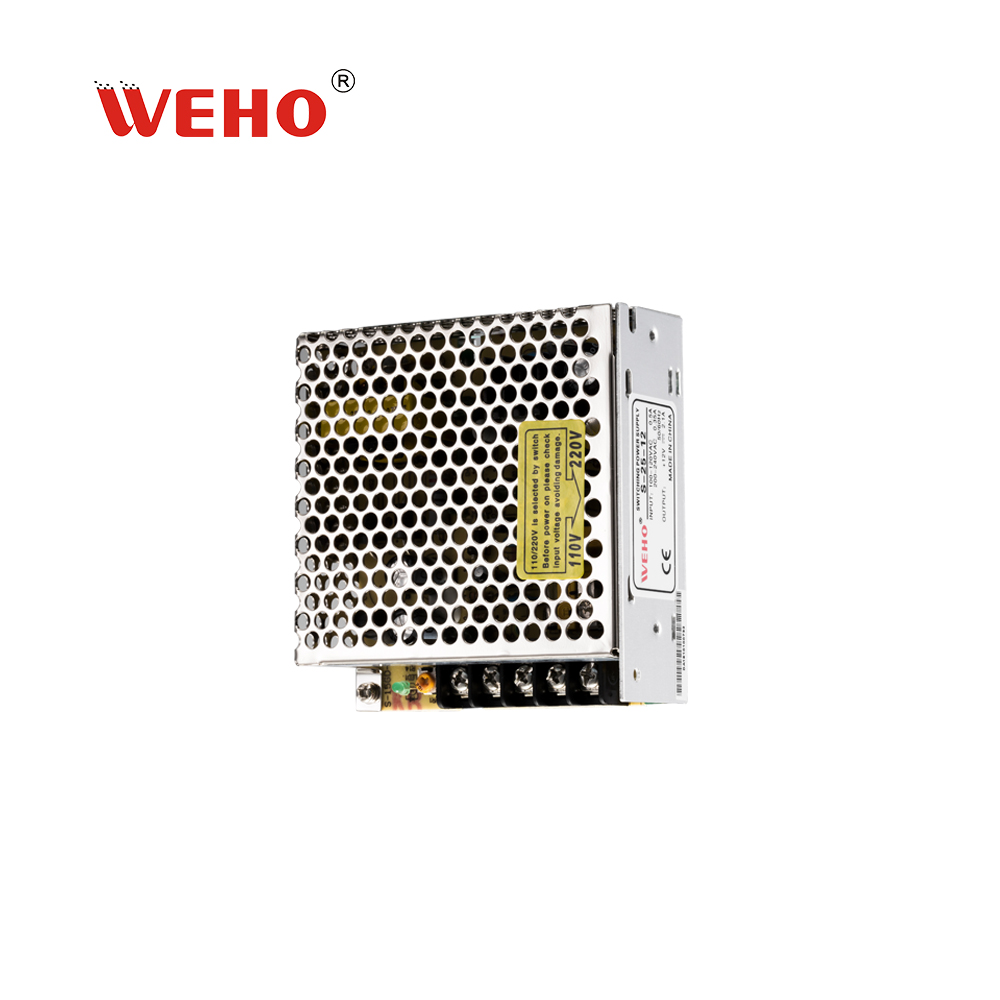

S-25W series normal single switching power supply

WeHo’s S-25W Switching Power Supply is a reliable switching power supply with high-quality material, durable and safe to use.

A Switching Power Supply that can keep the voltage stable.

Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply

110V/220V AC input range, cooling by free air convection.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model S-25-5 S-25-12 S-25-15 S-25-24
DC Output Voltage 5V 12V 15V 14V
Rated Output Current 5A 2.1A 1.67A 1.1A
Output Current Rage 0-5A 0-2.1A 0-1.67A 0-1.1A
Wave And Noise 50mVp-p 50mVp-p 75mVp-p 100mVp-p
Inlet Stability ±0.5% ±0.5% ±0.5% ±0.5%
Load Stability ±1% ±0.5% ±0.5% ±0.5%
Efficiency 70% 76% 78% 78%
Adjustable Range For DC Voltage ±10% ±10% ±10% ±10%
AC Input Voltage Range AC90~240V 180~264VDC by switch:  47~63Hz;
Input Current 0.5A/115V
AC INnrush Current Cold-start current: 15A/115V
Overload Protection 105%~150%
Type: Foldback current limiting
Reset: auto-recovery
Over-Voltage Protection
Setup Rise Hold-Up Time 200s, 100ms, 30ms
Working Temperature -10°C ~ +50°C

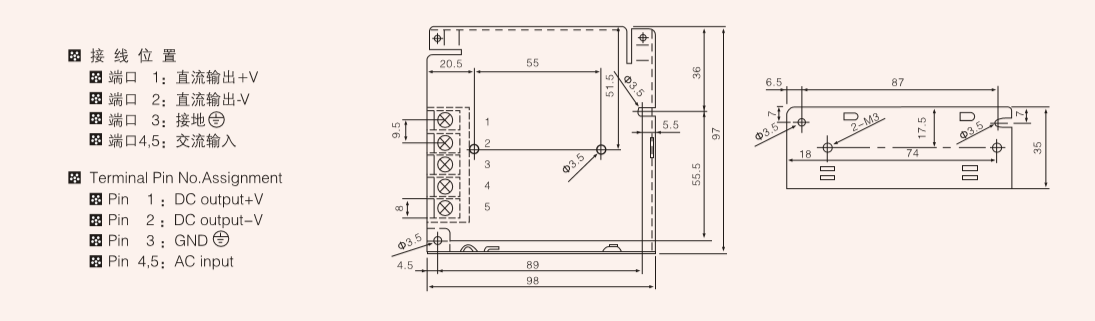

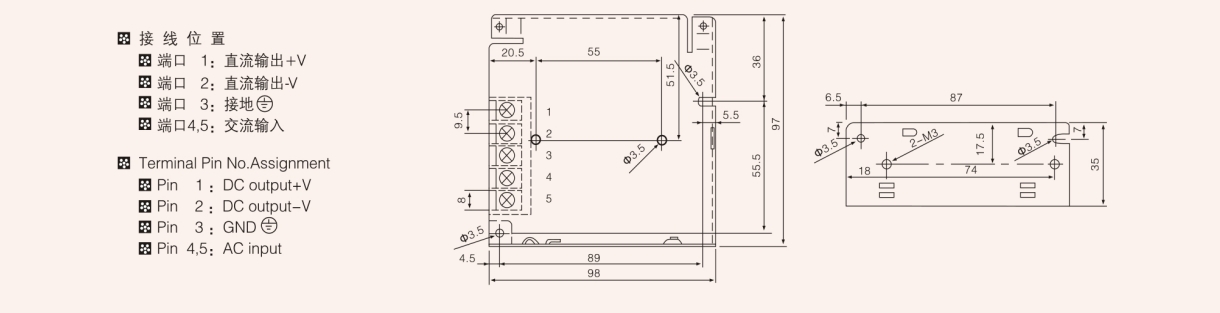

Overall Dimension 98*97*35mm
Safety Standards Meet ULGB4943 UL60950 EN60950 requirement
EMC Standards Meet EN55022 GB9254 class A requirement
Weight 0.3Kgs

The white cap on the connector is for safety precautions against electric shock and dust protection

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, short circuit protection functions

The product is highly stable, the workmanship is steady, the output voltage is consistent, and there is no drift.

Input voltage: 90-132/180-264VAC, changed by switch

Product size: 99*97*35mm (L*W *H)

100% full load burn-in test
