| Model | S-35-5 | S-35-9 | S-35-12 | S-35-15 | S-35-24 | |
| Output | DC Voltage | 5V | 9V | 12V | 15V | 24V |
| Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |
| Rated Current | 7A | 3.6A | 3A | 2.4A | 1.5A | |
| Current Range | 0-7A | 0-3.6A | 0-3A | 0-2.4A | 0-1.5A | |
| Rated Power | 35W | 32.4W | 36W | 36W | 36W | |
| Ripple & Noise (Max) | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| DC Voltagefre Quency Range | +10,-5% | ±10% | ±10% | ±10% | ±10% | |
| Setup, Rise Hold Time | 200ms, 100ms, 300ms | |||||
| Input | Voltage Range | 85~132 VAC/170~264VACselected47~63 Hz 240~370VDC | ||||
| AC Current | 0.8A/115V 0.45A/230V |
|||||
| Efficiency | 70% | 72% | 76% | 78% | 78% | |
| Inrush Current | Cold start: 18A/115V 36A/230V |
|||||
| Leakage Current | <2mA/240VAC | |||||
| Environment | Working Temp & Humidity | -10°C ~ +60°C, 20%~90 %RH | ||||
| Storage Temp & Humidity | -20°C ~ +85°C, 10%~95 %RH | |||||
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60min, each along the X, Y, and Z axes | |||||
| Standards | Safety Standards | Design refers to UL1012 | ||||
| EMC Standards | Design refers to FCC part15 J Conduction Class B | |||||
| Others | Weight | 0.41Kg | ||||
| Packing | 30pcs/13.5Kg/0.86CUFT | |||||
| Note | 1. Tolerance: Includes set-up tolerance, line regulation, and load regulation. | |||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. | ||||||

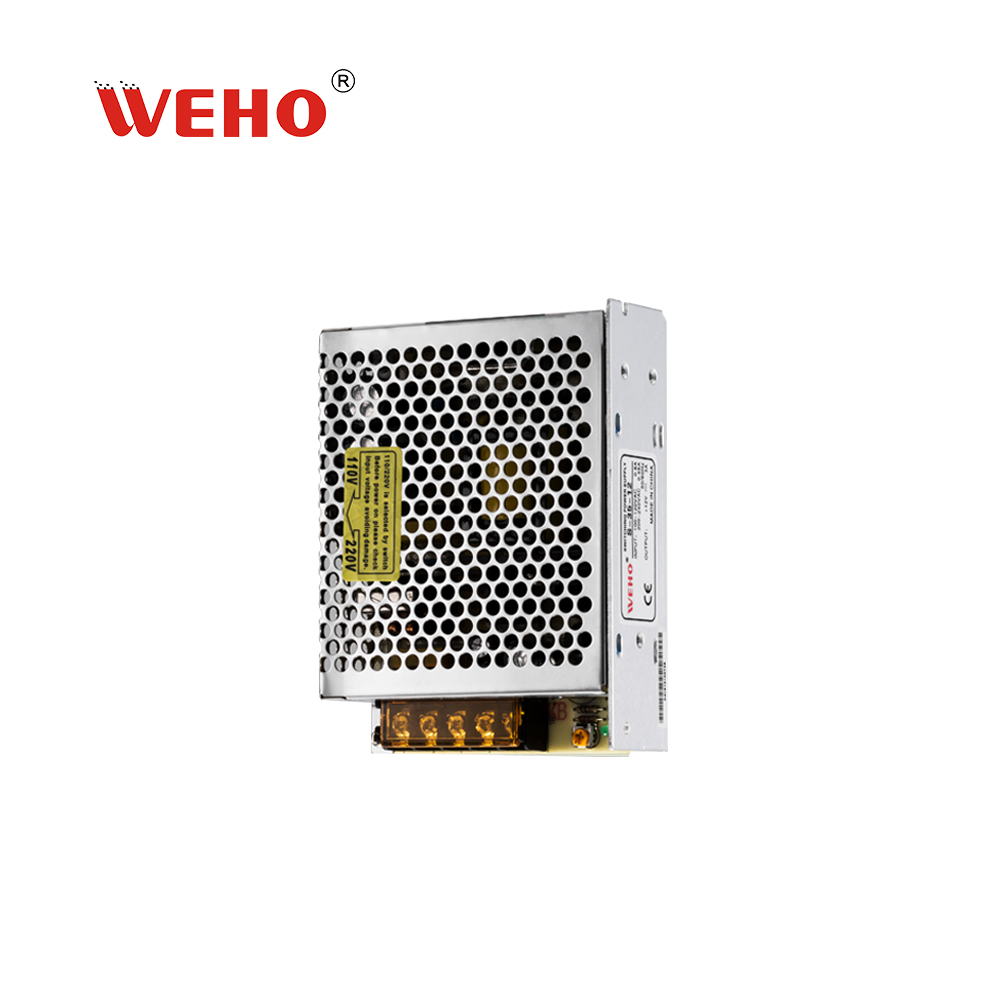

S-35W series normal single switching power supply
WeHo’s S-35W is Enclosed switching power supply Low price and high reliability 105℃ output capacitor AC input power .
A Switching Power Supply which can keep the voltage stability.
Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply 110V/220V AC input range, cooling by free air convection.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
Weho stocks 200,000 sets of commonly used models, ensuring quick delivery.
Input voltage: 90-132/180-264VAC, changed by switch
This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions
The white cap on the connector is for safety precautions against electric shock and dust protection
The product has completed the 100% full load aging test.

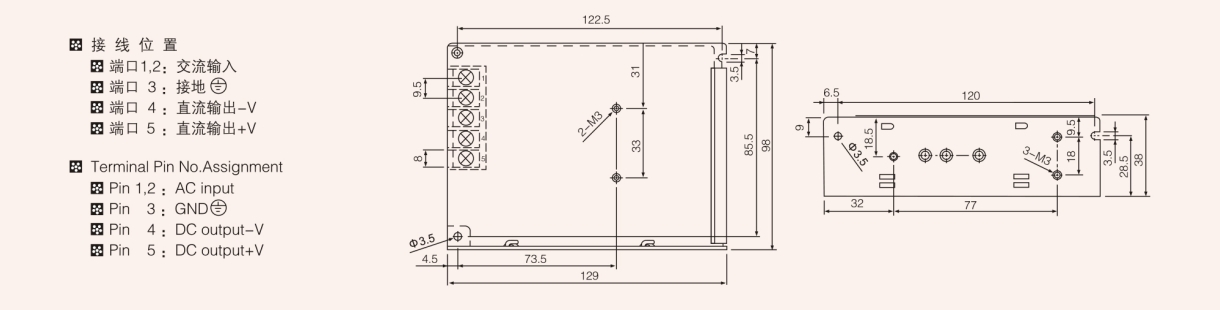

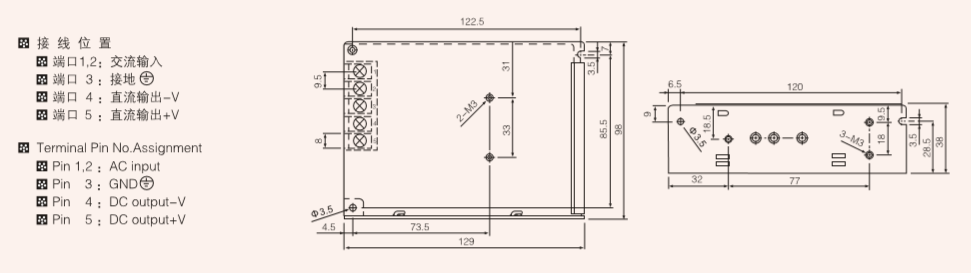

Product size: 129*98*38mm (L*W*H)
