S-1500W series normal single switching power supply

WeHo professional 1500W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.

115/230V AC range selectable by the switch, air cooling by the built-in fan.

Filter capacitance; High withstand voltage; Low dissipation; Large capacity.

Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model S-1500-12 S-1500-15 S-1500-24 S-1500-48
Output DC Output Voltage 12V 15V 24V 48V
Output voltage tolerance ±1% ±1% ±1% ±1%
Rated Output Current 125A 100A 62.5A 32A
Output Current Range 0-125A 0-100A 0-62.5A 0-32A
Output Power 1500W 1500W 1500W 1536W
Ripple And The Noise 120mVp-p 150mVp-p 240mVp-p 480mVp-p
Dc Voltage Adjustable Scope +5%; By external 2~ 5V voltage control, which can adjust the output voltage of the rated voltage of in the range of 40% ~ 100% in value
Start, Rise, Keep Time 800ms, 50ms, 16ms Loaded with
Input Input voltage Range 88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63 Hz; 290~370VDC
Exchange Input current 12A/ 230 VAC
Efficiency 83% 84% 85% 87%
Impulse Current 120A/230V
Leakage Current 3.5 mA/240VAC
Protection Characteristics Overload Protection 110%~135%
Protection way: current limiting, delay shut off, restart
High-Temperature Protection TSW1 (power tube) temperature > 100 ℃, restart when cut off output
Environment Working Temperature, Humidity -10℃ ~ +65℃, 20%~90 %RH
Keep Temperature, Humidity -20℃ ~ +85℃, 10%~95 %RH
Vibrate Resistance 10~200Hz, 2G 10min./ 1 cycle time, 60 minutes, the axis
Security Compression Sex I/P-O/P, I/P-FG: 1500VAC
Insulation Resistance I/P-O/P, I/P-FG, >100M Ohms / 500VDC
EMC Standard FCC Part 15 Class A
Other Weight 2.65Kg;
Packing 6pcs/16kg/CARTON

The average amount of time from when a product order is confirmed to when it is delivered will be approximately 7 days.

This product is ideal for a number of LED lighting and mobile signage purposes.

48v dc power supply that has passed 100% detailed testing and inspection.

This product meets global LED lighting safety standards.

The shortest 48v dc power supply sample time is in stock.

The product’s operating temperature range is: -10′ C- +50′ C

Our partners can cooperate with us in OEM or ODM

The guarantee time of 48v dc power supply is 2 years

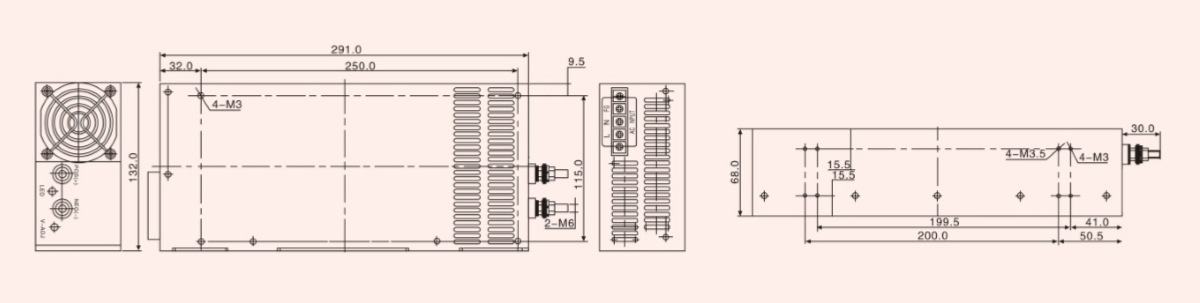

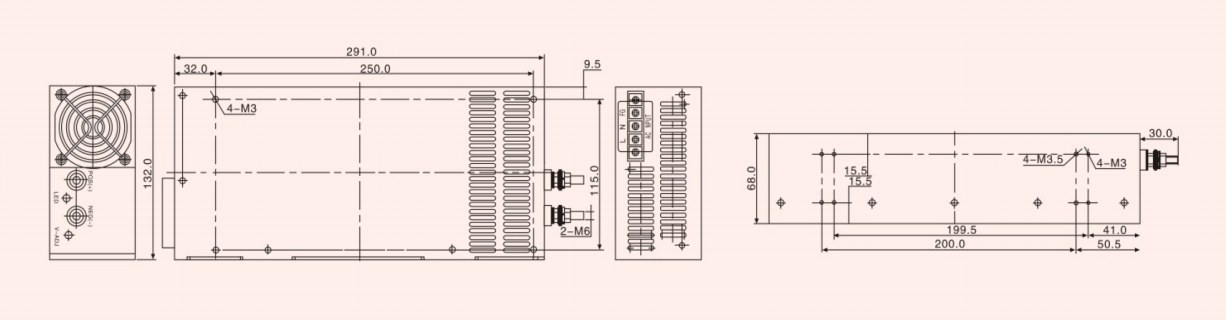

Product size: 291*132*68mm (L * W * H)
