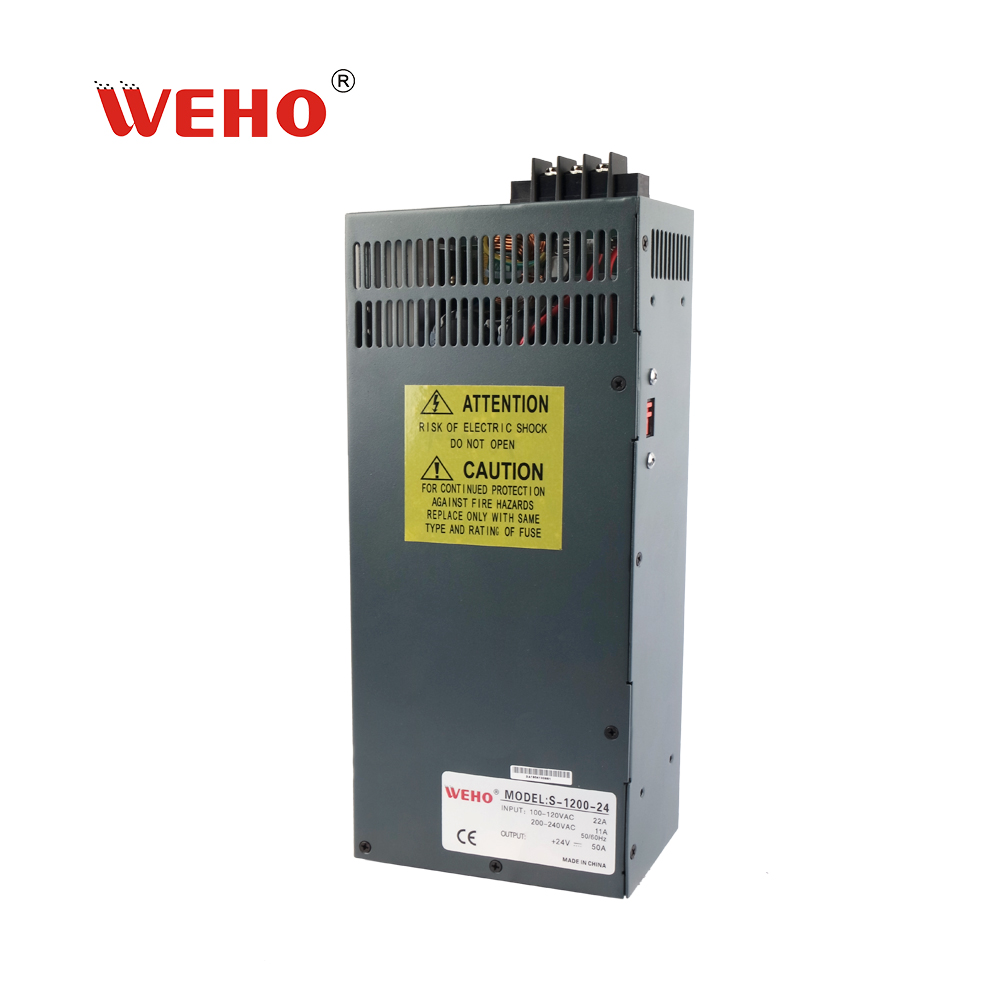

S-1200W series normal single switching power supply

WeHo professional 1200W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.

115V and 230V can be chosen by the switch.

Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.

Low cost also makes it more acceptable for general usage.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model		S-1200-12	S-1200-15	S-1200-24	S-1200-36	S-1200-48
Output	DC Output Voltage	12V	15V	24V	36V	48V
	Output Voltage Tolerance	±1%	±1%	±1%	±1%	±1%
	Rated Output Current	100A	80A	50A	33A	24A
	Output Current Range	0-100A	0-80A	0-50A	0-33A	0-24A
	Output Power	1200W	1200W	1200W	1200W	1200W
	Ripple And The Noise	120mVp-p	150mVp-p	240mVp-p	240mVp-p	480mVp-p
	Dc Voltage Adjustable Scope	+5%; By external 2~5V voltage control, which can adjust the output voltage of the rated voltage the in the range of 40% ~ 100% in value
	Start, Rise, Keep Time	800ms, 50ms, 16ms Loaded with
Input	Input Voltage Range	88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63 Hz; 290~370VDC
	Exchange Input Current	11A/ 230 VAC
	Efficiency	77%	83%	85%	85%	87%
	Impulse Current	120A/230V
	Leakage Current	3.5 mA/240VAC
Protection Characteristics	Overload Protection	101%~115%	110%~135%
		Protection way: current limiting, delay shut off, restart
	High-Temperature Protection	TSW1 (power tube) temperature > 100℃, restart when cut off output
Environment	Working Temperature, Humidity	-10℃ ~ +65℃, 20%~90%RH
	Keep Temperature,	-20℃ ~ +85℃, 10%~95%RH
	Humidity
	Vibrate Resistance	10 ~ 200 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis
Security	Compression Sex	I/P-O/P, I/P-FG: 1500VAC
	Insulation Resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
	EMC Standard	Accord with
		FCC Part 15 Class A
Other	Weight	2.65Kg;
	Packaging	6pcs/16kg/CARTO
