S-1000W series normal single switching power supply

WeHo professional 1000W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.

115V and 230V can be chosen by the switch.

Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.

Low cost also makes it more acceptable for general usage.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model S-1000-12 S-1000-15 S-1000-24 S-1000-48
DC Output Volta 12V 15V 24V 48V
Output Voltage Tolerance (Note 2) ±1% ±1% ±1% ±1%
Rated Output Current 80A 66A 42A 20A
Output Current Range 0-80A 0-66A 0-42A 0-10A
Ripple And Noise (Note 3) 240mVp-p 240mVp-p 240mVp-p 300mVp-p
Inlet Stability (Note 4) ±0.5% ±0.5% ±0.5% ±0.5%
Load Stability (Note 5) ±1% ±0.5% ±0.5% ±0.5%
DC Output Power 960W 990W 1008W 960W
Efficiency 84% 83% 85.50% 87%
DC Voltage Adjustable Range 10-13.2V 13.5-18V 20-26.4V 41-56V
Input Voltage Range 88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz; 254~370VDC
Input Current 7A/115V 3.5A/230V
Surge Current 0.95/100~240VAC
Leakage Current 18A/115V 36A/230V
Overload Protection <3.5mA/240VAC
High-Temperature Protection 13.8~16.2V 18~21V 27.6~32.4V 57.6~67.2V
Temperature Coefficient RTH1 OR RTH2>=55°C FAN ON, <=45°C FAN OFF, >=70°C cut off output
Start-Up, Upper, Retention Time ±0.03%°C(0~50°C)
Shock Resistance 1.5s,50ms,20ms
Storage Temperature, Temperature -10°C~+50°C, 20%~90%RH
Outline Dimension -20°C~+85°C, 10%~95%%RH
Weight 291*132*68mm
Safety Standards 2.65Kgs
EMC Standard CISPR22(EN55022), IEC1000-42, 3, 4, 5, 6, 8, 11 IEC100-3-2

We can customize different voltage of outputs 12v 24v 13.5v 27v  36v 48v 60v 70v 110v.

This product has an integrated design that minimizes temperature rise and calorific value.

We are a power supply manufacturer with 15 years of experience.

This product has a universal AC input that is full range (up to 264VAC).

This product is both low-cost and reliable.

This product is covered by a 24-month warranty.

The internal EMI and DC fans of this product.

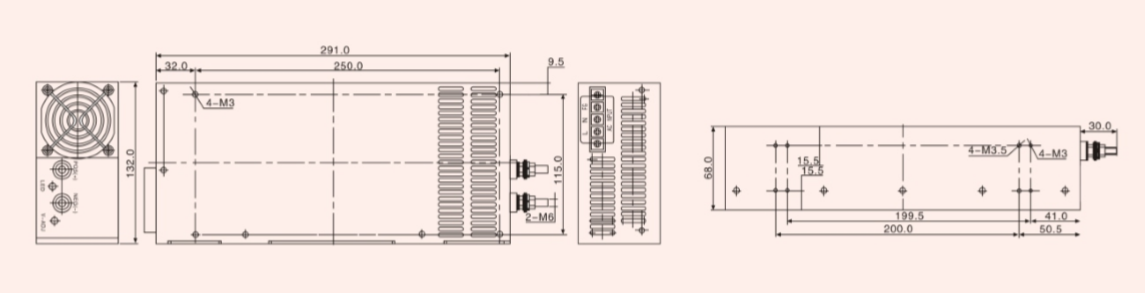

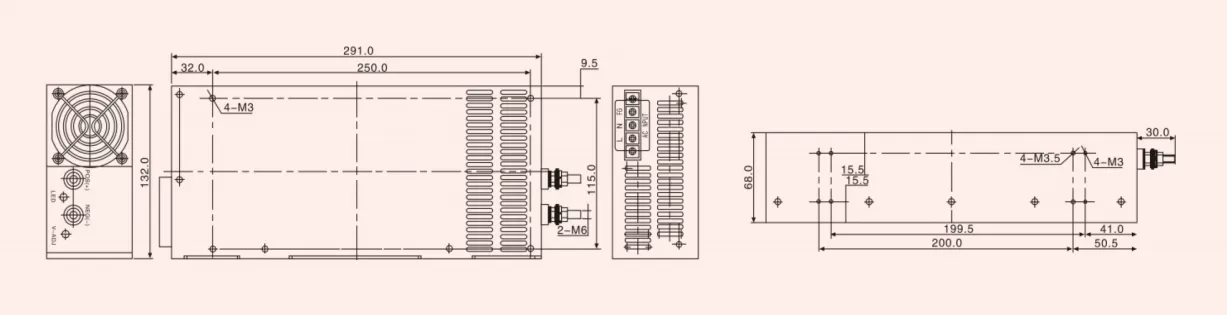

Product size: 291*132*68mm (L * W * H)
