S-800W series normal single switching power supply

WeHo professional 800W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.

115V and 230V can be chosen by switch.

Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.

Low cost also makes it more acceptable for general usage.

Email Us Make A Quote

Features

Adopts integrated device design, low temperature rise, low calorific value.

weho Stocks each month: common models 200000 sets, quick delivery;

High stability, drive stable work, output voltage constant, no drift.

Customized labels based on MOQ 100pcs.

Short-circuit protection: automatic recovery

Low cost, high reliability

24 months warranty

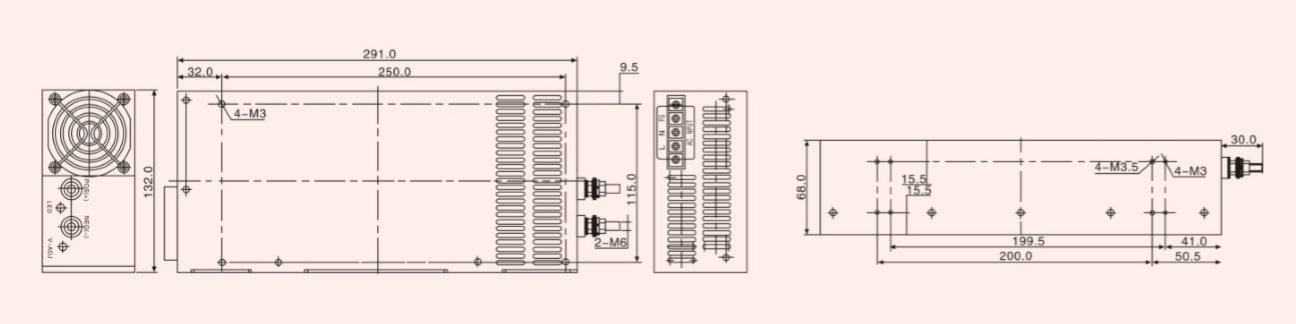

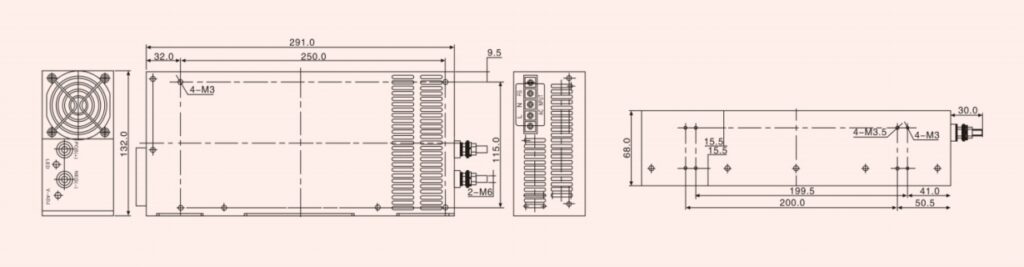

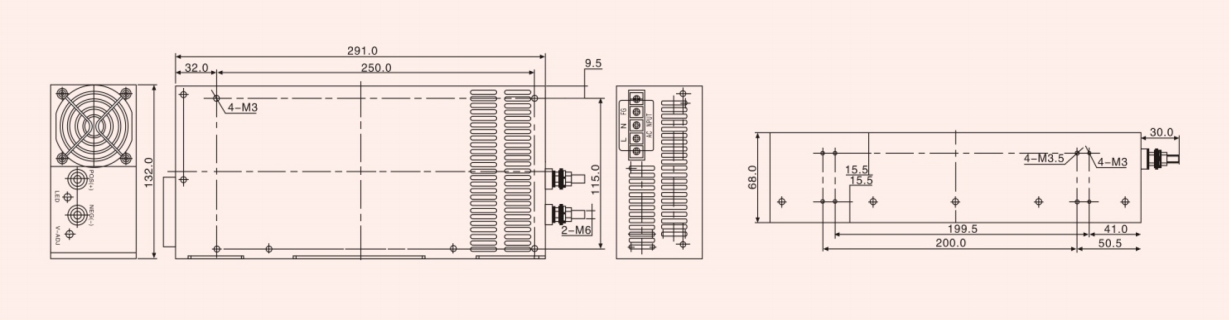

Size: 291*132*68mm (L * W * H)

U.S. Switching Power Supply Manufacturers

By reducing the operating current and junction temperature, the stress of the device can be reduced and the reliability of the product can be greatly improved.

Modularization is the general trend of the development of switching power supply.

Distributed power supply system can be composed of modular power supply, N+1 redundant power supply system can be designed, and the capacity expansion of parallel mode can be realized.

In view of the disadvantage of high operating noise of switching power supply, if high frequency is pursued alone, its noise will also increase.

The partial resonance conversion circuit technology can theoretically achieve high frequency and reduce noise.

However, there are still technical problems in the practical application of partial resonance conversion technology, so a lot of work still needs to be done in this field to make many technologies practical.

Design

Specifications&Model

MODEL		S-800-12	S-800-15	S-800-24	S-800-48
OUTPUT	DC Voltage	12V	15V	24V	48V
	Voltage Tolerance	±1%	±1%	±1%	±1%
	Rated Current	66A	54A	33A	16.6A
	Current Range	0-66A	0-54A	0-33A	0-16.6A
	Rated Power	800W	800W	800W	800W
	Ripple & Noise	150mVp-p	150mVp-p	240mVp-p	480mVp-p
	DC Adjustment Range	±5%; Can adjust from 40%~100% output voltage by external control 2-5V
	Setup, Rise, Hold Time	800ms, 50ms, 16ms at full load
INPUT	Voltage Range	90~130VAC / 180~260 VAC47~63 Hz;selected by switch260~370VDC
	AC Current	13A/115 VAC 8.0A/ 230 VAC
	Efficiency	80%	81%	85%	87%
	Inrush Current	60A/230V
	Leakage Current	3.5 mA/240VAC
PROTECTION	Over Load	110%~135%
		Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover
	Over Temp	TSW1(Power transistor) When temp. >100 °C, shut down o/p voltage, re-power on to recover
ENVIRONMENT	Working Temp., Humidity	-10°C~+65°C,20%~90 %RH
	Storage Temp., Humidity	-20°C~+85°C,10%~95 %RH
	Vibration	10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P, I/P-FG:1500VAC
	Isolation Resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
	EMC Standard	Design refer to FCC Part 15 Class A
OTHERS	Weight	2.65Kg;
	Packing	6pcs/16kg/CARTON
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
	3.Tolerance: includes set up tolerance, line regulation and load regulation.
	4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
