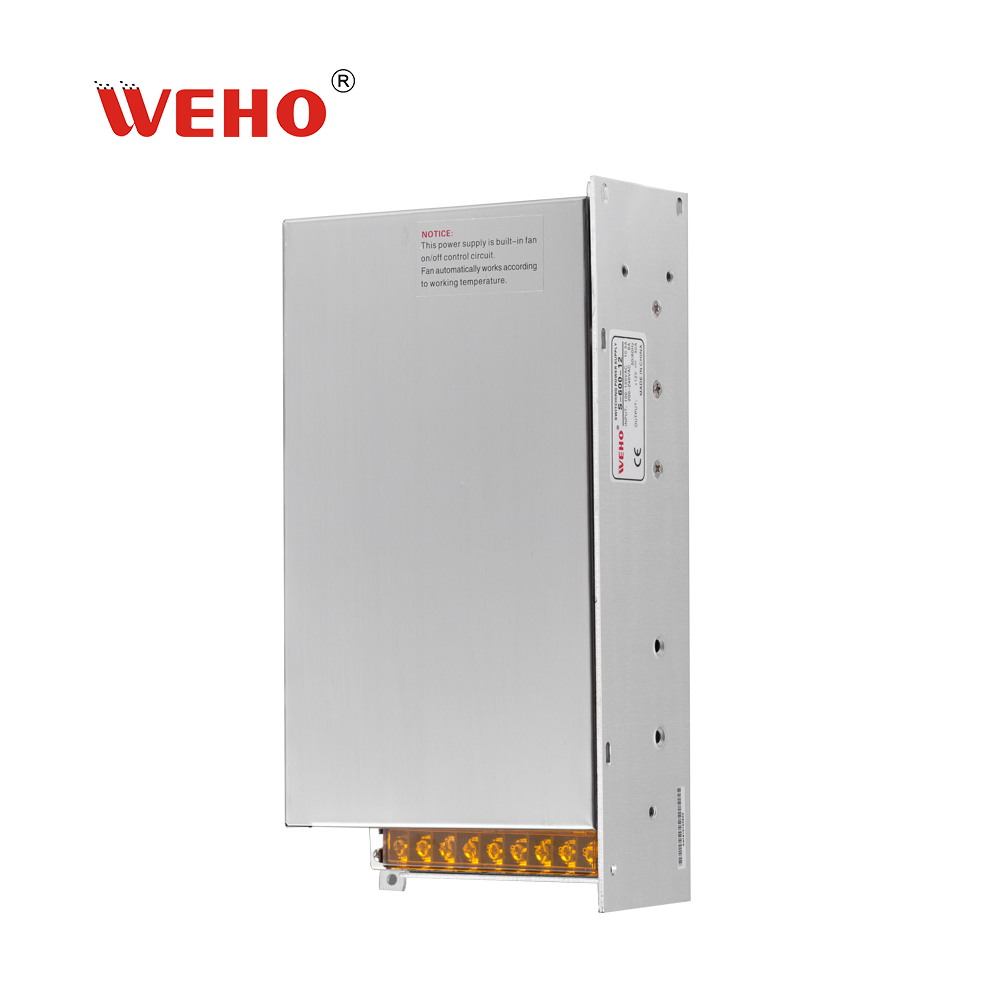

S-600W series normal single switching power supply

WeHo professional 600W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.

115V and 230V can be chosen by switch.

Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.

Low cost also makes it more acceptable for general usage.

MODEL S-600-12 S-600-13.5 S-600-15 S-600-24 S-600-27 S-600-48
OUTPUT DC VOLTAGE 12V 13.5V 15V 24V 27V 48V
RATED CURRENT 50A 44A 40A 25A 22A 12.5A
CURRENT RANGE 0 ~ 50A 0 ~ 44A 0 ~ 40A 0 ~ 25A 0 ~ 22A 0 ~ 12.5A
RATED POWER 600W 600W 600W 600W 594W 600W
RIPPLE & NOISE (max.) 240mVp-p 240mVp-p 240mVp-p 240mVp-p 200mVp-p 300mVp-p
VOLTAGE ADJ. RANGE 10 ~ 13.2V 12 ~ 15V 13.5 ~ 18V 20 ~ 26.4V 26 ~ 32V 41 ~ 56V
VOLTAGE TOLERANCE ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE, HOLD TIME 200ms, 50ms, 20ms at full load
INPUT VOLTAGE RANGE 180 ~ 264VAC (110VAC input can be custom-made)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 84% 84% 84% 86.00% 87.00% 88%
AC CURRENT 7A/115V        3.5A/230V
INRUSH CURRENT (max.) 18A/115V      36A/230V
LEAKAGE CURRENT
PROTECTION OVERLOAD 105 ~ 135% of rate load
Protection type : Fold back current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8 ~ 16.2V 15.5 ~ 18.2V 18 ~ 21V 27.6 ~ 32.4V 31 ~ 36.5V 57.6 ~ 67.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
FAN CONTROL,O.T.P. RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down
ENVIRONMENT WORKING TEMP. -10 ~ +60ºC, 20 ~ 90% RH non-condensing
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85ºC, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ºC (0 ~ 50ºC)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS Design refer to UL1950, TUV EN60950-1
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT Compliance to EN61000-3-2,-3
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A
OTHERS MTBF 138.6K hrs min. MIL-HDBK-217F (25ºC)
DIMENSION 240*125*65mm (L*W*H)
PACKING 1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB

Buit-in DC fan is for reducing heat in a large extent to improve the stability and reliability

And we make transformers and power inductors by pure coppers all by ourselves,

weho Stocks each month: common models 150000 sets, quick delivery;

Adopts integrated device design, low temperature rise, low calorific value.

This model outputs 100% full power 600W

Low cost, high reliability

24 months warranty

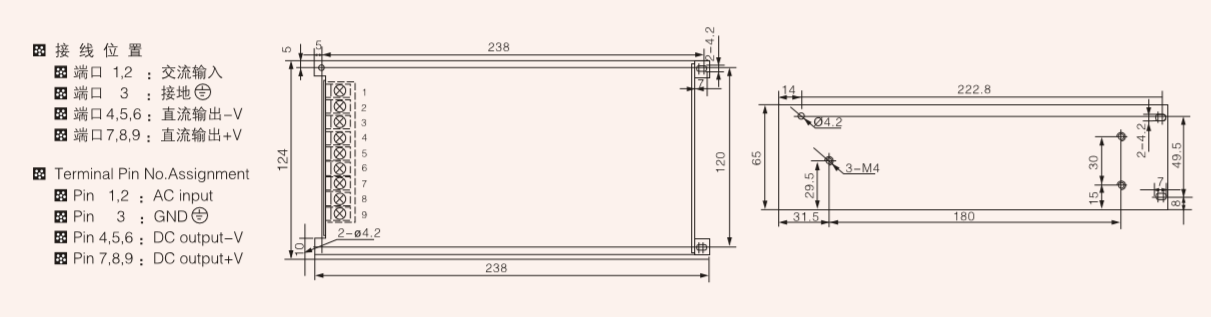

Size: 238*124*65mm (L * W * H)
