| Model | T-50A | T-50B | T-50C | T-50D | ||||||||
| CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| DC Output Voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V |
| Output Voltage Range(Note:2) | ±2% | ±5% | ±5% | ±2% | ±5% | ±5% | ±2% | ±5% | ±5% | ±2% | ±6% | ±6% |
| Rated Output Current | 7A | 1A | 1A | 5A | 1A | 1A | 4A | 1A | 1A | 3A | 1A | 1A |
| Output Current Range | 0.6-7A | 0.2-1A | 0.2-1A | 0.6-5A | 0.2-1A | 0.2-1A | 0.6-1A | 0.2-1A | 0.2-1A | 0.6-4A | 0.2-1.2A | 0.2-1.2A |
| Wave And Noise(Note:3) | 100mV | 100mV | 100mV | 100mV | 100mV | 100mV | 100mV | 100mV | 100mV | 50mV | 120mV | 120mV |
| Inlet Stability(Note:4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±1% | ±1% |
| Load Stability(Note:5) | ±1% | ±4% | ±4% | ±1% | ±4% | ±4% | ±1% | ±4% | ±4% | ±1% | ±5% | ±5% |
| DC Output Power | 52W | 49W | 50W | 51W | ||||||||
| Efficiency | 66% | 69% | 71% | 72% | ||||||||
| Adjustable Range For DC Voltage | CH1; +10, -5% | CH1; +10, -5% | CH1; +10, -5% | CH1; +10, -5% | ||||||||
| Input Current | 1.6A/115V 0.8A/230V | |||||||||||
| AC Inrush Current | Cold-start current 20A/115V 40A/230V | |||||||||||
| Leakage Current | <0.5mA/240VAC | |||||||||||
| Overload Protection | 105%~150% Type: pulsing hiccup shutdown Reset: auto-recovery | |||||||||||
| Temperature Coefficient | ±0.03%/°c(0~50°c)ON+5V | |||||||||||
| Setup, Rise, Hold Up Time | 200ms, 50ms, 16ms | |||||||||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||||||||||
| Withstand Voltage | Input and output internal: Input and enclosure: 1.5KvAC, Output and enclosure: 0.5KvAC |
|||||||||||
| Isolation Resistance | Input and output internal: Input and enclosure, Output and enclosure: 500VDC/100MΩ | |||||||||||
| Working Temperature And Humidity | -10°c~+60°c(Refer to output derating curve), 20%~90%RH | |||||||||||

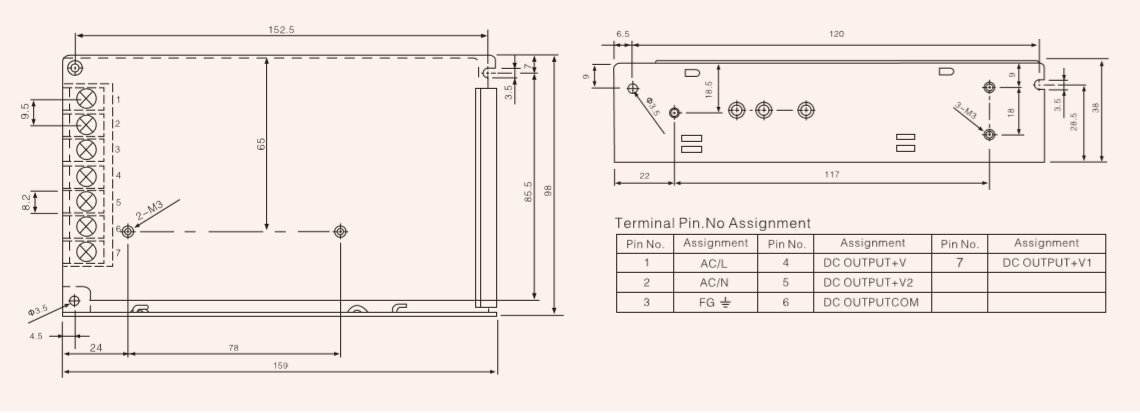

| Overall Dimension | 159×98×38mm | |||||||||||
| Weight | 0.55Kgs | |||||||||||
| Safety Standards | Meet UL 1012 requirement (Not apply for the mark) | |||||||||||
50W Triple output switching dc power supply 5V 12V -12V
WeHo’s T-50 Series is an AC/DC multi-output Power supply which standard model that offers the most cost-effective option when multiple voltages are required.
Input Voltage of T-50: 110V/220 V AC range selectable by switch.
T-50 is a reliable switching power supply with high-quality material, durable, and safety to use.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
Application: industrial automation control, military equipment, scientific research equipment, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation, medical equipment, semiconductor refrigeration heating, air purifier, electronic refrigerator, liquid crystal display, LED lamps, communication equipment, audio-visual products, security. Monitor, LED lamp belt, computer case, digital product, and instrument category.
The working temperature and humidity of this product: -10°c~+60°c (refer to the output derating curve), 20%~90%RH.
This product overload protection: 105%~150%, type: pulse hiccup shutdown, reset automatic recovery.
We are a power supply manufacturer with 15 years of experience.
The setup, rise and hold times of this product are 200ms, 50ms, and 16ms.
The cold start current of this product is 20A/115V 40A/230V.
This product is both low-cost and reliable.
This product is covered by a 24-month warranty.
