In the complex world of electronics, efficient conversion of electricity is a key aspect for a variety of applications. One technology that plays a key role in this process is DC-to-DC converters.
What follows is a comprehensive guide designed to clarify the basic principles, types, applications and best practices associated with DC-to-DC converters.
What are DC to DC Converters
A DC-DC converter is an electronic circuit that converts a direct current (DC) input voltage into a different level of DC output voltage. The main purpose of this conversion is to match the power requirements of the load or device.
DC-to-DC converters work by converting power through semiconductor devices such as transistors or diodes. By controlling the switching of these components, the input voltage can be modulated to achieve the desired output voltage.
Types of DC to DC Converters
Buck Converter
A buck converter, also known as a step-down converter, reduces the input voltage to a lower level. This type is typically used in applications that require lower voltages, such as battery-powered devices.
Boost Converter
In contrast, a boost converter increases the input voltage to a higher level. This type is valuable in applications such as LED drivers and renewable energy systems.
Buck-Boost Converter
Buck-boost converters can step up (boost) or step down (buck) the input voltage, providing versatility in a variety of applications where the input voltage may vary.
Isolated DC to DC Converters

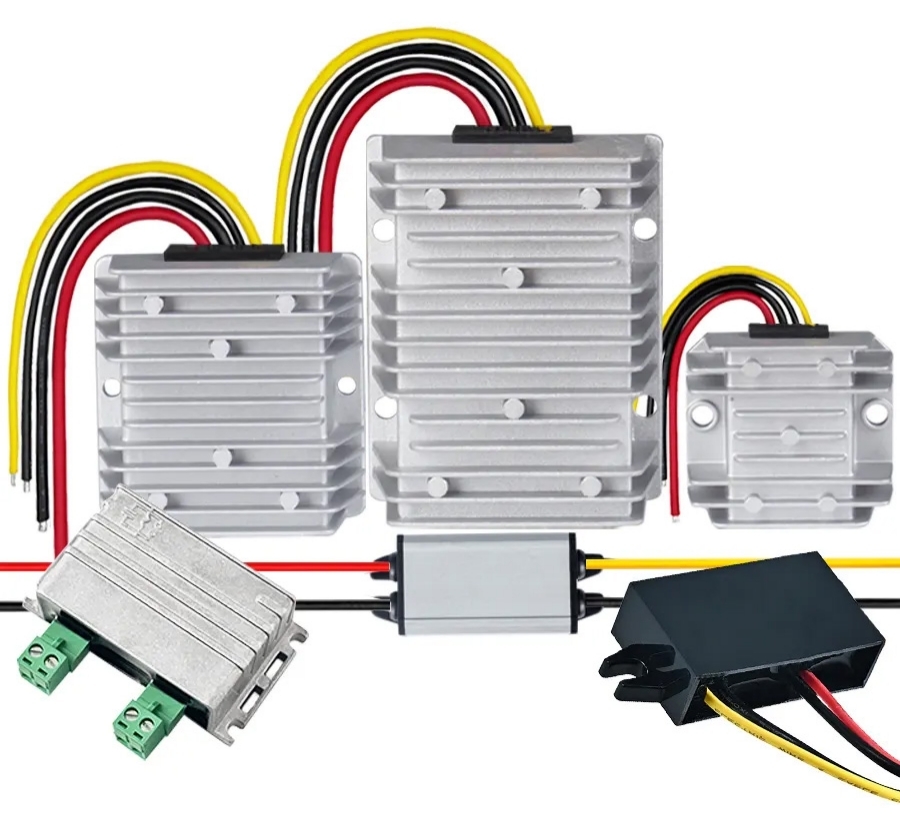

Isolating converters use transformers to provide electrical isolation between input and output, meeting safety and regulatory requirements. Examples include flyback and forward converters.
Applications of DC to DC Converters
Electronics and Gadgets
DC-to-DC converters are ubiquitous in electronic devices such as smartphones, laptops, and cameras, which often have power requirements that differ from the available power source.
Automotive Industry
In automotive industry, DC-to-DC converters play a vital role in managing power distribution, charging systems, and powering various electronic components.
Renewable Energy Systems
Solar panels and wind turbines produce fluctuating DC voltages. DC-DC converters are used to optimize the electricity produced for storage or distribution.
Telecommunications
Telecom equipment often requires specific voltage levels. DC to DC converters ensure that the power supplied to these devices meets their operating requirements.
Best Practices for DC to DC Converter Design
Efficiency is a key factor in DC-DC converter design. Minimizing power losses and optimizing the conversion process help improve overall system efficiency.
Controlling output voltage ripple and noise is critical, especially in sensitive electronic applications. Proper filtering and design techniques can help mitigate these issues.
Selecting the correct components, such as inductors, capacitors, and semiconductors, is critical to achieving reliable and efficient DC-DC converter performance.
Heat dissipation is a common challenge in power electronics. Implementing effective thermal management strategies ensures converter longevity and reliability.
Emerging Trends in DC to DC Converter Technology
Recent advances in DC-DC converter technology include the integration of digital control and power management functions. Digital controllers provide greater flexibility, programmability and adaptability to different load conditions, helping to enhance overall system performance.
The adoption of gallium nitride (GaN) and silicon carbide (SiC) semiconductor materials in DC-DC converters is increasing. These materials exhibit superior electrical properties, enabling higher efficiency, smaller size and higher power density in converter designs.
Innovations in wireless power transfer technology are impacting DC-to-DC converter applications. Integrating wireless charging functionality into the converter opens up new possibilities for powering electronic devices without a physical connection.
Challenges and Solutions in DC to DC Converter Design
Voltage Regulation and Transient Response
Maintaining tight voltage regulation and achieving fast transient response are common challenges in DC-DC converter design. Careful selection of control algorithms and feedback mechanisms as well as appropriate compensation techniques can resolve these issues.
Electromagnetic Interference (EMI)
The switching characteristics of DC-to-DC converters can cause electromagnetic interference. Shielding, filtering and adhering to EMI standards are important aspects of mitigating interference and ensuring compliance.
Reliability and Robustness
Ensuring the reliability and robustness of DC-DC converters is critical for applications with stringent operating requirements. Robust design practices, thorough testing, and proper thermal management help extend converter life and stability.
Conclusion
DC-to-DC converters are fundamental components of modern electronics, enabling seamless power conversion for a variety of applications.
