Some Important Factors of LED Driver Replacement

For LED lighting systems, LED drivers play a vital role in ensuring the smooth operation and lifetime of the entire system. They are responsible for converting the AC power from the power supply to the DC power required by the LED lights.

However, like any other component in a lighting system, LED drivers fail over time and need to be replaced.

Therefore, it is important to understand the factors that need to be considered when replacing an LED driver to ensure that the new driver meets the required specifications and that the system operates efficiently. In this blog, we will discuss some important factors to consider when replacing an LED driver.

waterpfoof swith power supply

How to tell if your LED driver has gone bad?

Like any electrical device, LED drivers can fail over time, resulting in reduced performance or even complete failure of the lighting system. So, how can you tell if your LED driver is broken?

There are several signs to watch out for.

First, you may notice reduced brightness from the LED lighting system. This may indicate that the LED driver is not providing enough power to the LED.

Second, if you notice flickering or flickering LED lights, this may indicate that the LED driver is not functioning properly.

Other signs of a failing LED driver include humming or humming from the driver, or the LED light turning on and off intermittently.

Some Important Factors of LED Driver Replacement

Considerations for Replacement LED Driver

Drivers play a critical role in the performance and lifetime of LED lighting systems, so it is important to choose a replacement driver that is compatible with your system and meets your specific needs. Here are a few important factors to keep in mind when considering replacing an LED driver.

Power Requirements

To determine the power requirements for a replacement LED driver, you need to consider the following specifications:

Input Voltage: The operational voltage necessary for the LED driver to operate effectively is essential. Make sure the input voltage of the replacement drive matches that of the existing drive.

Output Voltage: This is the voltage required for the LED module to operate. The output voltage of the replacement driver should match the voltage requirements of your LED module.

Current Rating: The required current for the LED module to function optimally is determined by its specifications. The current rating of the replacement driver should match the current requirements of your LED module.

Wattage: This is the maximum power capacity of the LED module. Make sure to choose a replacement driver that can provide the required power to your LED module.

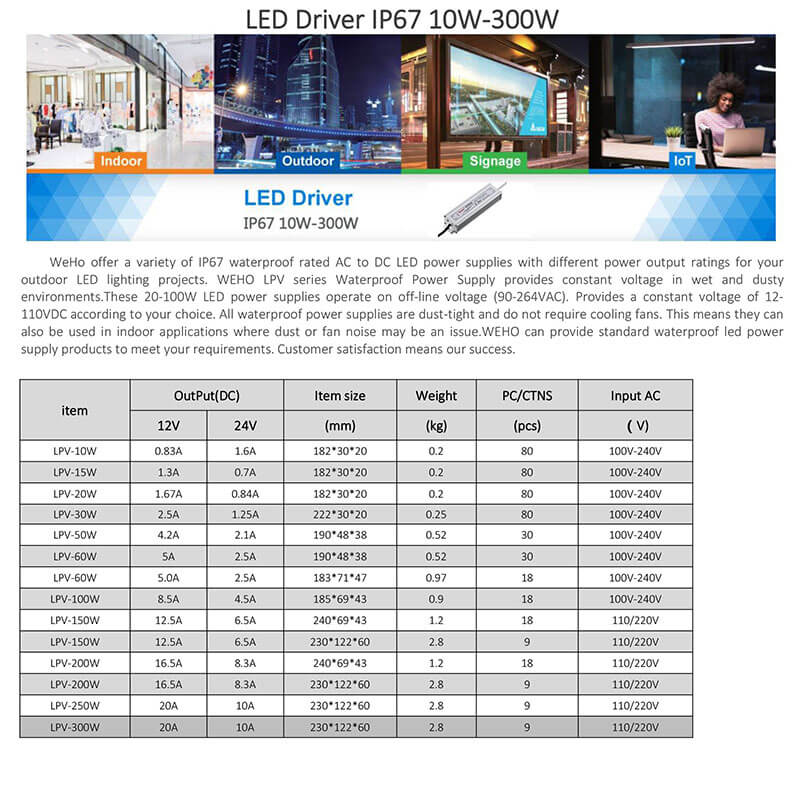

LED Driver IP67 10W-300W


Both constant voltage and constant current LED drivers are manufactured with dimming capability and need to be specified. If the spec doesn’t mention dimming, it’s safe to assume the driver or fixture isn’t dimmable.

Dimmable drivers typically require an external dimmer or control device as specified in the datasheet. Make sure to stick with drivers that have the same type of dimming.

If you need dimming capability, make sure to choose a replacement driver that is compatible with the type of dimmer switch you are using.

Physical Size / Dimensions

When selecting a replacement LED driver, it is important to consider the physical size and dimensions of the device.

Replacement drives must be an exact match in size and shape to the original drive to ensure proper fit and function.

To determine the correct physical size of your replacement LED driver, first measure the dimensions of the original driver. Measure the length, width, and height of the device, as well as any mounting holes or brackets that may exist.

Once you have these dimensions, compare them to the specifications of the replacement drive. Manufacturers often provide detailed specifications of their products, including physical dimensions and installation requirements.

If the replacement drive is a different size or installation method than the original, additional modifications may be required to ensure proper installation and function.

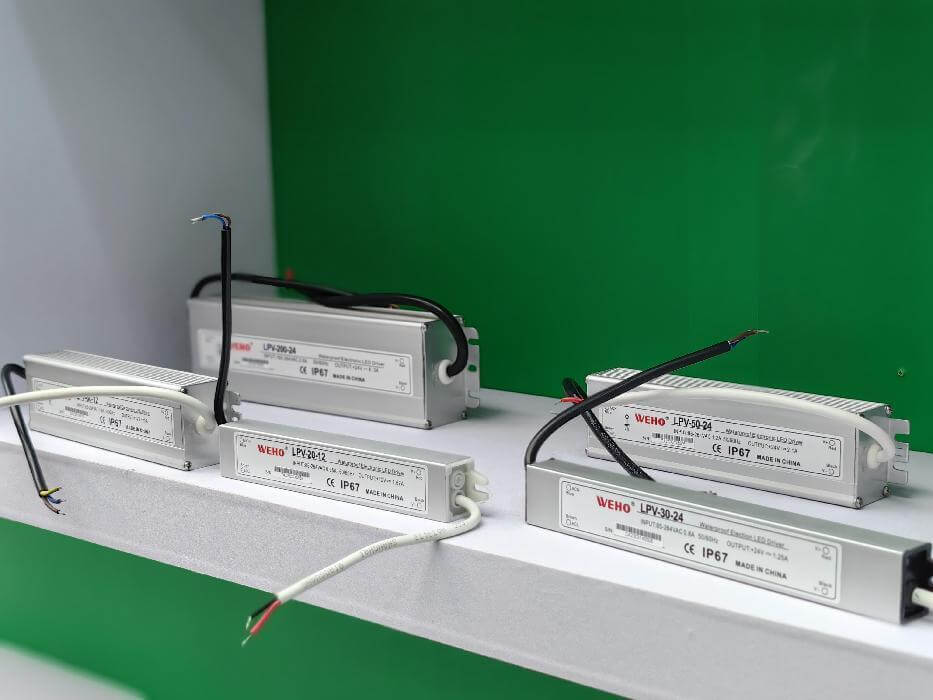

Physical Size

Safety Ratings

Safety should be a top priority when selecting a replacement LED driver for your lighting system.

A driver’s safety rating can indicate its durability and safety features, which are critical to ensuring the longevity of the lighting system and the safety of those who come into contact with it.

An important safety rating to consider is the IP rating, which indicates how protected the driver is from dust and water. A higher IP rating means a higher degree of protection, making it suitable for use in harsh and demanding environments.

Another safety rating to consider is the UL rating, which indicates that the driver meets safety standards set by Underwriters Laboratories.

The UL safety rating ensures that the driver has been rigorously tested and complies with industry standards, giving you peace of mind knowing your lighting system is compliant and safe to use.


Efficiency is a critical aspect when selecting an alternative LED driver. High efficiency ensures less energy waste, resulting in lower operating costs and less environmental impact.

One of the main factors affecting efficiency is the power factor (PF) of the drive. Drives with a high PF, meaning they draw less reactive power from the grid, tend to be more efficient.

Likewise, selecting a replacement drive with a high efficiency rating (expressed as a percentage) will mean that more energy input is converted to output power.

Additionally, the load capacity of the replacement drive is critical to optimize efficiency. It must be ensured that the driver load capacity of the LED array matches the total load of the existing lighting system. Higher load capacity improves power transfer and helps ensure the drive operates at peak efficiency.

For maximum efficiency, drive replacement must be done through proper installation, operation and maintenance. By regularly monitoring your driver’s efficiency and performance, you can make sure it’s running at its best and adjust any necessary settings or replace it if it’s not functioning properly.



It is critical to choose a high-quality replacement drive that meets the original drive specifications and has a proven record of reliability. By considering these important factors, you can ensure a successful LED driver replacement and maximize the efficiency and lifetime of your LED lighting system.
