What Is a Switching Power Supply Best Used For?

A switching power supply is a power supply that can convert the voltage and current of an input signal into a different output voltage and current. Switching power supplies are also known as switch-mode power supplies (SMPS) or switch-mode power supplies (SMPS).

A switching power supply differs from a linear power supply because it uses transistors to turn the input signal on and off very quickly. This results in much higher efficiency than linear supplies.

Switching power supplies are used in a wide variety of electronic devices, from personal

computers to mobile phones to LED lights. They are also used in many industrial applications.

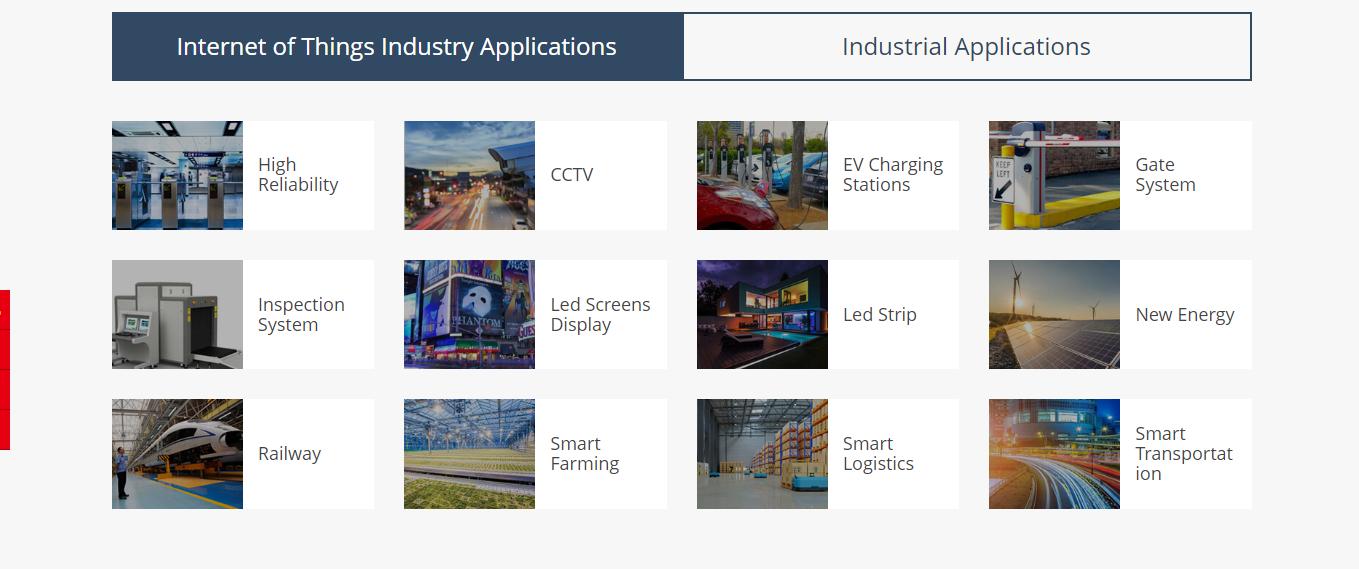

internet of things industry application

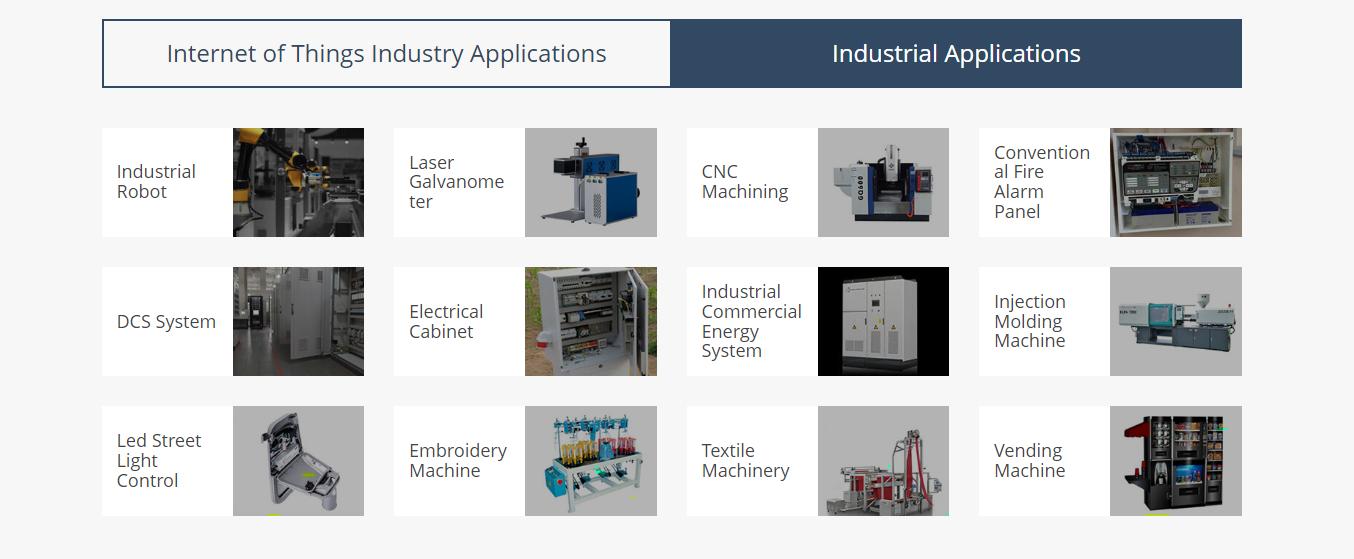

industrial application

What is a switching power supply?

Switching power supplies are one of the two main types of power supply designs used in electronics. These power supplies feature the use of precision switching, allowing designs to accommodate DC-to-DC, DC-to-AC, AC-to-DC, and frequency conversion.

What is a switching power supply

What is the difference between a switching power supply and an SMPS?

Switching power supplies (SPS) and switched mode power supplies (SMPS) are often used interchangeably because they refer to the same type of power supply. The term “switching power supply” is a broader category that includes various types of power supplies, including SMPS.

What is the difference between a switching power supply and a SMPS?

Here’s a breakdown of the relationship between the two:

Switching Power Supply (SPS): This term refers to a power supply that utilizes a switching regulator to efficiently convert electrical energy. It is a general term that encompasses different types of power supplies, including SMPS.

Switching Mode Power Supply (SMPS): An SMPS is a specific type of switching power supply. It is a design method that uses high-frequency switching technology to regulate and convert electrical energy.

An SMPS usually consists of a rectifier, a switching element (usually a transistor), a transformer, and an output rectifier. It efficiently converts and regulates electrical energy by quickly switching the input voltage on and off and then filtering and smoothing the output voltage.

Here's a breakdown of the relationship between the two

The working principle of switching the power supply

A switching power supply is an electronic power converter that converts electrical energy from one form to another. These power supplies use a variety of techniques to achieve their goals, such as storing energy in inductors or capacitors, converting DC voltage to AC voltage, or using feedback to control the output voltage.

The working principle of switching power supply

What are the most significant challenges when designing switching power supply boards?

Designing a switching power supply board can present various challenges.

Here are some of the most important:

Here are some of the most important

Efficiency and Power Loss

Achieving high efficiency is a key goal in switching power supply design. Minimizing power loss during conversion is critical to maximizing energy efficiency.

EMI/EMC Compliance

Switching power supplies can generate electromagnetic interference (EMI) due to high-frequency switching signals. Ensuring compliance with electromagnetic compatibility (EMC) standards is critical to preventing interference with other electronic equipment and avoiding potential regulatory issues.

Efficiency and Power Loss

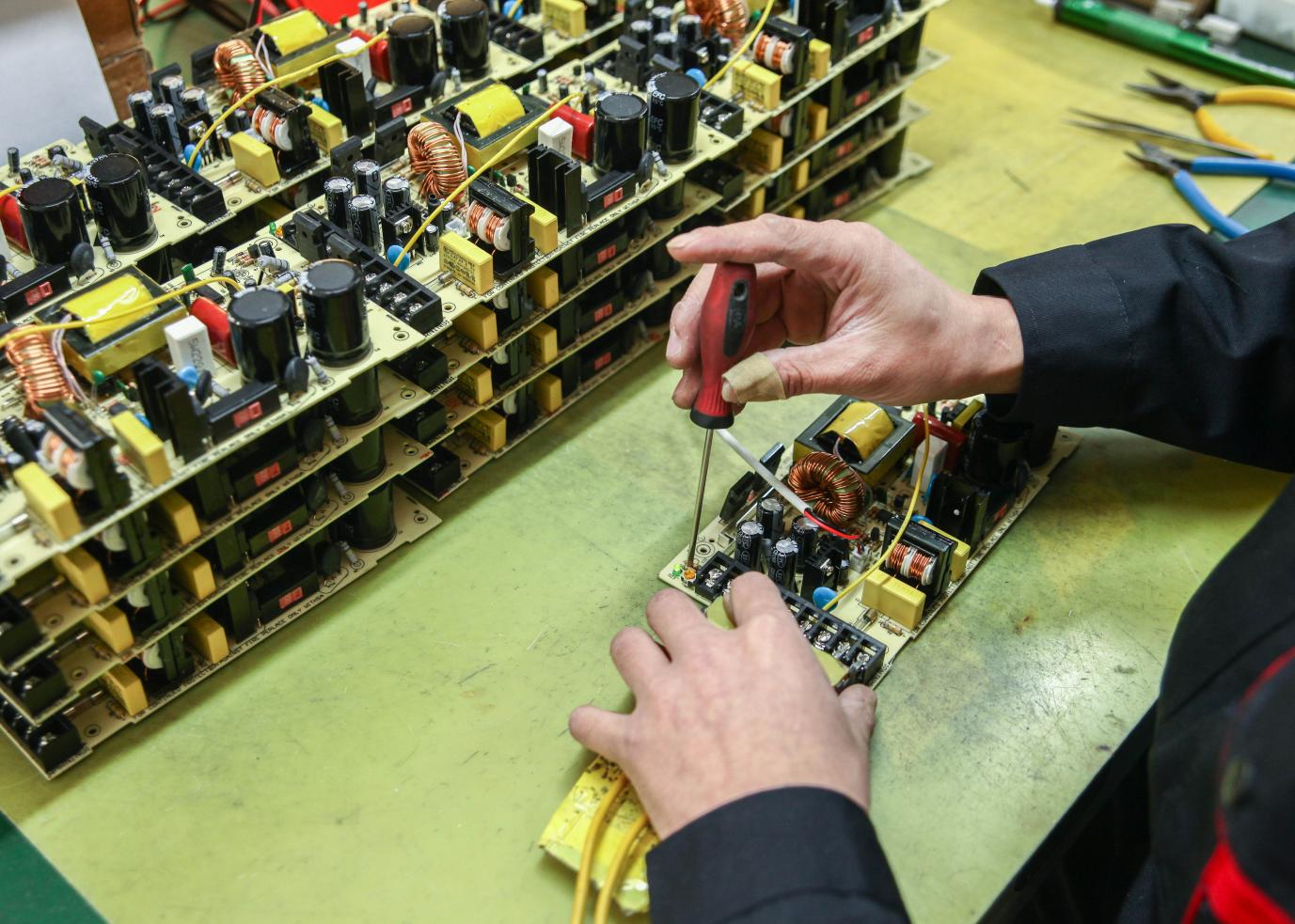

Thermal Management

Switching power supplies generate heat during operation, especially in components such as switching transistors and diodes. Effective thermal management is critical to prevent overheating and ensure reliable performance.

Noise and Ripple

Switching power supplies introduce noise and ripple on the output voltage or current. Minimizing these unwanted fluctuations is important, especially in sensitive applications.

Thermal Management

Component Selection and Tradeoffs

Selecting the correct components is critical to achieving the desired performance and reliability. Designers must consider parameters such as voltage and current ratings, switching frequency, ESR (equivalent series resistance) of capacitors, and power dissipation capabilities of semiconductors.

Control and Feedback Loop Design

Designing the control and feedback loop of a switching power supply is a critical aspect. It involves selecting an appropriate control method (for example, voltage-mode or current-mode control), designing a stable feedback loop, compensating for a transient response, and ensuring proper regulation and stability under varying load conditions.

Component Selection and Tradeoffs

Safety and protection features

Switching power supplies need to incorporate safety and protection features to protect the power supply and connected equipment. Overvoltage protection, overcurrent protection, thermal shutdown, and short circuit protection are some of the basic features to consider during design.

Safety and protection features

What are the benefits of using a switching power supply?

A switching power supply is a type of power supply that uses a switching regulator to convert electrical power. This type of power supply is much more efficient than a linear power supply and produces less heat. Additionally, a switching power supply can be much smaller in size than a linear power supply.

There are many benefits to using a switching power supply, but the three most important benefits are that they are more efficient, produce less heat, and are smaller in size. If you are looking for a power supply that will save you space and energy, then a switching power supply is the way to go.

What are the benefits of using a switching power supply

What are some applications for a switching power supply?

Switching power supplies are widely used in various industries and technologies due to their high efficiency, compact size, and reliable performance.

The following are some common applications of switching power supplies:

Consumer Electronics

Switching power supplies are widely used in consumer electronics such as TVs, audio equipment, laptops, smartphones, and game consoles.

Computers and Servers

Switching power supplies are essential components in desktop computers, servers and data centers. They convert AC power input to the various DC voltages needed to power internal components, providing stable and reliable power delivery.

Telecommunications

Telecommunications

Switching power supplies play a vital role in the telecommunications industry, powering equipment such as routers, switches, modems, and telecommunication towers.

Industrial Equipment

Switching power supplies are widely used in industrial automation, manufacturing, robotics, and control systems. They provide reliable power conversion for PLCs (programmable logic controllers), motor drives, sensors, and other industrial equipment, ensuring stable operation in harsh environments.

Automotive Electronics

Automotive Electronics

Switching power supplies are used in automotive applications such as car audio systems, infotainment systems, GPS devices, and charging ports. They provide efficient power conversion while withstanding the various voltage fluctuations found in the automotive environment.

Medical Equipment

Switching power supplies are used in a variety of medical equipment, including patient monitors, imaging equipment, diagnostic instruments, and portable medical equipment.

Renewable Energy Systems

Renewable Energy Systems

Switching power supplies are used in renewable energy systems such as solar inverters and wind turbines.

LED Lighting

Switching power supplies are commonly used in LED lighting applications. They convert AC or DC power to the specific voltage and current required by LED lights, providing energy efficient and dimmable lighting solutions.

LED Lighting

Conclusion

A switching power supply is a versatile and indispensable component that finds optimal use in a wide range of applications. Its high efficiency, compact size, and reliable performance make it ideal for a variety of industries and technologies.

As technology continues to advance, the demand for these power supplies will only increase, driving further innovations and enhancements in their design and functionality.
