| Model | XLG-650-24 | XLG-650-36 | XLG-650-48 |
| DC output voltage | 24V | 36V | 48V |
| Rated output current | 25A | 18A | 13.5A |
| Current range | 0~25A | 0~18A | 0~13.5A |
| Output power | 600W | 650W | 650W |
| Wave and noise | 200mVp-p | 220mVp-p | 240mVp-p |
| Voltage accuracy | ± 2% | ± 1.5% | ± 1.5% |
| Line regulation | ± 0.5% | ± 0.5% | ± 0.5% |
| Load regulation | ± 0.5% | ± 0.5% | ± 0.5% |
| Start, rise, hold time | 500ms，50ms，24ms/230VAC (at full load) | ||
| Input voltage range | 180 ~264VAC，245 ~373VDC | ||
| Frequency range | 47 ~ 63Hz | ||
| AC input current | 6.0A/230VAC | ||
| Efficiency | 91.5% | 92.5% | 93.0% |
| Impulse current | Cold start current 65A/230VAC | ||
| Leakage current | <2mA/240VAC | ||
| Overcurrent protection | 95%~108% of the rated output current starts overcurrent limit， recover automatically after abnormal conditions are removed |
||
| Short circuit protection | Protection mode: Hiccup mode: recover automatically normal output after abnormal conditions are removed | ||
| Overvoltage protection | 115%~ 135% of rated output voltage startup overvoltage protection | ||
| Protection mode: Hiccup mode: recover automatically normal output after abnormal conditions are removed | |||
| Over temperature protection | 105℃ ±5℃ (JK1/JK2 is next to the transformer/MOS tube surface detection) | ||
| Protection mode: Turn Off the output voltage, and the normal output can be automatically restored after the temperature drops |
|||
| Working temperature | -20℃~ +60℃ | ||
| Working humidity | 20% ～90% RH, non condensing | ||
| Storage temperature and humidity | -40℃~ +85℃；10% ～95% RH，non condensing | ||
| Seismic resistance | 10~500Hz,，5G 12min/ 1 cycle，X, Y, Z axes，duration 72 minutes | ||
| Pressure resistance | I/P~O/P：1.5KVAC I/P~FG：1.5KVAC O/P~FG：0.5KVAC | ||
| Isolation resistance | I/P~O/P，I/P~FG，O/P~FG: 100M Ohms/500VDC/25℃/70%RH | ||
| Safety standard | Compliance to UL60950-1，TUV EN60950-1 | ||
| Electromagnetic compatibility emission | Compliance to EN55022 Class A | ||
| Electromagnetic compatibility immunity | Compliance to EN55024 | ||

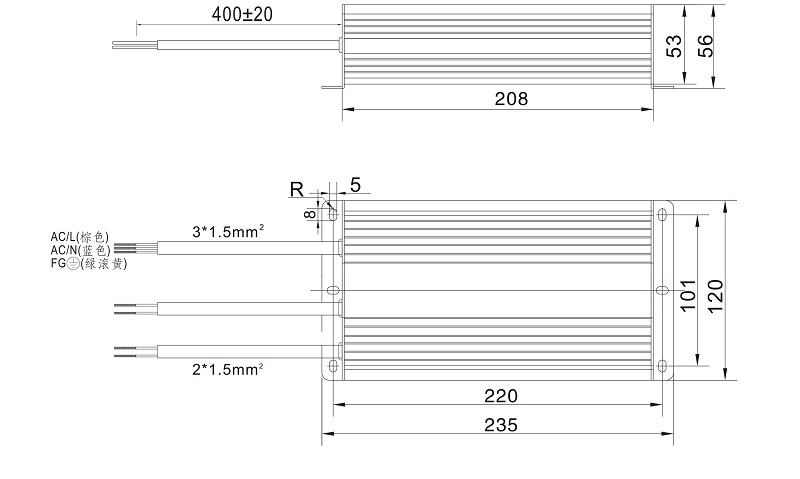

| Dimension | 235*120*56mm (L*W*H) | ||
| Packing | 2.35kg/9pcs/22.5kg/0.033 cubic meters | ||

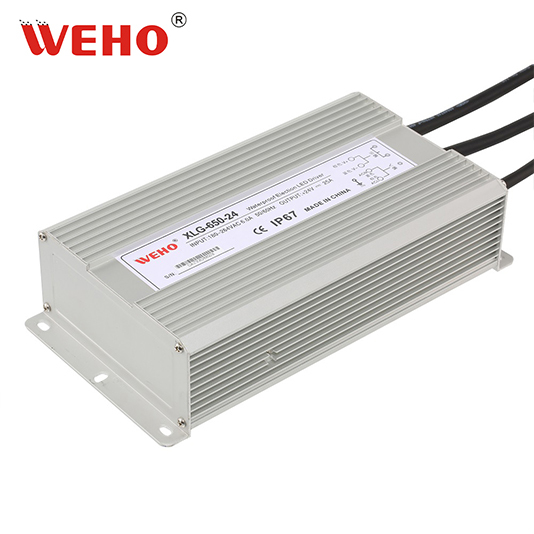

Waterproof IP67 Constant Voltage Switching Power Supply AC 180-264V DC 24V 36V 48V LED Driver 650W
XLG-650W is a constant voltage, constant power waterproof AC input 180-264V variable DC 24V, 36V, 48V LED drive power supply. It adopts fanless design and can work in the range of -20 ℃ to +60 ℃ under natural air cooling and heat dissipation. Because it is a fully protective aluminum shell, full glue, in line with IP65/IP67 protection level, suitable for dry, wet, rain environment, so indoor or outdoor are applicable.
The XLG-650W has protection such as short circuit/overload/overvoltage/overtemperature, and anti -5G vibration ability, which can meet the energy-saving requirements of the new generation of LED lighting and provide a cost-effective solution for various LED lighting
If you have any questions, please do not hesitate to contact us at Email: [email protected]
