| Model | LPV-10-5E | LPV-10-12E | LPV-10-15E | LPV-10-24E |
| DC Output Voltage | 5V | 12V | 15V | 24V |
| Rated Output Current | 2A | 1A | 0.65A | 0.5A |
| Output Current Rage | 0-2A | 0-1A | 0-65A | 0-0.5A |
| Rated Power | 10W | 10W | 10W | 10W |
| Wave And Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Voltage Tolerance | ±5% | ±5% | ±5% | ±5% |
| Line Regulation | ±1% | ±1% | ±1% | ±1% |
| Load Regulation | ±2% | ±2% | ±2% | ±2% |
| Efficiency | 71% | 81% | 83% | 83% |
| AC Input Voltage Range | 90 ~ 264VAC 127 ~ 370VDC 47 ~ 63Hz | |||
| Input Current | 0.55A/115VAC 0.35A/230VAC |
|||
| AC INnrush Current | Cold Start 70A(twidth=215μs measured at 50% Ipeak) at 230VAC | |||
| Overload Protection | 110 ~ 150% rated output power | |||
| Over-Voltage Protection | 5.75-6.75V | 13.8-16V | 17.5-21V | 28-32V |
| Protection type: Shut off o/p voltage, clamping by Zener diode | ||||
| Setup Rise Time | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load |
|||
| Hold Up Time | 50ms/230VAC 16ms/115VAC at full load |
|||
| Withstand Voltage | I/P-O/P: 1.5KVAC | |||
| Isolation Resistance | I/P-O/P: >100M Ohms / 500VDC / 25°C/ 70% RH | |||
| Working Temperature | -30°C ~ +70°C | |||

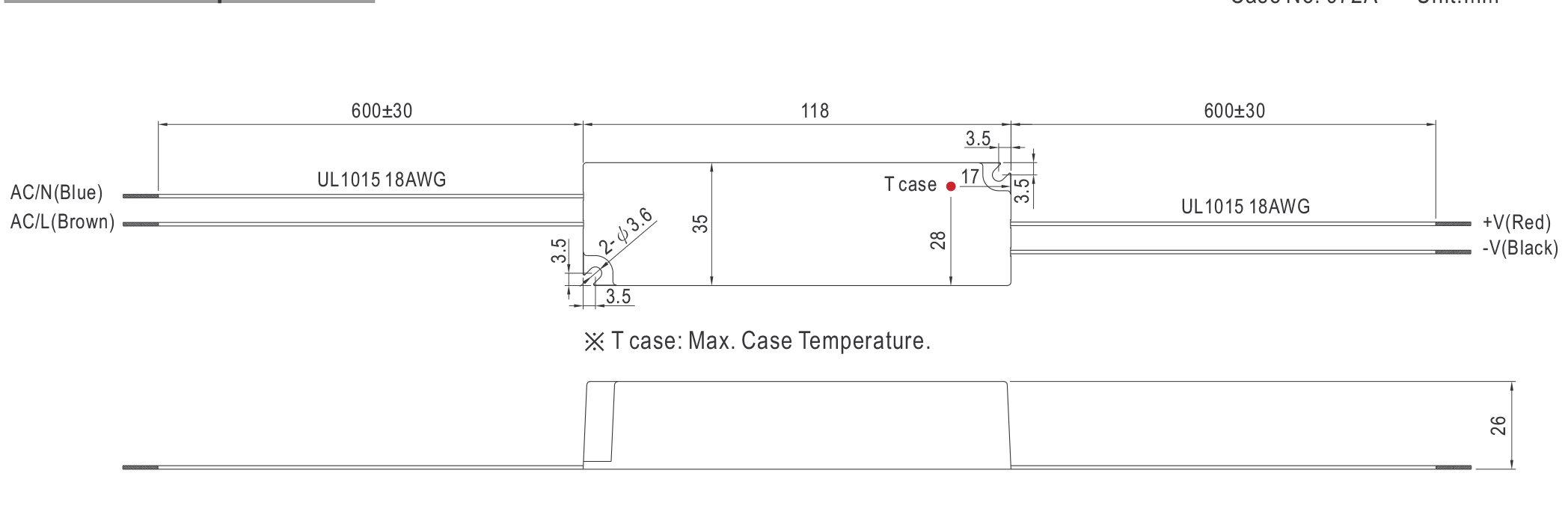

| Overall Dimension | 118*35*26mm (L*W*H) | |||
| Safety Standards | EN60950-1, IP67 approved | |||
| EMC Standards | compliance to EN55024, light industry level, criteria A | |||
| Weight | 0.22Kgs | |||
Waterproof IP67 plastic LED driver AC 110v/220v to constant DC output 10W power supply
LPV-10E power supply series is a fantastic AC-to-DC converter for delivering constant voltage in wet and dusty environments.
It comes from LPV Series Plastic Waterproof Power Supply Series which operates off-line voltage (90-264VAC) and delivers constant voltages from 5-48VDC depending on your selection.
The 20 to 60 Watt models qualify as Class 2 power units offered in a slim, butter stick design.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
This product is suitable for LED-related lamps or appliances.
This product has a full range of input voltage 85-264VAC.
The product has completed the 100% full load aging test.
This product is fully encapsulated to IP67.
This product size is small and compact type.
