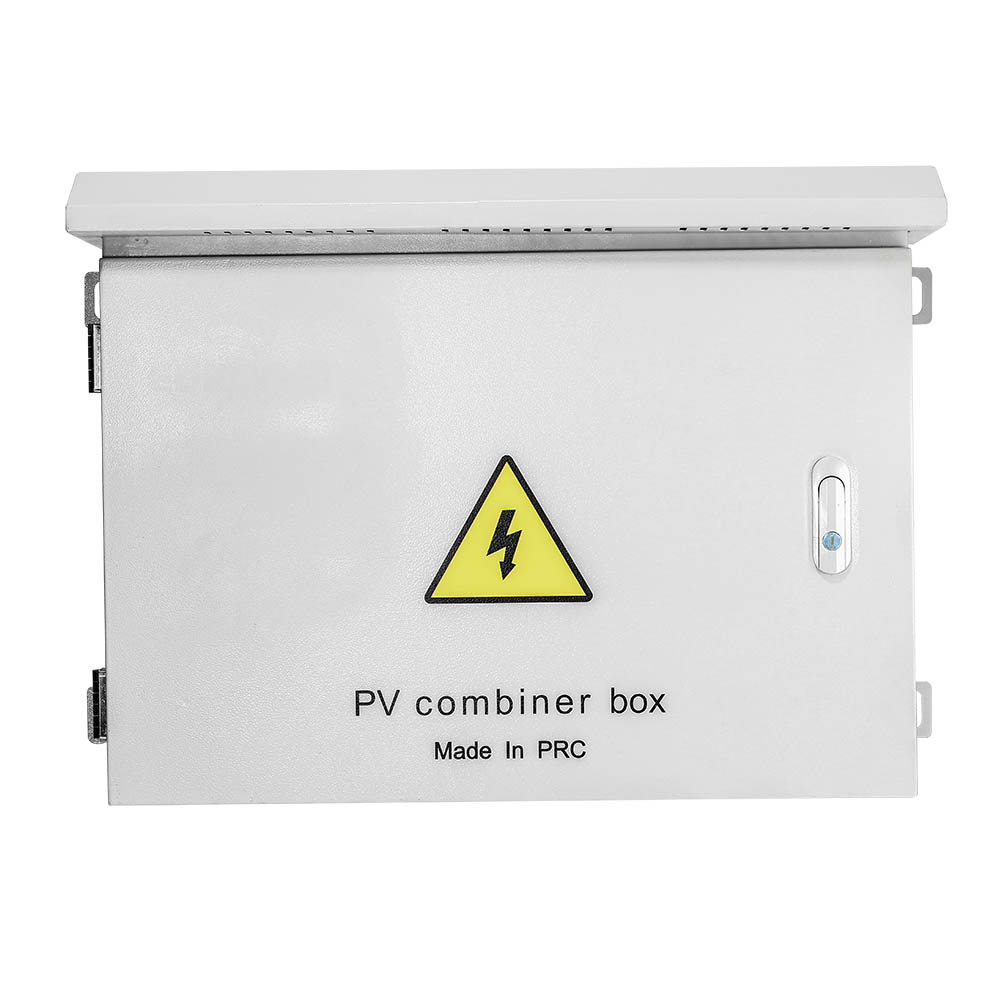

PV8/1 DC combiner box

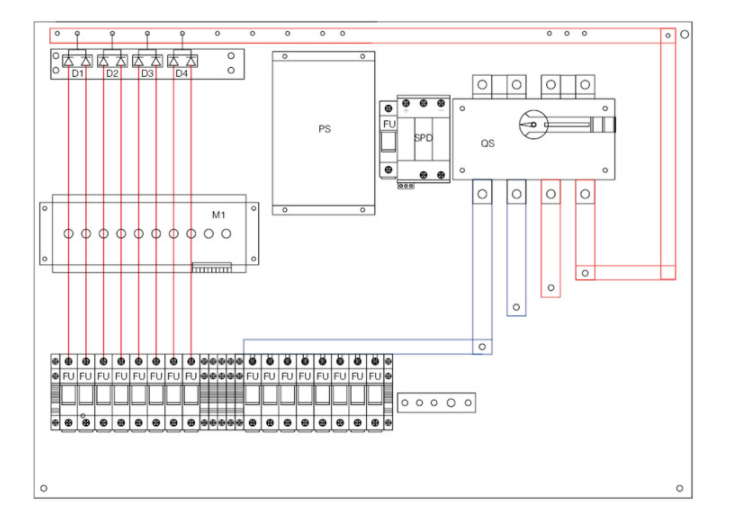

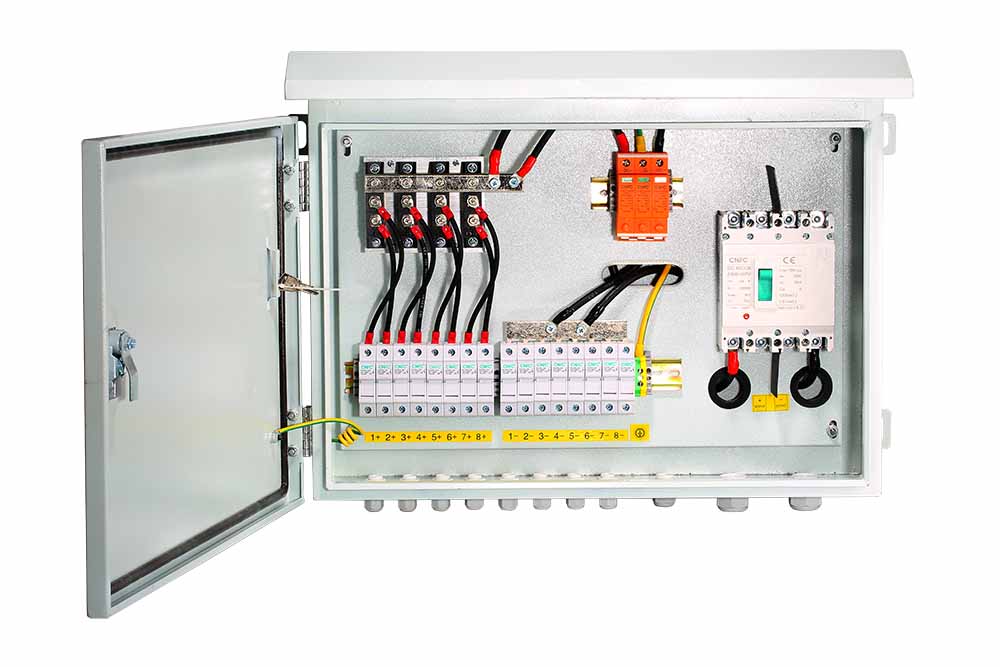

PV8/1 PV combiner box bus synthetic DC input of 8 PV components to 1 output.. Each channel is equipped with a fuse.

Lightning protection and circuit breakers are installed on the output side. This realizes not only lightning protection, short-circuits protection, and grounding protection, but also makes the input wiring of DC power distribution cabinets and inverters simpler.

There are two types of photovoltaic combiner boxes: smart boxes and non-smart boxes.

The intelligent photovoltaic combiner box is equipped with a monitoring unit. The monitoring unit is responsible for detecting the “input current”, “internal temperature”, “lightning protection status”, “circuit breaker status” and “summary output voltage” of each string.

Advantages of PV8/1 DC combiner box

  • High Reliability
  • With DC FUSE
  • With DC Surge Protection Device
  • With a DC circuit breaker or DC load isolation switch
  • It has an IP65 waterproof, dustproof, and UV-proof design.
  • Have been widely used after undergoing rigorous testing in both high and low temperatures.
  • PV8/1 DC combiner box is easy to install and easy to connect to the system
  • The box body is made of cold-rolled steel and other metal materials
  • PV8/1 DC combiner boxes are highly adaptable in configuration.

Used for single-crystal silicon solar modules, polycrystalline silicon solar modules, and thin film solar modules. The current rating of the photovoltaic fuse, circuit breaker, and load isolation switch is modified
