S-2400W series normal single switching power supply

WeHo professional 2400W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.

115/230V AC range selectable, air cooling by the built-in fan.

Filter capacitance; High withstand voltage; Low dissipation; Large capacity.

Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

td width=”99″>Impulse current

Model S-2400-24 S-2400-27 S-2400-36 S-2400-48
Output DC Output Voltage 24V 27V 36V 48V
Output Voltage Tolerance ±1% ±1% ±1% ±1%
Rated Output Current 100A 89A 67A 50A
Output Current Range 0-100A 0-89A 0-67A 0-50A
Output Power 2400W 2400W 2400W 2400W
Ripple And The Noise 240mVp-p 240mVp 240mVp-p 480mVp-p
DC Voltage Adjustable Scope +5%; By external 2~ 5V voltage control, which can adjust the output voltage of the rated voltage the in the range of 40% ~ 100% in value
Start, Rise, Keep Time 800ms, 50ms, 16ms Loaded with
Input Input Voltage Range 200V~264VAC 47~63 Hz; 290~370VDC
Exchange Input Current 11A/ 230 VAC
Efficiency 85% 85% 86% 87%
Leakage Current 3.5 mA/240VAC
Protection Characteristics Overload Protection 110%~135%
Protection way: current limiting, delay shut off, restart
High-Temperature Protection TSW1 (power tube) temperature > 100 ℃, restart when cut off output
Environment Working Temperature, Humidity -10℃ ~ +65℃, 20%~90 %RH
Keep Temperature, Humidity -20℃ ~ +85℃, 10%~95 %RH
Vibrate Resistance 10~200Hz AC, 2G 10min. / 1 cycle time, 60 minutes, the axis
Security Compression Sex I/P-O/P, I/P-FG: 1500VAC
Insulation Resistance I/P-O/P, I/P-FG, >100M Ohms / 500VDC
EMC Standard Accord with
FCC Part 15 Class A
Other Weight 5.3Kg;
Packaging 2pcs/11kg/CARTON
note 1. All the parameters in have not been specified, all are in 230 VAC voltage input, rated load, and 25 ℃ conditions measuring income value.
2. Ripple and noise voltage are in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate, and adjusting the sum total of the current rate.
4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.

WEHO was established in31/Oct/2007 and has 10 years of export experience in the industrial power supply.

All our tester machines are checked weekly by WEHO and inspected by third-party inspection departments for half a year.

WEHO’s production circle of industrial power supply is 10 days for common items.

Pure copper for transformers coils OF industrial power supply.

This product is a low-cost, high-reliability industrial power supply.

The input of industrial power supply AC 220V.

This product is covered by a 24-month warranty.

This product has built-in EMI and DC fans.

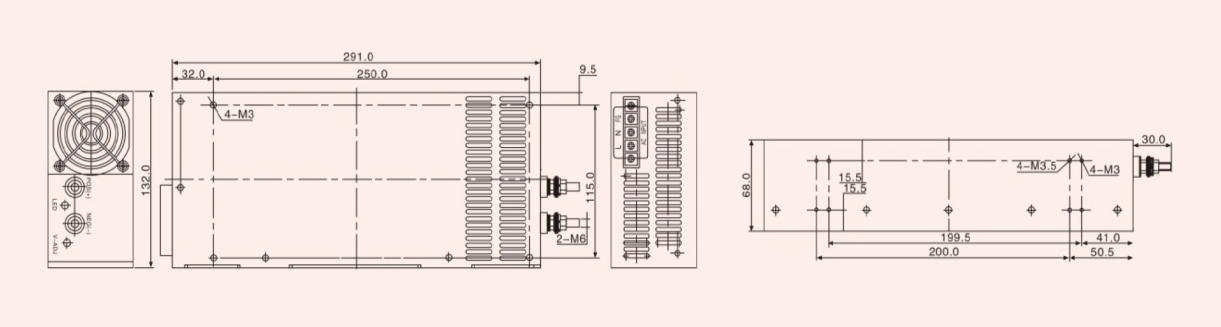

Product size: 291*132*136mm (L * W * H)
