60W power switching Dual switch output power supply daul ac-dc led power supply

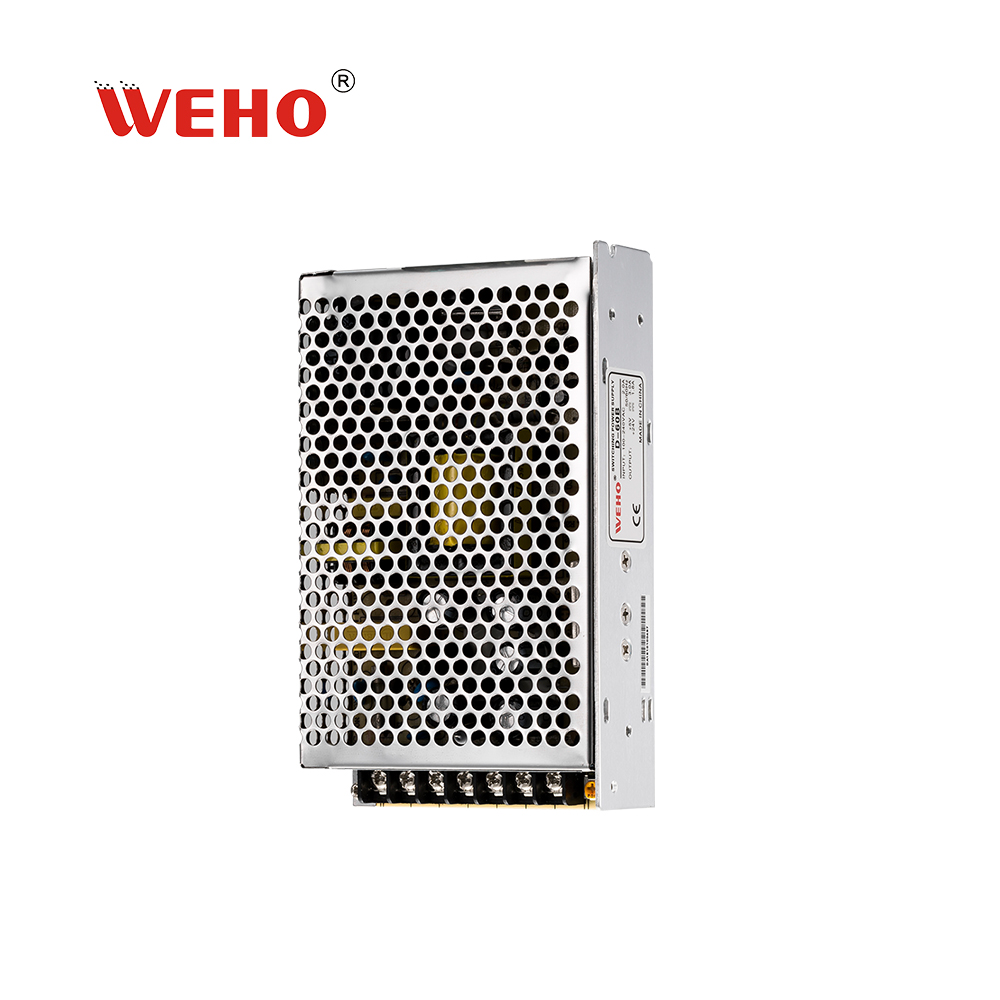

WeHo’s D-60 Series is an AC/DC multi-output Power supply which standard model that offers the most cost-effective option when multiple voltages are required.

D-60 comes in an Enclosed case in dual.

WeHo focuses on producing high-quality power adapters, and stable output.

Automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, and short circuit protection.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model D-60A D-60B
DC Output Voltage 5V 12V 5V 24V
Output Voltage Range (Note:2) ±2% ±6% ±2% ±5%
Rated Output Current 4A 3A 3A 1.8A
Output Current Range 0.3-6A 0.2-4A 0.3-6A 0.2-2.2A
Wave And Noise (Note:3) 75mVp-p 150mVp-p 75mVp-p 150mVp-p
Inlet Stability(Note:4) ±0.5% ±1% ±0.5% ±1%
Load Stability(Note:5) ±0.5% ±4% ±0.5% ±4%
DC Output Power 56W 58W
Efficiency 73% 73%
Adjustable Range For DC Voltage CH1; +10, -5% CH1; +10, -5%
AC Input Voltage Range 85~264VAC, 47~63Hz; 120~370VDC
Input Current 2A/115V 1A/230V
AC Inrush Current Cold-start current 30A//115V,60A/230V
Leakage Current <1mA/240VAC
Overload Protection 105%~150% Type: pulsing hiccup shutdown Reset: auto-recovery
Over-Voltage Protection CH1: 5.75~6.75V
Temperature Coefficient ±0.03%/°c(0~50°c)ON+5V
Setup, Rise, Hold Up Time 200ms,50ms, 20ms
Vibration 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand Voltage Input and output internal:
Input and enclosure: 1.5KvAC,
Output and enclosure: 0.5KvAC
Isolation Resistance Input and output internal:
Input and enclosure, Output and enclosure: 500VDC/100MΩ
Working Temperature And Humidity -10°c ~ +60°c (Refer to output derating curve), 20%~90%RH
Overall Dimension 159×97×38mm
Weight 0.55Kgs
Safety Standards UL 1950 TUV EN60590
EMC Standards CISPR22(EN55022)class B, IEC801-2, 3, 4 IEC555-2 Verification

The product’s operating temperature range is -10’C ~ +50’C.

Our products have CE ROHS certification to ensure quality.

We are a power supply manufacturer with 15 years of experience.

This product has a universal AC input that is full range (up to 264VAC).

Product input voltage: 90 -264VAC.

The product has completed the 100% full load aging test.

This product is both low-cost and reliable.

This product is covered by a 24-month warranty.
